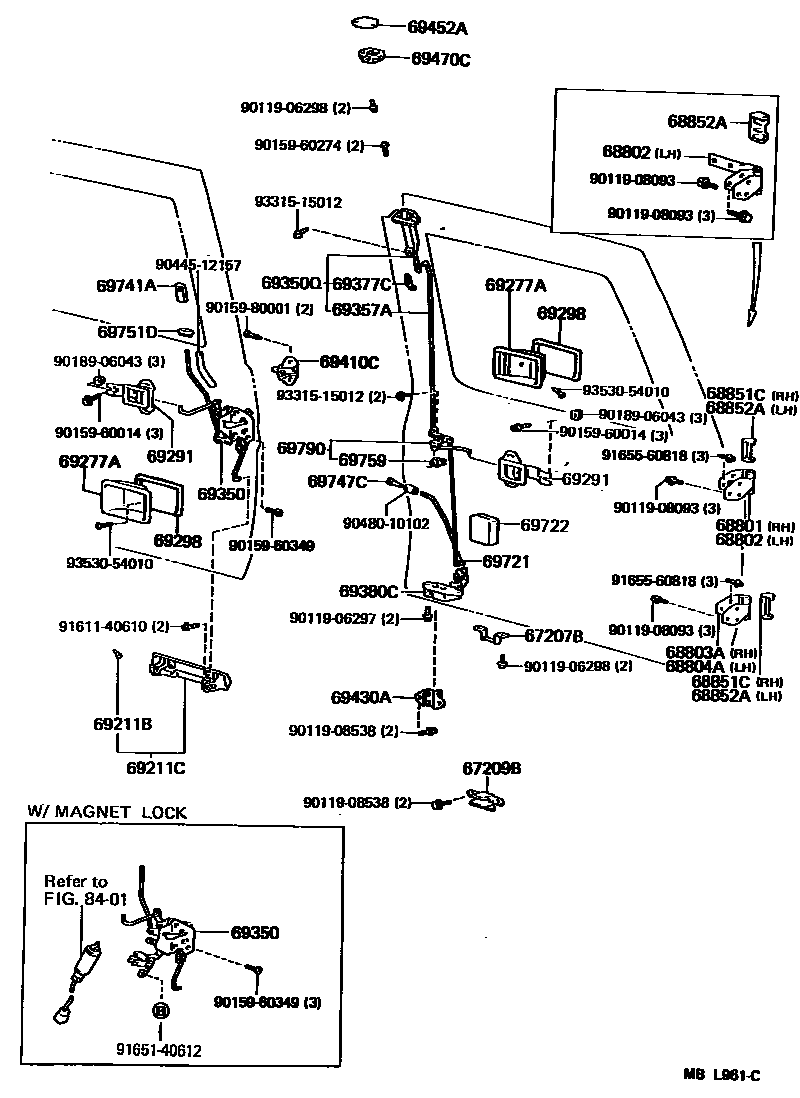

BACK DOOR LOCK & HINGE

0001 1 0002 1

67207BSTOPPER SUB-ASSY, BACK DOOR, UPPER

main67206-90K00iBJ60,FJ62,HJ60..SOB198708-199001

67209BSTOPPER SUB-ASSY, BACK DOOR, LOWER

main67208-90A01iBJ60,FJ62,HJ60..SOB198708-199001

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-90A00iBJ60,FJ62,HJ60..SOB198708-199001

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-90A00iBJ60,FJ62,HJ60..SOB198708-199001

main68802-90A01iBJ60,FJ62,HJ60..SOB..(GEN,ME)198708-199001

W(*AFT)

68803AHINGE SUB-ASSY, BACK DOOR, LOWER RH

main68803-90A00iBJ60,FJ62,HJ60..SOB198708-199001

68804AHINGE SUB-ASSY, BACK DOOR, LOWER LH

main68804-90A00iBJ60,FJ62,HJ60..SOB198708-199001

main68804-90A01iBJ60,FJ62,HJ60..SOB..(GEN,ME)198708-199001

W(*AFT)

68851CCOVER, BACK DOOR HINGE, RH

main68851-90A00iBJ60,FJ62,HJ60..SOB198708-199001

UPPER

main68852-90A00iBJ60,FJ62,HJ60..SOB198708-199001

LOWER

68852ACOVER, BACK DOOR HINGE, LH

main68851-90A00iBJ60,FJ62,HJ60..SOB198708-199001

UPPER

main68851-90A02iBJ60,FJ62,HJ60..SOB..(GEN,ME)198708-199001

W(*AFT),UPPER

main68852-90A00iBJ60,FJ62,HJ60..SOB198708-199001

LOWER

main68852-90A02iBJ60,FJ62,HJ60..SOB..(GEN,ME)198708-199001

W(*AFT),LOWER

69211BCUSHION(FOR BACK DOOR OUTSIDE HANDLE)

main90541-03021iBJ60,FJ62,HJ60..SOB198708-199001

69211CHANDLE, BACK DOOR OUTSIDE

main69210-14030iBJ60,FJ62,HJ60..SOB198708-199001

69277ABEZEL, BACK DOOR INSIDE HANDLE

main69277-16040-23iBJ60,FJ62,HJ60..SOB..(GX,VX)198708-199001

GRAY,TRIM1#

sub69277-16040

sub69277-89104

main69277-16040-36iBJ60,FJ62,HJ60..SOB198708-199001

SEPIA BROWN,TRIM4#

sub69277-16040

sub69277-89104

69291HANDLE ASSY, BACK DOOR INSIDE

main69206-20020iBJ60,FJ62,HJ60..SOB198708-199001

main69212-90A00iFJ62,HJ6#..LUB198708-199203

69298COVER, BACK DOOR INSIDE HANDLE

main69298-90A00-03iFJ62..SOB..VX198708-199001

SHADOW GRAY,TRIM1#

sub69298-90A00

main69298-90A00-06iFJ62..SOB..VX198708-199001

SEPIA BROWN,TRIM4#

sub69298-90A00

69350LOCK ASSY, BACK DOOR

main69350-90A03iFJ62,HJ6#..LUB198708-199203

main69350-90A04iFJ62..SOB..VX198708-199001

W(MAGNET LOCK)

main69350-90A05iBJ60,FJ62,HJ60..SOB..(GX,STD)198708-199001

sub69350-90A04

69350QLOCK ASSY, BACK DOOR, UPPER

main69350-90A00iBJ60,FJ62,HJ60..SOB198708-199001

69357AROD, BACK DOOR OPENING, UPPER

main69357-90A00iBJ60,FJ62,HJ60..SOB198708-199001

69377CSNAP, DOOR LOCK CONTROL ROD

main69377-90A00iBJ60,FJ62,HJ60..SOB198708-199001

69380CLOCK ASSY, BACK DOOR, LOWER

main69380-90A01iBJ60,FJ62,HJ6#198708-199203

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-12070iBJ60,FJ62,HJ60..SOB198708-199001

sub69410-90B02

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-90A00iBJ60,FJ62,HJ60..SOB198708-199001

main69430-90A01iFJ62,HJ6#..LUB198708-199203

69452APLATE, BACK DOOR UPPER LOCK STRIKER

main69452-90A00iBJ60,FJ62,HJ60..SOB198708-199001

69470CSTRIKER ASSY, BACK DOOR UPPER LOCK

main69470-90A01iBJ60,FJ62,HJ60..SOB198708-199001

69721ROD, BACK DOOR LOWER LOCK CONTROL, NO.1

main69721-90A00iBJ60,FJ62,HJ60..SOB198708-199001

69722PAD, BACK DOOR LOCK CONTROL

main69722-90A00iBJ60,FJ62,HJ6#198708-199203

69741AKNOB, BACK DOOR LOCK CONTROL

main69741-90K00-06iBJ60,FJ62,HJ60..SOB198708-199001

SEPIA BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-20020-01iBJ60,FJ62,HJ60..STD198708-199203

BLACK,TRIM4#

sub69747-20020

main69747-20020-01iBJ60,FJ62,HJ60..STD198708-199203

BLACK,TRIM1#,4#

sub69747-20020

69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)

main69079-90K00-03iBJ60,FJ62,HJ60..SOB..(GX,VX)198708-199001

SHADOW GRAY,TRIM1#

sub69079-90K00

main69079-90K00-06iBJ60,FJ62,HJ60..SOB198708-199001

SEPIA BROWN,TRIM4#

sub69079-90K00

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-12030iBJ60,FJ62,HJ60..SOB198708-199001

69790CONTROL ASSY, BACK DOOR LOCK

main69790-90A02iBJ60,FJ62,HJ60..SOB198708-199001

8401

9011906297

main90119-06297

9011906298

main90119-06298

9011908093

main90119-08093

9011908538

main90119-08538

9015960014

main90159-60014

9015960274

main90159-60274

9015960349

main90159-60349

9015980001

main90159-80001

9018906043

main90189-06043

9044512157

main90445-12157

9048010102

main90480-10102

9161140610

main91611-40610

9165140612

main91651-40612

9165560818

main91655-60818

9331515012

main93315-15012

9353054010

main93530-54010

46 parts on this diagram · 2 diagrams in section
