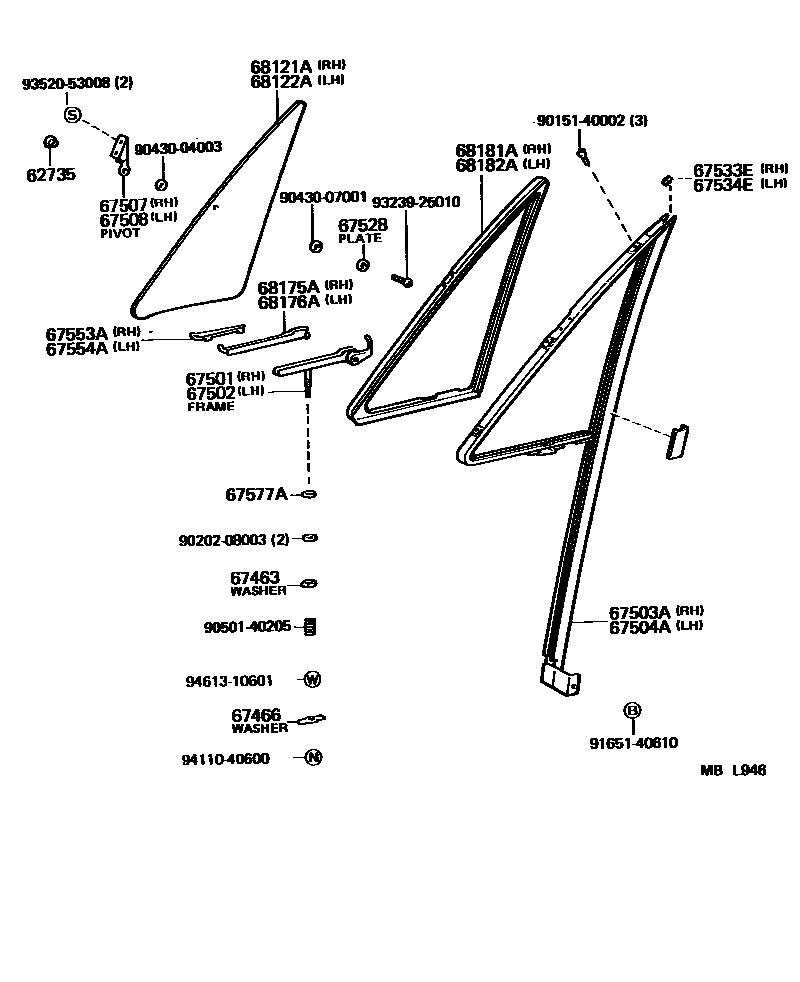

FRONT DOOR VENTILATOR WINDOW

62735RETAINER, QUARTER WINDOW HINGE

main62735-89101iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67463WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT

main67463-20011iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67466WASHER, LOCK(FOR VENT WINDOW GLASS FRAME)

main67466-89101iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67501FRAME SUB-ASSY, VENT WINDOW GLASS, RH

main67505-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67502FRAME SUB-ASSY, VENT WINDOW GLASS, LH

main67506-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67503ABAR SUB-ASSY, FRONT DOOR DIVISION, RH

main67503-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67504ABAR SUB-ASSY, FRONT DOOR DIVISION, LH

main67504-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH

main67507-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH

main67508-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67528PLATE, VENT WINDOW UPPER PIVOT

main67528-89101iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67533ESEAL, FRONT DOOR DIVISION BAR, RH

main67533-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67534ESEAL, FRONT DOOR DIVISION BAR, LH

main67534-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67553ACHANNEL, VENTILATING WINDOW DRIP, RH

main67553-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67554ACHANNEL, VENTILATING WINDOW DRIP, LH

main67554-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

67577ASTOPER, FRONT DOOR BENT WINDOW OPENING, RH

main67577-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

68121AGLASS, DOOR VENTILATING WINDOW, RH

main68121-90A00iBJ60,FJ62,HJ60..STD..GEN198708-199001

sub68121-90A01

main68121-90A01iBJ60,FJ62,HJ60..STD..GEN198708-199203

main68121-90A02iFJ62,HJ60..VX..GEN198708-199001

68122AGLASS, DOOR VENTILATING WINDOW, LH

main68122-90A00iBJ60,FJ62,HJ60..STD..GEN198708-199001

sub68122-90A01

main68122-90A01iBJ60,FJ62,HJ60..STD..GEN198708-199203

main68122-90A02iFJ62,HJ60..VX..GEN198708-199001

68175AWEATHERSTRIP, FRONT DOOR VENT WINDOW GLASS, RH

main68175-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

68176AWEATHERSTRIP, DOOR VENT WINDOW GLASS, LH

main68176-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

68181AWEATHERSTRIP, FRONT DOOR VENT WINDOW, RH

main68181-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

68182AWEATHERSTRIP, DOOR VENT WINDOW, LH

main68182-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

9015140002

main90151-40002

9020208003

main90202-08003

9043004003

main90430-04003

9043007001

main90430-07001

9050140205

main90501-40205

9165140610

main91651-40610

9323925010

main93239-25010

9352053008

main93520-53008

9411040600

main94110-40600

9461310601

main94613-10601

31 parts on this diagram · 1 diagram in section
