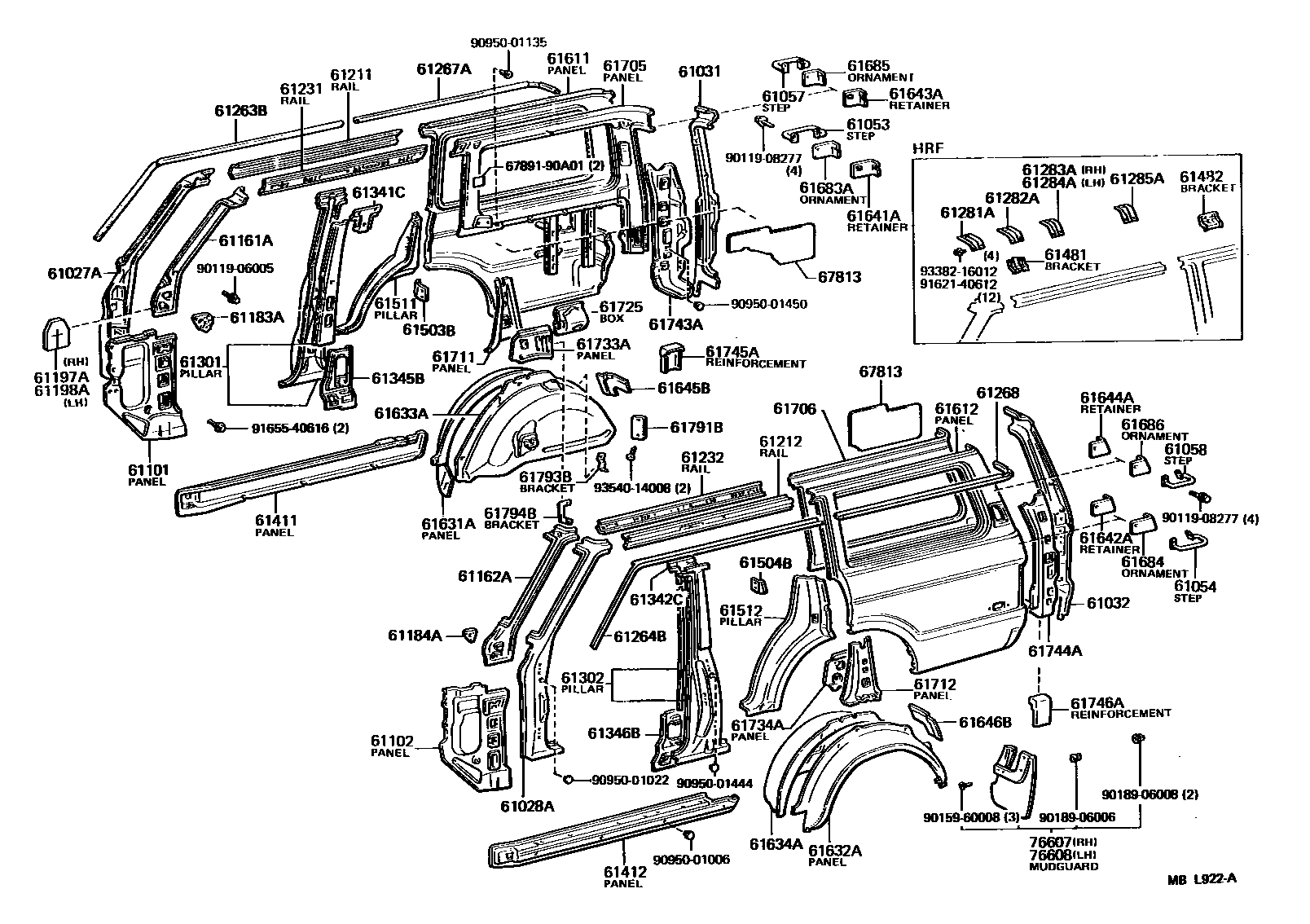

SIDE MEMBER
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
W(*STAC)
W(*SNR)
W(*STAC & *SNR)
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
W(SUN ROOF)
61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH
W(MAGNET LOCK)
61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH
61053STEP SUB-ASSY, QUARTER PANEL, NO.1 RH
61054STEP SUB-ASSY, QUARTER PANEL, NO.1 LH
61057STEP SUB-ASSY, QUARTER PANEL, NO.2 RH
61058STEP SUB-ASSY, QUARTER PANEL, NO.2 LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61161APILLAR, FRONT BODY, INNER RH
61162APILLAR, FRONT BODY, INNER LH
61183ABRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61184ABRACKET, INSTRUMENT PANEL SIDE, NO.2 LH
61197ACOVER, FRONT PILLAR, RH
61198ACOVER, FRONT PILLAR, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264BCHANNEL, ROOF DRIP SIDE, FRONT LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
main61283-90A00iHJ6#..HRF;FJ62..5F..HRF..LUB;FJ62..5F..HRF..VX..ME;FJ62..LHD..(4F,4FC)..HRF..(GX,VX)198708-199001
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
main61283-90A00iHJ6#..HRF;FJ62..5F..HRF..LUB;FJ62..5F..HRF..VX..ME;FJ62..LHD..(4F,4FC)..HRF..(GX,VX)198708-199001
61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4
61341CPILLAR, CENTER BODY, INNER UPPER RH
61342CPILLAR, CENTER BODY, INNER UPPER LH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61481BRACKET, ROOF SIDE RAIL REINFORCE, NO.1
FR
W(RADIO)
RR
W(*SNR)
61482BRACKET, ROOF SIDE RAIL REINFORCE, NO.2
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61611PANEL, QUARTER, RH
main61611-90A18iHJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN)198708-199203
W(OVER FENDER)
61612PANEL, QUARTER, LH
main61612-90A15iHJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN)198708-199203
W(OVER FENDER)
*SA & W(ROOF RACK)
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-90A04iBJ60,HJ60;FJ62..STD;FJ62..SRF..SOB..VX;FJ62..HRF..GX..GEN;FJ62,HJ61..SRF..LUB;FJ62..SRF..SOB..GX..GEN198708-199203
W(PARALLEL SEAT)
W(TRANSVERSE SEAT)
W(PARALLEL SEAT)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-90A00iBJ60,HJ60;FJ62..STD;FJ62..SRF..SOB..VX;FJ62..HRF..GX..GEN;FJ62,HJ61..SRF..LUB;FJ62..SRF..SOB..GX..GEN198708-199203
W(PARALLEL SEAT)
W(TRANSVERSE SEAT)
W(PARALLEL SEAT)
61641ARETAINER, QUARTER PANEL STEP, NO.1 RH
61642ARETAINER, QUARTER PANEL STEP, NO.1 LH
61643ARETAINER, QUARTER PANEL STOP, NO.2 RH
61644ARETAINER, QUARTER PANEL STEP, NO.2 LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61683AORNAMENT, QUARTER PANEL STEP, NO.1 RH
61684ORNAMENT, QUARTER PANEL STEP, NO.1 LH
61685ORNAMENT, QUARTER PANEL STEP, NO.2 RH
61686ORNAMENT, QUARTER PANEL STEP, NO.2 LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
W(ROOF CARRIER)
W(ROOF CARRIER & PARALLEL SEAT)
W(ROOF CARRIER & DUAL AIR CONDITIONER)
sub61705-90A36
W(DUAL AIR CONDITIONER)
W(TRANSVERSE SEAT & DUAL AIR CONDITIONER)
W(DUAL AIR CONDITIONER)
W(ROOF CARRIER & DUAL AIR CONDITIONER)
main61705-90A40iFJ62..STD;FJ62..SRF..LUB;BJ60,HJ6#..SRF;FJ62..SRF..SOB..VX;FJ62..SOB..GX..GEN198708-199203
sub61705-90A30
main61705-90A41iHJ6#..SRF..LUB;FJ62..5F..LUB..VX..ME;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN)198708-199203
W(DUAL AIR CONDITIONER)
sub61705-90A32
W(DUAL AIR CONDITIONER)
sub61705-90A37
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
main61706-90A49iFJ62..HRF..SOB..GEN;BJ60,HJ6#..SRF..(GX,STD);FJ62..SRF..SOB..(STD,VX)..ME;FJ62..SRF..(GX,STD)..(ARL,GEN)198708-199203
sub61706-90A66
W(PARALLEL SEAT)
W(PARALLEL SEAT) OR W(DUAL AIR CONDITIONER)
sub61706-90A70
sub61706-90A68
W(ROOF CARRIER)
W(ROOF CARRIER & *RWD)
W(*RWD)
W(TRANSVERSE SEAT & *RWD)
W(*RWD)
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61725BOX, FUEL INLET
main61709-90A01iHJ61..GX;BJ60,HJ60;FJ62..STD..ME;FJ62..SRF..(ARL,GEN);FJ62..HRF..(GX,STD)..(ARL,GEN)198708-199203
main61709-90A02iHJ61..GX;BJ60,HJ60;FJ62..STD..ME;FJ62..SRF..(ARL,GEN);FJ62..HRF..(GX,STD)..(ARL,GEN)198708-199203
W(FUEL LID OPENER)
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61793BBRACKET, COOLER CONDENSER, NO.1
main61793-90A00iHJ6#..LUB;FJ62..5F..VX..ME;FJ62..(4F,4FC)..LUB;FJ62..4F..SRF..SOB..GX;FJ62..(4F,4FC)..HRF..SOB;FJ62..5F..(GX,VX)..(ARL,GEN)198708-199203
61794BBRACKET, COOLER CONDENSER, NO.2
67813PAD, QUARTER PANEL SILENCER
RH
LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76607-90A01iHJ60..LUB..GEN;FJ62,HJ61..5F..GX..(ARL,GEN);FJ62,HJ61..(4F,4FC)..(GX,VX)..(ARL,GEN)198708-199203
W(OVER FENDER)
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
W(OVER FENDER)
6789190A01WEATHERSTRIP, REAR DOOR PANEL
main67891-90A01
9011906005
main90119-06005
9011908277
main90119-08277
9015960008
main90159-60008
9018906006
main90189-06006
9018906008
main90189-06008
9095001006
main90950-01006
9095001022
main90950-01022
9095001135
main90950-01135
9095001444
main90950-01444
9095001450
main90950-01450
9162140612
main91621-40612
9165540616
main91655-40616
9338216012
main93382-16012
9354014008
main93540-14008
91 parts on this diagram · 2 diagrams in section
