EPC Data

FLOOR MAT & SILENCER PAD

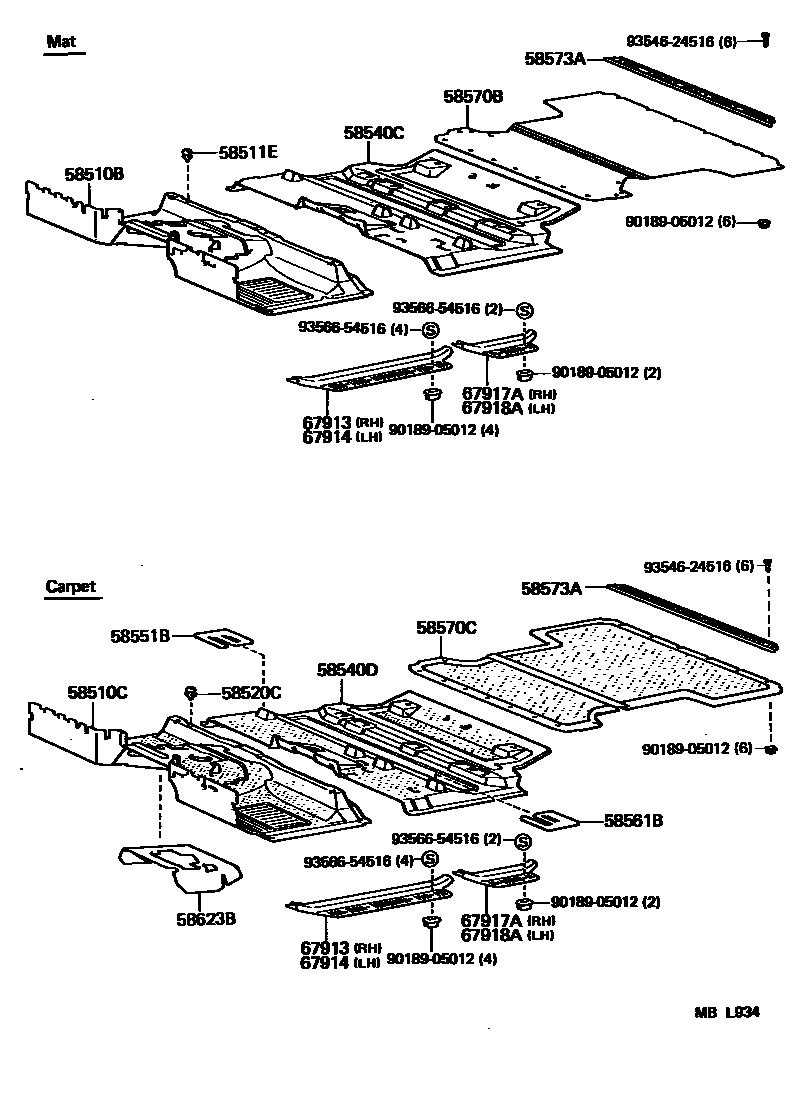

Parts diagram
58510BMAT, FRONT FLOOR, FRONT
main58510-90A76-06i198708-199001
SEPIA BROWN,TRIM4#
main58510-90A77-06i198708-199001
SEPIA BROWN,TRIM4#
main58510-90A78-06i198708-199001
W(WINCH),SEPIA BROWN,TRIM4#
main58510-90A79-06i198708-199001
W(WINCH),SEPIA BROWN,TRIM4#
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-90A82-03i198708-199001
W(WINCH),SHADOW GRAY,TRIM1#
sub58510-90A82
main58510-90A82-06i198708-199001
W(WINCH),SEPIA BROWN,TRIM4#
sub58510-90A82
main58510-90A85-03i198708-199203
SHADOW GRAY,TRIM1#
sub58510-90A85
main58510-90A85-06i198708-199203
SEPIA BROWN,TRIM4#
sub58510-90A85
main58510-90A87-03i198708-199203
W(WINCH),SHADOW GRAY,TRIM1#
main58510-90A87-06i198708-199203
W(WINCH),SEPIA BROWN,TRIM4#
main58510-90A88-03i198708-199001
SHADOW GRAY,TRIM1#
main58510-90A88-06i198708-199001
DARK BROWN,TRIM4#
main58510-90A89-03i198708-199001
W(WINCH),SHADOW GRAY,TRIM1#
main58510-90A89-06i198708-199001
W(WINCH),DARK BROWN,TRIM4#
main58510-90A90-03i198708-199001
SHADOW GRAY,TRIM1#
main58510-90A90-06i198708-199001
DARK BROWN,TRIM4#
main58510-90A91-03i198708-199001
W(WINCH),SHADOW GRAY,TRIM1#
main58510-90A91-06i198708-199001
W(WINCH),DARK BROWN,TRIM4#
main58510-90G00-03i198708-199001
SHADOW GRAY,TRIM1#
sub58510-90G00
main58510-90G00-06i198708-199001
SEPIA BROWN,TRIM4#
sub58510-90G00
main58510-90G05-03i198708-199001
SHADOW GRAY,TRIM1#
sub58510-90G05
main58510-90G05-06i198708-199001
SEPIA BROWN,TRIM4#
sub58510-90G05
main58510-90G06-03i198708-199203
SHADOW GRAY,TRIM1#
sub58510-90G06
main58510-90G06-06i198708-199203
SEPIA BROWN,TRIM4#
sub58510-90G06
main58510-90G07-03i198708-199203
W(WINCH),SHADOW GRAY,TRIM1#
sub58510-90G07
main58510-90G07-06i198708-199203
W(WINCH),SEPIA BROWN,TRIM4#
sub58510-90G07
main58510-90G21-03i198708-199001
SHADOW GRAY,TRIM1#
main58510-90G21-06i198708-199001
SEPIA BROWN,TRIM4#
main58510-90G23-03i198708-199001
SHADOW GRAY,TRIM1#
main58510-90G23-06i198708-199001
SEPIA BROWN,TRIM4#
main58510-90G25-03i198808-199001
SHADOW GRAY,TRIM1#
main58510-90G25-06i198808-199001
SEPIA BROWN,TRIM4#
main58510-90G26-03i198808-199001
W(*SUS),SHADOW GRAY,TRIM1#
main58510-90G26-06i198808-199001
W(*SUS),SEPIA BROWN,TRIM4#
main58510-90G27-03i198808-199001
SHADOW GRAY,TRIM1#
main58510-90G27-06i198808-199001
SEPIA BROWN,TRIM4#
58511ECLIP(FOR FRONT FLOOR MAT)
main90467-12035-03i198708-199203
SHADOW GRAY,TRIM1#
sub90467-12035
main90467-12035-06i198708-199203
SEPIA BROWN,TRIM4#
sub90467-12035
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-12035-03i198708-199203
SHADOW GRAY,TRIM1#
sub90467-12035
main90467-12035-06i198708-199203
SEPIA BROWN,TRIM4#
sub90467-12035
58540CMAT ASSY, FLOOR, REAR
main58540-90A76-06i198708-199001
SEPIA BROWN,TRIM4#
main58540-90A77-06i198708-199001
SEPIA BROWN,TRIM4#
main58540-90A78-06i198708-199001
W(FRONT SEPARATE SEAT),SEPIA BROWN,TRIM4#
main58540-90A79-06i198708-199001
W(FRONT SEPARATE SEAT),SEPIA BROWN,TRIM4#
main58540-90A92-06i198708-199001
W(SEPARATE FRONT SEAT & TRANSVERSE 3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90A93-06i198708-199001
W(TRANSVERSE 3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90G00-06i198708-199001
W/O(REAR SEAT),SEPIA BROWN,TRIM4#
main58540-90G00-06i198808-199001
W/O(REAR SEAT) & W(REAR HEATER),SEPIA BROWN,TRIM4#
main58540-90G19-06i198708-199001
W/O(REAR SEAT),SEPIA BROWN,TRIM4#
58540DCARPET ASSY, FLOOR, REAR
main58540-90A80-03i198708-199001
SHADOW GRAY,TRIM1#
sub58540-90A80
main58540-90A80-06i198708-199001
SEPIA BROWN,TRIM4#
sub58540-90A80
main58540-90A81-03i198708-199203
SHADOW GRAY,TRIM1#
sub58540-90A81
main58540-90A81-06i198708-199203
SEPIA BROWN,TRIM4#
sub58540-90A81
main58540-90A82-03i198708-199001
W(SEPARATE FRONT SEAT),SHADOW GRAY,TRIM1#
main58540-90A82-06i198708-199001
W(SEPARATE FRONT SEAT),SEPIA BROWN,TRIM4#
main58540-90A83-03i198708-199001
W(SEPARATE FRONT SEAT),SHADOW GRAY,TRIM1#
sub58540-90A83
main58540-90A83-03i198708-199001
SHADOW GRAY,TRIM1#
sub58540-90A83
main58540-90A83-06i198708-199001
W(SEPARATE FRONT SEAT),SEPIA BROWN,TRIM4#
sub58540-90A83
main58540-90A83-06i198708-199001
SEPIA BROWN,TRIM4#
sub58540-90A83
main58540-90A84-03i198708-199001
W(REAR HEATER),SHADOW GRAY,TRIM1#
main58540-90A84-06i198708-199001
W(REAR HEATER),SEPIA BROWN,TRIM4#
main58540-90A85-03i198708-199203
W(REAR HEATER),SHADOW GRAY,TRIM1#
sub58540-90A85
main58540-90A85-06i198708-199203
W(REAR HEATER),SEPIA BROWN,TRIM4#
sub58540-90A85
main58540-90A86-03i198708-199001
W(SEPARATE FRONT SEAT) & W/O(3RD SEAT),SHADOW GRAY,TRIM1#
main58540-90A86-03i198708-198808
SHADOW GRAY,TRIM1#
main58540-90A86-06i198708-199001
W(SEPARATE FRONT SEAT) & W/O(3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90A86-06i198708-198808
SEPIA BROWN,TRIM4#
main58540-90A87-03i198708-199001
W(SEPARATE FRONT SEAT & SEPARATE REAR SEAT),SHADOW GRAY,TRIM1#
main58540-90A87-03i198708-199001
W(SEPARATE FRONT SEAT & TRANSVERSE 3RD SEAT),SHADOW GRAY,TRIM1#
main58540-90A87-03i198708-199203
W(SEPARATE FRONT SEAT) & W/O(3RD SEAT),SHADOW GRAY,TRIM1#
main58540-90A87-06i198708-199001
W(SEPARATE FRONT SEAT & TRANSVERSE 3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90A87-06i198708-199001
W(SEPARATE FRONT SEAT & SEPARATE REAR SEAT),SEPIA BROWN,TRIM4#
main58540-90A87-06i198708-199203
W(SEPARATE FRONT SEAT) & W/O(3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90A88-03i198708-199203
W(SEPARATE SEAT & REAR HEATER),SHADOW GRAY,TRIM1#
main58540-90A88-06i198708-199203
W(SEPARATE SEAT & REAR HEATER),SEPIA BROWN,TRIM4#
main58540-90A89-03i198708-199001
W(SEPARATE REAR SEAT),SHADOW GRAY,TRIM1#
main58540-90A89-03i198708-199001
W(SEPARATE SEAT),SHADOW GRAY,TRIM1#
main58540-90A89-03i198708-199203
W/O(3RD SEAT),SHADOW GRAY,TRIM1#
main58540-90A89-06i198708-199001
W(SEPARATE REAR SEAT),SEPIA BROWN,TRIM4#
main58540-90A89-06i198708-199001
W(TRANSVERSE 3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90A89-06i198708-199203
W/O(3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90A94-03i198708-199001
W/O(REAR SEAT),SHADOW GRAY,TRIM1#
main58540-90A94-06i198708-199001
W/O(REAR SEAT),SEPIA BROWN,TRIM4#
main58540-90A95-03i198708-199001
SHADOW GRAY,TRIM1#
main58540-90A95-06i198708-199001
DARK BROWN,TRIM4#
main58540-90G01-03i198708-199001
W(SEPARATE SUSPENSION FRONT SEAT),SHADOW GRAY,TRIM1#
main58540-90G01-06i198708-199001
W(SEPARATE SUSPENSION FRONT SEAT),SEPIA BROWN,TRIM4#
main58540-90G02-03i198708-199001
W(SEPARATE SUSPENSION FRONT SEAT) & W/O(3RD SEAT),SHADOW GRAY,TRIM1#
main58540-90G02-03i198708-198808
W(SEPARATE SUSPENSION FRONT SEAT),SHADOW GRAY,TRIM1#
main58540-90G02-06i198708-199001
W(SEPARATE SUSPENSION FRONT SEAT) & W/O(3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90G02-06i198708-198808
W(SEPARATE SUSPENSION FRONT SEAT),SEPIA BROWN,TRIM4#
main58540-90G03-03i198708-199001
W(SEPARATE FRONT SEAT),SHADOW GRAY,TRIM1#
sub58540-90G03
main58540-90G03-06i198708-199001
DARK BROWN,TRIM4#
sub58540-90G03
main58540-90G04-03i198708-199203
W(SEPARATE SUSPENSION FRONT SEAT),SHADOW GRAY,TRIM1#
sub58540-90G04
main58540-90G04-06i198708-199203
W(SEPARATE SUSPENSION FRONT SEAT),DARK BROWN,TRIM4#
sub58540-90G04
main58540-90G05-03i198708-199001
W(SEPARATE SUSPENSION FRONT SEAT & SEPARATE REAR SEAT),SHADOW GRAY,TRIM1#
main58540-90G05-03i198708-199203
W(SEPARATE SUSPENSION FRONT SEAT) & W/O(3RD SEAT),SHADOW GRAY,TRIM1#
main58540-90G05-03i198708-199001
W(SEPARATE SUSPENSION FRONT SEAT & TRANSVERSE 3RD SEAT),SHADOW GRAY,TRIM1#
main58540-90G05-06i198708-199203
W(SEPARATE SUSPENSION FRONT SEAT) & W/O(3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90G05-06i198708-199001
W(SEPARATE SUSPENSION FRONT SEAT & TRANSVERSE 3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90G05-06i198708-199001
W(SEPARATE SUSPENSION FRONT SEAT & SEPARATE REAR SEAT),SEPIA BROWN,TRIM4#
main58540-90G06-03i198708-199001
W(SEPARATE FRONT SEAT),SHADOW GRAY,TRIM1#
main58540-90G06-06i198708-199001
W(SEPARATE FRONT SEAT),DARK BROWN,TRIM4#
main58540-90G25-03i198708-199001
W(SEPARATE SEAT & REAR HEATER),SHADOW GRAY,TRIM1#
main58540-90G25-06i198708-199001
W(SEPARATE SEAT & REAR HEATER),SEPIA BROWN,TRIM4#
main58540-90G27-03i198708-199001
W/O(3RD SEAT),SHADOW GRAY,TRIM1#
main58540-90G27-06i198708-199001
W/O(3RD SEAT),SEPIA BROWN,TRIM4#
main58540-90G29-03i198708-199001
SHADOW GRAY,TRIM1#
main58540-90G29-06i198708-199001
SEPIA BROWN,TRIM4#
main58540-90G30-03i198808-199001
W(SEPARATE FRONT SEAT),SHADOW GRAY,TRIM1#
main58540-90G30-03i198708-199001
W(SEPARATE FRONT SEAT & FR+RR HEATER),SHADOW GRAY,TRIM1#
main58540-90G30-06i198808-199001
W(SEPARATE FRONT SEAT),SEPIA BROWN,TRIM4#
main58540-90G30-06i198708-199001
W(SEPARATE FRONT SEAT & FR+RR HEATER),SEPIA BROWN,TRIM4#
58551BCARPET, FRONT FLOOR SIDE, RH
main58551-90A00-03i198708-199001
SHADOW GRAY,TRIM1#
main58551-90A00-03i198708-199001
W(SEPARATE FRONT SEAT),SHADOW GRAY,TRIM1#
main58551-90A00-06i198708-199001
W(SEPARATE FRONT SEAT),DARK BROWN,TRIM4#
main58551-90A00-06i198708-199001
DARK BROWN,TRIM4#
main58551-90A01-03i198708-199203
SHADOW GRAY,TRIM1#
sub58551-90A01
main58551-90A01-06i198708-199203
DARK BROWN,TRIM4#
sub58551-90A01
main58551-90A03-03i198708-199001
W(REAR HEATER),SHADOW GRAY,TRIM1#
main58551-90A03-03i198808-199001
SHADOW GRAY,TRIM1#
main58551-90A03-06i198808-199001
SEPIA BROWN,TRIM4#
main58551-90A03-06i198708-199001
W(REAR HEATER),SEPIA BROWN,TRIM4#
58561BCARPET, FRONT FLOOR SIDE, LH
main58561-90A00-03i198708-199001
SHADOW GRAY,TRIM1#
main58561-90A00-03i198708-199001
W(SEPARATE FRONT SEAT),SHADOW GRAY,TRIM1#
main58561-90A00-06i198708-199001
W(SEPARATE FRONT SEAT),DARK BROWN,TRIM4#
main58561-90A00-06i198708-199001
DARK BROWN,TRIM4#
main58561-90A01-03i198708-199203
SHADOW GRAY,TRIM1#
main58561-90A01-06i198708-199203
DARK BROWN,TRIM4#
main58561-90A03-03i198808-199001
SHADOW GRAY,TRIM1#
main58561-90A03-03i198708-199001
W(SEPARATE FRONT SEAT & FR+RR HEATER),SHADOW GRAY,TRIM1#
main58561-90A03-06i198808-199001
SEPIA BROWN,TRIM4#
main58561-90A03-06i198708-199001
W(SEPARATE FRONT SEAT & FR+RR HEATER),SEPIA BROWN,TRIM4#
58570BMAT ASSY, REAR FLOOR
main58581-90A04-06i198708-199001
W(TRANSVERSE SEAT & AIR CONDITIONER),SEPIA BROWN,TRIM4#
main58581-90A05-06i198708-199001
W(TRANSVERSE SEAT),SEPIA BROWN,TRIM4#
main58581-90A07-06i198708-199001
SEPIA BROWN,TRIM4#
main58581-90A08-06i198708-199001
SEPIA BROWN,TRIM4#
main58581-90A09-06i198708-199001
W/O(REAR SEAT),SEPIA BROWN,TRIM4#
main58581-90A15-06i198708-199001
W(PARALLEL SEAT & AIR CONDITIONER),SEPIA BROWN,TRIM4#
sub58581-90A16
main58581-90A16-06i198808-199001
W(PARALLEL SEAT),SEPIA BROWN,TRIM4#
58570CCARPET ASSY, REAR FLOOR
main58570-90A17-03i198708-198808
W(AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58570-90A17-03i198708-199001
W(TRANVERSE SEAT & AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58570-90A17-06i198708-198808
W(AIR CONDITIONER),SEPIA BROWN,TRIM4#
main58570-90A17-06i198708-199001
W(TRANVERSE SEAT & AIR CONDITIONER),SEPIA BROWN,TRIM4#
main58570-90A18-03i198708-199001
W(TRANVERSE SEAT),SHADOW GRAY,TRIM1#
main58570-90A18-03i198708-198808
SHADOW GRAY,TRIM1#
main58570-90A18-06i198708-198808
SEPIA BROWN,TRIM4#
main58570-90A18-06i198708-199001
W(TRANVERSE SEAT),SEPIA BROWN,TRIM4#
main58570-90A19-03i198708-199001
W(AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58570-90A19-06i198708-199001
W(AIR CONDITIONER),DARK BROWN,TRIM4#
main58570-90A20-03i198708-199001
SHADOW GRAY,TRIM1#
main58570-90A20-06i198708-199001
DARK BROWN,TRIM4#
main58570-90A23-03i198708-199001
W(AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58570-90A23-06i198708-199001
W(AIR CONDITIONER),DARK BROWN,TRIM4#
main58570-90A24-03i198708-199001
SHADOW GRAY,TRIM1#
sub58570-90A24
main58570-90A24-06i198708-199001
DARK BROWN,TRIM4#
sub58570-90A24
main58570-90A25-03i198708-199001
W(AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58570-90A25-06i198708-199001
W(AIR CONDITIONER),SEPIA BROWN,TRIM4#
main58570-90A26-03i198708-199203
W(AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58570-90A26-06i198708-199203
W(AIR CONDITIONER),SEPIA BROWN,TRIM4#
main58570-90A27-03i198708-199001
SHADOW GRAY,TRIM1#
sub58570-90A27
main58570-90A27-06i198708-199001
SEPIA BROWN,TRIM4#
sub58570-90A27
main58570-90A28i199001-199203
main58570-90A28-03i198708-199001
SHADOW GRAY,TRIM1#
sub58570-90A28
main58570-90A28-06i198708-199001
SEPIA BROWN,TRIM4#
sub58570-90A28
main58570-90A29-03i198708-199001
W/O(REAR SEAT),SHADOW GRAY,TRIM1#
main58570-90A29-06i198708-199001
W/O(REAR SEAT),SEPIA BROWN,TRIM4#
main58570-90A35-03i198708-199001
W(PARALLEL SEAT),SHADOW GRAY,TRIM4#
main58570-90A35-06i198708-199001
W(PARALLEL SEAT),SEPIA BROWN,TRIM4#
main58570-90A36-03i198708-199001
W(PARALLEL SEAT & AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58570-90A36-06i198708-199001
W(PARALLEL SEAT & AIR CONDITIONER),SEPIA BROWN,TRIM4#
main58570-90A37-03i198708-199001
W(PARALLEL SEAT),SHADOW GRAY,TRIM1#
main58570-90A37-06i198708-199001
W(PARALLEL SEAT),SEPIA BROWN,TRIM4#
main58570-90A38-03i198708-199001
W(PARALLEL SEAT & AIR CONDITIONER),SHADOW GRAY,TRIM1#
sub58570-90A38
main58570-90A38-06i198708-199001
W(PARALLEL SEAT & AIR CONDITIONER),SEPIA BROWN,TRIM4#
sub58570-90A38
main58570-90A40-03i198708-199001
SHADOW GRAY,TRIM1#
main58570-90A40-03i198708-199001
W(PARALLEL SEAT),SHADOW GRAY,TRIM1#
main58570-90A40-06i198708-199001
W(PARALLEL SEAT),SEPIA BROWN,TRIM4#
main58570-90A40-06i198708-199001
SEPIA BROWN,TRIM4#
main58570-90A41-03i198708-199203
W/O(3RD SEAT),SHADOW GRAY,TRIM1#
main58570-90A41-06i198708-199203
W/O(3RD SEAT),SEPIA BROWN,TRIM4#
main58570-90A42-03i198708-199203
W/O(3RD SEAT) & W(AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58570-90A42-06i198708-199203
W/O(3RD SEAT) & W(AIR CONDITIONER),SEPIA BROWN,TRIM4#
main58570-90A43-03i198708-199001
SHADOW GRAY,TRIM1#
main58570-90A43-06i198708-199001
SEPIA BROWN,TRIM4#
main58570-90A44-03i198708-199001
W(AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58570-90A44-06i198708-199001
W(AIR CONDITIONER),SEPIA BROWN,TRIM4#
58573APLATE, REAR FLOOR MAT SUPPORT
main58573-90A00i198708-199203
58623BPAD, FRONT FLOOR SILENCER, CENTER
main58623-90A00i198708-199001
67913PLATE, FRONT DOOR SCUFF, RH
main67913-90A00-03i199001-199203
GRAY
sub67913-90A00
main67913-90A00-03i198708-199001
GRAY,TRIM1#
sub67913-90A00
main67913-90A00-16i199001-199203
SEPIA BROWN
sub67913-90A00
main67913-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub67913-90A00
67914PLATE, FRONT DOOR SCUFF, LH
main67913-90A00-03i199001-199203
GRAY
sub67913-90A00
main67913-90A00-03i198708-199001
GRAY,TRIM1#
sub67913-90A00
main67913-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub67913-90A00
main67913-90A00-16i199001-199203
SEPIA BROWN
sub67913-90A00
67917APLATE, REAR DOOR SCUFF, RH
main67917-90A00-03i198708-199203
GRAY,TRIM1#
sub67917-90A00
main67917-90A00-16i198708-199203
SEPIA BROWN,TRIM4#
sub67917-90A00
67918APLATE, REAR DOOR SCUFF, LH
main67917-90A00-03i198708-199203
GRAY,TRIM1#
sub67917-90A00
main67917-90A00-16i198708-199203
SEPIA BROWN,TRIM4#
sub67917-90A00
9018905012
main90189-05012
9354624516
main93546-24516
9356654516
main93566-54516

19 parts on this diagram · 2 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
