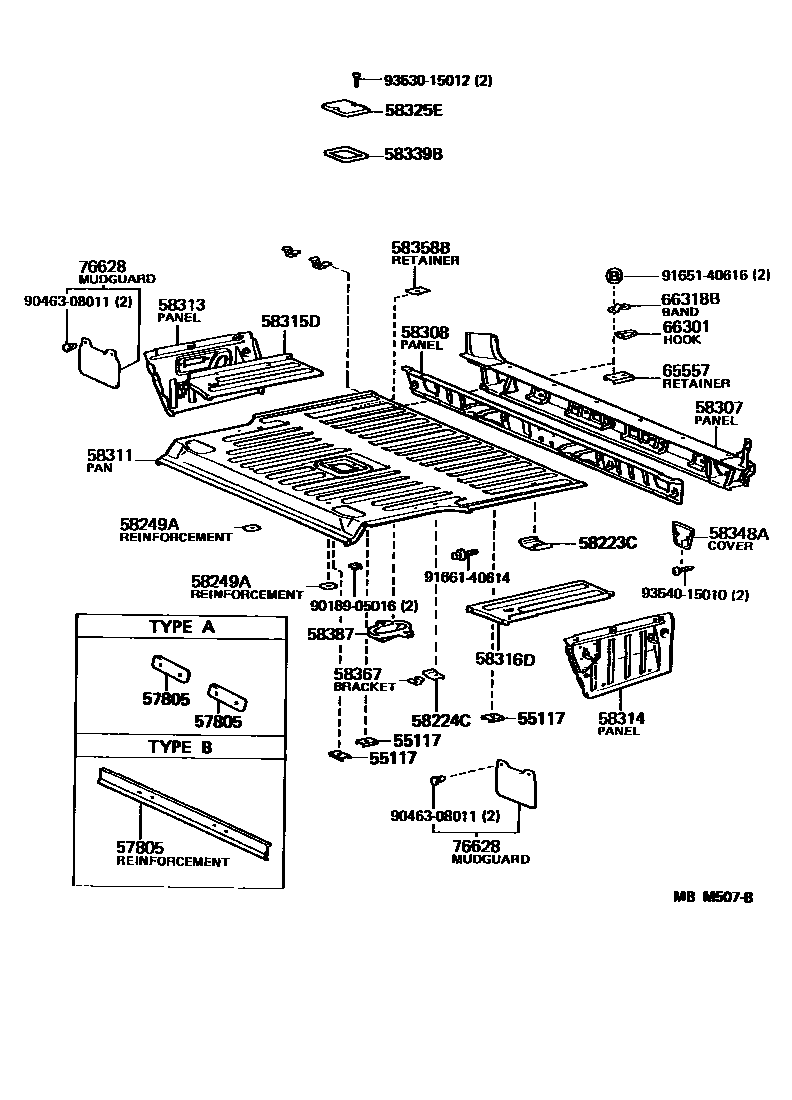

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

55117RETAINER, CLUTCH BOOSTER, NO.1

main55118-90K00iHJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GEN;HJ60..RHD..STD..GEN;FJ62..(4F,4FC)..SOB..(STD,VX);FJ62,HJ61..(4FC,5F)..HRF..LUB;FJ62..(4F,4FC).198708-199203

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-90A00iBJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD)198708-199203

TYPE A

main57805-90A00iFJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN198708-199001

main57805-90A01iHJ61..HRF;FJ62,HJ60..VX;FJ62..HRF..GX..ARL198708-199001

TYPE B

main57805-90A01iFJ62,HJ60..SRF..LUB..GX..GEN198708-199203

TYPE A

58223CREINFORCEMENT, SEAT SET, NO.1

main58223-90A00iBJ60;FJ62..SRF..SOB..VX;FJ62,HJ60..LHD..SOB..(GX,STD)198708-199001

DUAL,LOW ROOF

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-90A01iFJ62..SRF..SOB..VX;FJ62..SRF..SOB..GEN;HJ60..RHD..STD..GEN198708-199001

58249AREINFORCEMENT, REAR SEAT MOUNTING

main58249-90A00iHJ60..LHD..LUB;FJ62..5F..SRF..VX;FJ62..HRF..SOB..GEN;FJ62..SRF..SOB..GX..GEN;FJ62,HJ61..(4FC,5F)..HRF;FJ62..LHD..(4F,4FC)..LUB;FJ62..LHD..5F..SRF..LUB..GEN198708-199203

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-90A00iFJ62,HJ6#..LUB198708-199203

main58307-90A02iBJ60,FJ62,HJ60..SOB198708-199001

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-90A03iFJ62,HJ6#..LUB198708-199203

main58308-90A05iBJ60,FJ62,HJ60..SOB198708-199001

58311PAN, REAR FLOOR

main58311-90A19iBJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD)198708-199203

main58311-90A21iFJ62,HJ60..LHD..HRF..(GX,STD)198708-199001

W(TRANSVERSE SEAT)

main58311-90A22iFJ62..SOB..GX..GEN198708-199001

W(PARALLEL SEAT) & W/O 3RD SEAT

main58311-90A22iFJ62,HJ60..LUB..GX..GEN198708-199203

W/O 3RD SEAT

main58311-90A23iFJ62..HRF..STD198708-199001

W(DUAL AIR CONDITIONER)

main58311-90A23iFJ62..HRF..STD198708-199001

W(TRANSVERSE SEAT & DUAL AIR CONDITIONER)

main58311-90A24iFJ62,HJ60..SRF..VX;FJ62..SRF..SOB..GX..GEN198708-199001

W(DUAL AIR CONDITIONER)

main58311-90A24iFJ62,HJ60..SRF..LUB..GX..GEN198708-199203

W/O 3RD SEAT & W(DUAL AIR CONDITIONER)

main58311-90A25iHJ60..RHD..GEN;FJ62..SRF..STD..GEN;FJ62..SRF..LUB..GX..GEN;HJ60..LHD..SRF..GX..GEN198708-199203

W(DUAL AIR CONDITIONER)

58313PANEL, REAR FLOOR SIDE, RH

main58305-90A07iBJ60,HJ60;FJ62..GEN,ME;FJ62,HJ61..SRF..ARL198708-199203

main58305-90A08iFJ62,HJ60..RHD..GEN198708-199001

*SA

main58305-90A09iFJ62,HJ60..LHD..HRF..(GX,VX)198708-199001

W(*SNR)

main58305-90A10iFJ62,HJ61..HRF..ARL198708-199001

main58305-90A11iFJ62,HJ60..HRF..LUB..GEN198708-199001

W(*SNR & TRANSVERSE SEAT & DUAL AIR CONDITIONER)

main58305-90A11iFJ62,HJ61..HRF..ARL198708-199001

W(*SNR)

58314PANEL, REAR FLOOR SIDE, LH

main58306-90A12iFJ62,HJ60..HRF..GX..GEN198708-199203

main58306-90A13iFJ62,HJ60..LHD..HRF..(GX,VX)198708-199001

W(*SNR)

main58306-90A14iFJ62,HJ61..HRF..ARL198708-199001

main58306-90A15iFJ62,HJ61..HRF..ARL198708-199001

W(*SNR & TRANSVERSE SEAT & DUAL AIR CONDITIONER)

main58306-90A15iFJ62,HJ60..HRF..LUB..GEN198708-199001

W(*SNR)

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-90A00iFJ62,HJ60..SRF..LUB..GX..GEN198708-198709

sub58315-90A07

main58315-90A01iFJ62..SRF..SOB..VX;FJ62..SOB..GX..GEN198708-199001

W(PARALLEL SEAT)

main58315-90A03iHJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL198708-199001

W(TRANSVERSE SEAT)

main58315-90A04iHJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL198708-199001

W(TRANSVERSE SEAT & DUAL AIR CONDITIONER)

main58315-90A04iHJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL198708-199001

W(DUAL AIR CONDITIONER)

main58315-90A05iHJ60..SRF..LUB..GEN;FJ62..5F..LUB..VX..ME;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME)198708-199203

W(DUAL AIR CONDITIONER)

main58315-90A06iFJ62..SRF..SOB..VX;FJ62..SRF..SOB..GEN;HJ60..RHD..STD..GEN198708-199001

W(DUAL AIR CONDITIONER)

main58315-90A07iFJ62,HJ60..SRF..LUB..GX..GEN198709-199203

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-90A04iBJ60,HJ60;FJ62..STD;FJ62..SRF..SOB..VX;FJ62..HRF..GX..GEN;FJ62,HJ61..SRF..LUB;FJ62..SRF..SOB..GX..GEN198708-198709

sub58316-90A07

main58316-90A05iBJ60;FJ62..STD..ME;FJ62..HRF..STD;HJ60..LHD..SOB198708-199001

W(PARALLEL SEAT) OR W(DUAL AIR CONDITIONER)

main58316-90A05iFJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN198708-199001

W(PARALLEL SEAT)

main58316-90A06iHJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL198708-199001

W(TRANSVERSE SEAT)

main58316-90A07iBJ60,HJ60;FJ62..STD;FJ62..SRF..SOB..VX;FJ62..HRF..GX..GEN;FJ62,HJ61..SRF..LUB;FJ62..SRF..SOB..GX..GEN198709-199203

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-90A00iBJ60,FJ62,HJ6#198708-199203

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-90A00iBJ60,FJ62,HJ6#198708-199203

58348ACOVER, REAR BODY MOUNTING SERVICE HOLE

main58348-90A00iBJ60,FJ62,HJ6#198708-199203

58358BRETAINER, COOLER UNIT

main55118-90K00iHJ60..GEN;FJ62..5F..HRF..VX;FJ62..5F..LUB..VX;FJ62..5F..STD..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..HRF..SOB..GX..GEN;FJ62..(4F,4FC)..SOB..(STD,VX);FJ62,HJ61..(4FC,5F)..198708-199203

58367BRACKET, FUEL TUBE CLAMP

main58367-90A00iBJ60,FJ62,HJ6#198708-199203

58387PLATE, REAR FLOOR FINISH

main58387-90A00iFJ62..HRF..SOB198708-199001

65557RETAINER, ROPE HOOK

main65557-90A01iBJ60,FJ62,HJ6#198708-199203

66301HOOK SUB-ASSY, ROPE

main66301-90A00iBJ60,FJ62,HJ6#198708-199203

66318BBAND, ROPE HOOK

main66318-90A00iBJ60,FJ62,HJ6#198708-199203

76628MUDGUARD, QUARTER PANEL, REAR

main76628-90A01iBJ60,FJ62,HJ6#198708-199203

9018905016

main90189-05016

9046308011

main90463-08011

9161140614

main91611-40614

9165140616

main91651-40616

9353015012

main93530-15012

9354015010

main93540-15010

28 parts on this diagram · 2 diagrams in section
