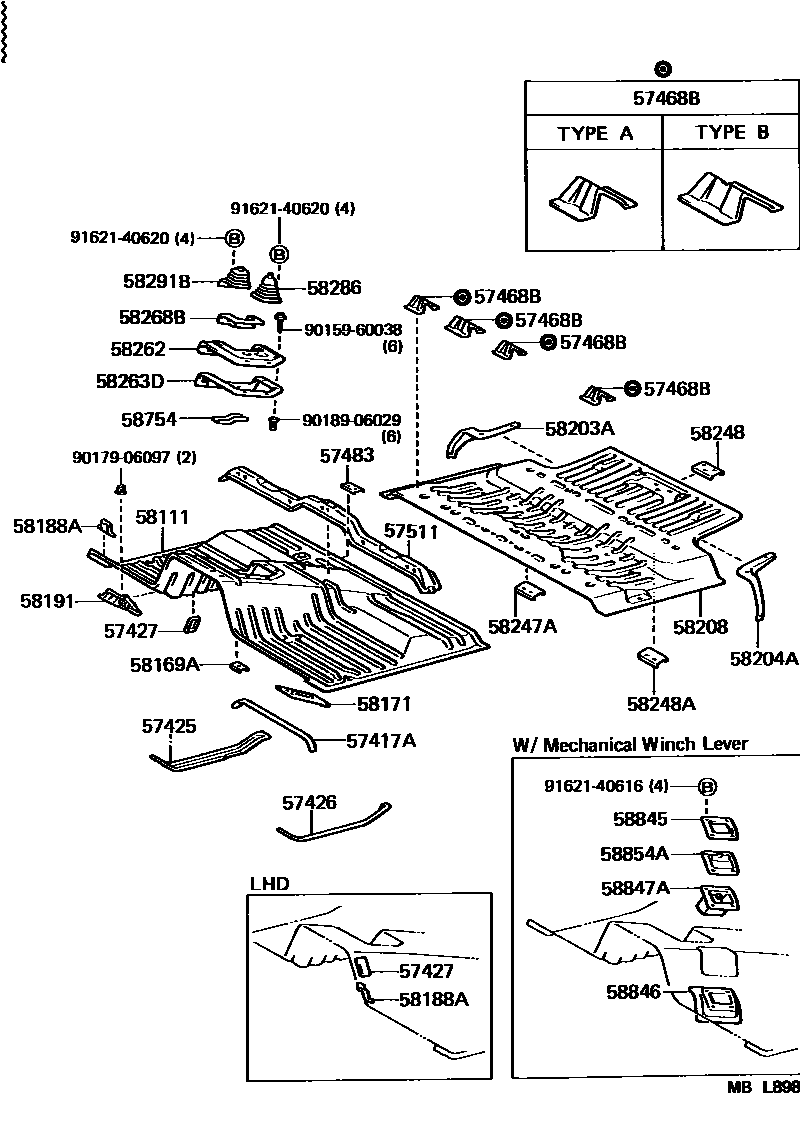

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-90A03iFJ62..4FC..LUB..ME198708-199001

W(COOL BOX & DUAL AIR CONDITIONER)

main57417-90A03iBJ60,FJ62,HJ6#..MTM198708-199203

main57417-90A03iFJ62,HJ6#..5F..GX..ARL198904

GXL

main57505-90A02iFJ62..4FC..SOB..VX198708-199203

main57505-90A02iFJ62,HJ61..4FC..GX..ARL198904

GXL

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-90A02iFJ62,HJ6#..GX..ARL198904

GXL

main57425-90A02iBJ60,FJ62,HJ6#198708-199203

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-90A04iFJ62,HJ6#..GX..ARL198904

GXL

main57426-90A04iBJ60,FJ62,HJ6#198708-199203

57427REINFORCEMENT, FRONT FLOOR TO BRACE

main57427-90A00iBJ60,FJ62,HJ6#198708-199203

main57427-90A00iFJ62,HJ6#..GX..ARL198904

GXL

57468BBRACKET, FRONT SEAT, REAR

main57468-90A01iFJ62..SRF..SOB..GX..GEN198708-199203

OUTER

main57468-90A01iFJ62..SRF..SOB..GX..GEN198708-199203

TYPE A,OUTER

main57468-90A01iFJ62,HJ6#..GX..ARL198904

GXL,TYPE A,OUTER

main57468-90A02iFJ62..SOB..GX..ME198708-199203

INNER

main57468-90A02iFJ62..SOB..GX..ME198708-199001

TYPE B,INNER

main57468-90A02iFJ62,HJ6#..GX..ARL198904

GXL,TYPE B,INNER

57483RETAINER, DIFFERENTIAL LOCK LEVER SUPPORT

main57483-90A00iFJ62,HJ60..RHD..STD..GEN198708-199203

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-90A03iBJ60,FJ62,HJ6#198708-199203

main57511-90A03iFJ62,HJ6#..GX..ARL198904

GXL

58111PAN, FRONT FLOOR

main58111-90A42iFJ62..SRF..VX..ME198708-199203

W(FRONT HEATER & DUAL AIR CONDITIONER)

main58111-90A42iFJ62,HJ60..HRF..GX..GEN198708-199001

W(COOL BOX & DUAL AIR CONDITIONER)

main58111-90A42iBJ60..LHD..GEN198708-199001

W(FR & RR HEATER)

main58111-90A43iBJ60,FJ62,HJ60..LHD..MTM198708-199203

W(WINCH)

main58111-90A46iFJ62..4FC..GEN198708-199203

W(FRONT HEATER & DUAL AIR CONDITIONER)

main58111-90A47iFJ62..LHD..4FC198708-199203

W(WINCH)

main58111-90A50iFJ62,HJ60..RHD..STD..GEN198708-199001

W(FR & RR HEATER)

main58111-90A50iFJ62,HJ60..RHD..STD..GEN198708-199001

W(FRONT HEATER & DUAL AIR CONDITIONER)

main58111-90A50iFJ62,HJ60..RHD..STD..GEN198708-199001

W(FR & RR HEATER & DUAL AIR CONDITIONER)

main58111-90A50iFJ62,HJ6#..5F..GX..ARL198904

GXL

main58111-90A51iBJ60,FJ62,HJ60..RHD..GEN198708-199001

W(WINCH)

main58111-90A54iFJ62,HJ61..4FC..GX..ARL198904

GXL

sub58111-90A58

sub90950-01011

main58111-90A54iFJ62,HJ61..4FC..ARL198708-199001

W(FRONT HEATER & DUAL AIR CONDITIONER)

sub58111-90A58

sub90950-01011

58169ARETAINER, REAR HEATER MOUNTING

main58169-90A00iFJ62..5F..VX;FJ62..4F..SOB..GX;BJ60,HJ6#..ARL,GEN;FJ62..(4F,4FC)..LUB;FJ62..5F..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX)198708-199203

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-90A00iFJ62,HJ6#..GX..ARL198904

GXL

main58107-90A00iBJ60,FJ62,HJ6#198708-199203

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-90A02iFJ62,HJ6#..GX..ARL198904

GXL

main58188-90A02iBJ60,FJ62,HJ6#..RHD198708-199001

main58188-90A03iBJ60,FJ62,HJ60..LHD198708-199203

58191FOOTREST, FRONT FLOOR

main58191-90A00iFJ62,HJ61..4FC..ARL198708-199001

main58192-90A00iFJ62..LHD..4FC198708-199203

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-90A00iFJ62,HJ6#..GX..ARL198904

GXL

main58203-90A00iBJ60,FJ62,HJ6#198708-199203

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-90A00iBJ60,FJ62,HJ6#198708-199203

main58204-90A00iFJ62,HJ6#..GX..ARL198904

GXL

58208PAN, CENTER FLOOR

main58211-90A21iBJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD)198708-199203

main58211-90A21iFJ62,HJ6#..GX..ARL198904

GXL

main58211-90A22iFJ62..HRF..LUB..GEN198708-199203

W(DIVISION SEAT)

main58211-90A23iFJ62,HJ6#..RHD..SRF198708-199001

W(*DL)

main58211-90A24iHJ60..LHD..GX..GEN;FJ62..LHD..(GX,STD)198708-199203

W(*DL)

main58211-90A25iBJ60..RHD198708-199001

W(*REH)

main58211-90A26iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199203

W(*REH)

main58211-90A27iFJ62,HJ60..RHD..GX..GEN198708-199001

W(*DL & *REH)

main58211-90A28iFJ62..SRF..SOB..GX..GEN198708-199203

W(*DL & *REH)

main58211-90A29iHJ60..RHD..GX..GEN198708-199001

W(DIVISION SEAT & *DL)

main58211-90A29iFJ62,HJ61..HRF..ARL198708-199001

W(*DL)

main58211-90A30iFJ62..4F..SRF..SOB..GX198708-199203

W(DIVISION SEAT & *DL)

main58211-90A30iFJ62..4F..SRF..SOB..GX198708-198711

W(*SA & *DL)

main58211-90A30iFJ62,HJ60..LHD..VX198708-199001

W(*DL)

main58211-90A31iHJ60..STD..GEN198708-199001

W(DIVISION SEAT & *REH)

main58211-90A31iHJ60..STD..GEN198708-199001

W(*REH)

main58211-90A32iFJ62..HRF..VX..ME198708-199001

W(DIVISION SEAT & *REH)

main58211-90A32iFJ62,HJ60..LHD..SRF..LUB..GX..GEN198708-199203

W(*REH)

main58211-90A33iHJ60..STD..GEN198708-199001

W(DIVISION SEAT & *DL & *REH)

main58211-90A33iFJ62,HJ61..VX..ARL198808-199001

W(*DL & *REH)

main58211-90A34iFJ62..SRF..VX..ME198708-199001

W(*DL & *REH)

main58211-90A34iFJ62..SRF..VX..ME198708-199203

W(DIVISION SEAT & *DL & *REH)

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-90A00iBJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD)198708-199203

main58247-90A00iFJ62,HJ6#..GX..ARL198904

GXL

58248REINFORCEMENT, REAR SEAT CUSHION LOCK

main58248-90A00iFJ62,HJ6#..GX..ARL198904

GXL

main58248-90A00iBJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD)198708-199203

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-90A00iBJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD)198708-199203

main58248-90A00iFJ62,HJ6#..GX..ARL198904

GXL

58262COVER, TRANSMISSION

main58261-90A03iBJ60,FJ62,HJ6#..MTM198708-199203

main58261-90A04iFJ62,HJ61..4FC198708-199203

58263DPACKING, TRANSMISSION COVER

main58263-90A02iBJ60,FJ62,HJ6#198708-199203

58268BSEAL, TRANSFER LEVER BOOT

main58268-90A05iBJ60,FJ62,HJ6#198708-199203

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-90A04iBJ60,FJ62,HJ6#..MTM198708-199203

58291BBOOT, TRANSFER SHIFT LEVER

main58290-90A04iBJ60,FJ62,HJ6#198708-198901

sub58290-90A05

main58290-90A05iBJ60,FJ62,HJ6#198901-199203

58754PLATE, ENGINE SERVICE COVER CATCH

main58754-90A00iBJ60,FJ62,HJ6#198708-199203

main58754-90A00iFJ62,HJ6#..GX..ARL198904

GXL

58845RETAINER, WINCH LEVER BOOT

main58845-90A01iBJ60,FJ62,HJ60..GEN,ME198708-199203

58846COVER, WINCH LEVER

main58846-90A01iBJ60,FJ62,HJ60..GEN,ME198708-199203

58847ASEAL, WINCH LEVER

main58847-90A01iBJ60,FJ62,HJ60..GEN,ME198708-199203

58854ABOOT, WINCH LEVER

main58854-90A01iBJ60,FJ62,HJ60..GEN,ME198708-199203

9015960038

main90159-60038

9017906097

main90179-06097

9018906029

main90189-06029

9162140616

main91621-40616

9162140620

main91621-40620

33 parts on this diagram · 3 diagrams in section
