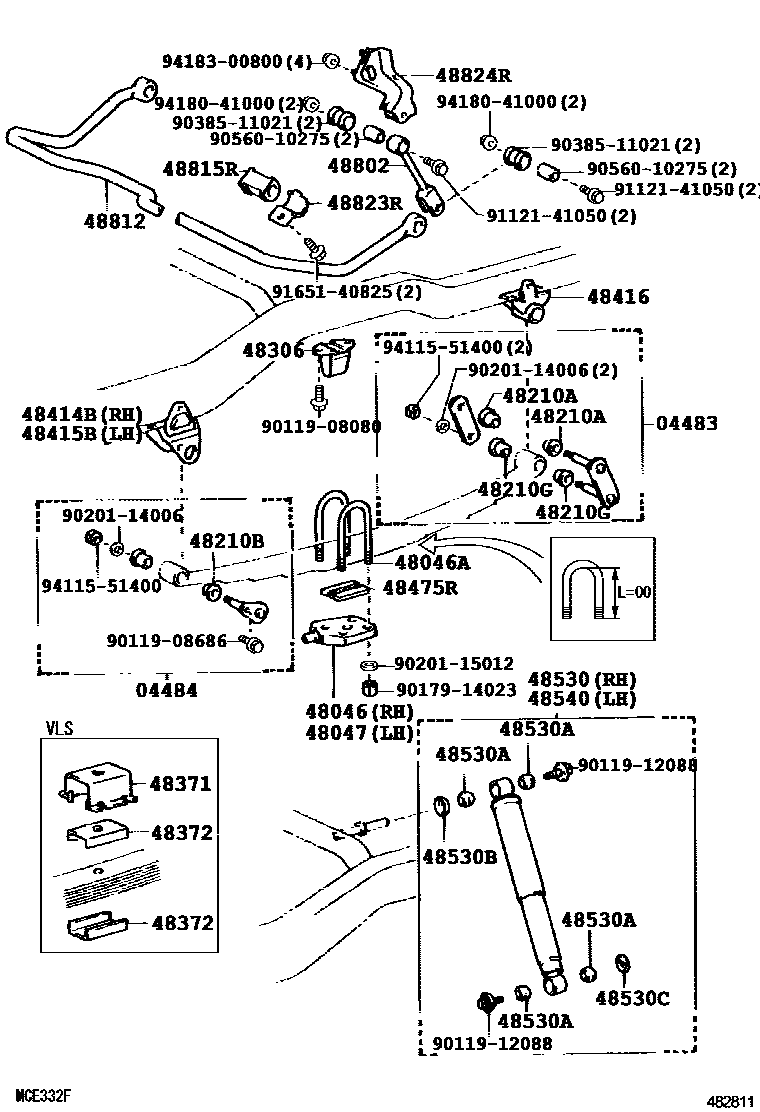

REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
sub04483-60101
04484PIN KIT, REAR SPRING
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48046ABOLT, U(FOR REAR SPRING)
L=190
L=200
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210SPRING ASSY, REAR RH
sub48210-60521
W(SEPARATE 2ND SEAT & TRANSVERSE 3RD SEAT) ORW(BENCH 2ND SEAT & PARALLEL 3RD SEAT)
sub48210-60531
W(BENCH 2ND SEAT & PARALLEL 3RD SEAT)
sub48210-60531
W(SEPARATE 2ND SEAT & TRANSVERSE 3RD SEAT) ORW(BENCH 2ND SEAT & PARALLEL 3RD SEAT)
W(BENCH 2ND SEAT & PARALLEL 3RD SEAT)
sub48210-60651
main48210-60660iBJ60,HJ60..GX,VX;FJ62..SRF..SOB..VX;FJ62..5F..HRF..GEN;FJ62..5F..SOB..GX..GEN;FJ62,HJ61..MTM..SRF..LUB;FJ62..(4F,4FC)..SOB..(GX,VX);FJ62,HJ61..(4F,4FC)..HRF..LUB198708-198803
8-LAEF
sub48210-60661
main48210-60661iBJ60,HJ60..GX,VX;FJ62..SRF..SOB..VX;FJ62..5F..HRF..GEN;FJ62..5F..SOB..GX..GEN;FJ62,HJ61..MTM..SRF..LUB;FJ62..(4F,4FC)..SOB..(GX,VX);FJ62,HJ61..(4F,4FC)..HRF..LUB198803-199203
W(SEPARATE 2ND SEAT & PARALLEL 3RD SEAT)
sub48210-60671
W(BENCH 2ND SEAT & PARALLEL 3RD SEAT)
sub48210-60671
W(SEPARATE 2ND SEAT & TRANSVERSE 3RD SEAT)
sub48210-60671
W(SEPARATE 2ND SEAT & PARALLEL 3RD SEAT)
W(SEPARATE 2ND SEAT & TRANSVERSE 3RD SEAT)
W(SEPARATE 2ND SEAT)
W(BENCH 2ND SEAT & PARALLEL 3RD SEAT)
W(7JJ-15 DISC WHEEL)
main48210-60680iHJ60..LUB;FJ62..5F..SRF..VX;FJ62..5F..HRF..GEN;FJ62,HJ61..(4F,4FC)..HRF..(GX,VX);FJ62,HJ61..MTM..SRF..GX..(ARL,GEN)198708-198803
8-LAEF,W(7JJ-15 DISC WHEEL)
sub48210-60681
main48210-60681iHJ60..LUB;FJ62..5F..SRF..VX;FJ62..5F..HRF..GEN;FJ62,HJ61..(4F,4FC)..HRF..(GX,VX);FJ62,HJ61..MTM..SRF..GX..(ARL,GEN)198803-199203
8-LAEF,W(7JJ-15 DISC WHEEL)
8-LEAF,W(7JJ-15 DISC WHEEL & SEPARATE 2ND SEAT & TRANSVERSE 3RD SEAT)
sub48210-60691
8-LEAF,W(7JJ-15 DISC WHEEL & SEPARATE 2ND SEAT)
sub48210-60691
8-LEAF,W(7JJ-15 DISC WHEEL & SEPARATE 2ND SEAT & PARALLEL 3RD SEAT)
sub48210-60691
8-LEAF,W(7JJ-15 DISC WHEEL)
sub48210-60691
8-LAEF,W(7JJ-15 DISC WHEEL & SEPARATE 2ND SEAT & PARALLEL 3RD SEAT)
8-LAEF,W(7JJ-15 DISC WHEEL & SEPARATE 2ND SEAT & TRANSVERSE 3RD SEAT)
8-LAEF,W(7JJ-15 DISC WHEEL & SEPARATE 2ND SEAT)
8-LAEF,W(7JJ-15 DISC WHEEL)
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210BBUSH(FOR REAR SPRING PIN)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48306BUMPER SUB-ASSY, REAR SPRING
main48306-60050iHJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN)198708-199203
W(7JJ-15 DISC WHEEL)
48371RETAINER, REAR SPRING PAD
48372PAD, REAR SPRING
48414BBRACKET, SPRING, NO.3 RH
48415BBRACKET, SPRING, NO.3 LH
48416BRACKET, SPRING, NO.4
48475RPLATE, DISTANCE(FOR REAR)
48530ABSORBER ASSY, SHOCK, REAR RH
main48531-69125iHJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN)198708-199203
W(7JJ-15 DISC WHEEL)
sub48531-69126
48530ABUSH(FOR REAR SHOCK ABSORBER)
main90385-19003iHJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN)198708-199203
W(7JJ-15 DISC WHEEL)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
main48541-69045iHJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN)198708-199203
W(7JJ-15 DISC WHEEL)
sub48541-69046
48802LINK SUB-ASSY, STABILIZER
48812BAR, STABILIZER, REAR
VENEZUELA CKD SPEC
VENEZUELA CKD SPEC
48815RBUSH, STABILIZER(FOR REAR)
48823RCOVER, STABILIZER LINK(FOR REAR)
VENEZUELA CKD SPEC
48824RBRACKET, STABILIZER(FOR REAR)
9011908080
main90119-08080
9011908686
main90119-08686
9011912088
main90119-12088
9017914023
main90179-14023
9020114006
main90201-14006
9020115012
main90201-15012
9038511021
main90385-11021
9056010275
main90560-10275
9112141050
main91121-41050
9165140825
main91651-40825
9411551400
main94115-51400
9418041000
main94180-41000
9418300800
main94183-00800
39 parts on this diagram · 3 diagrams in section
