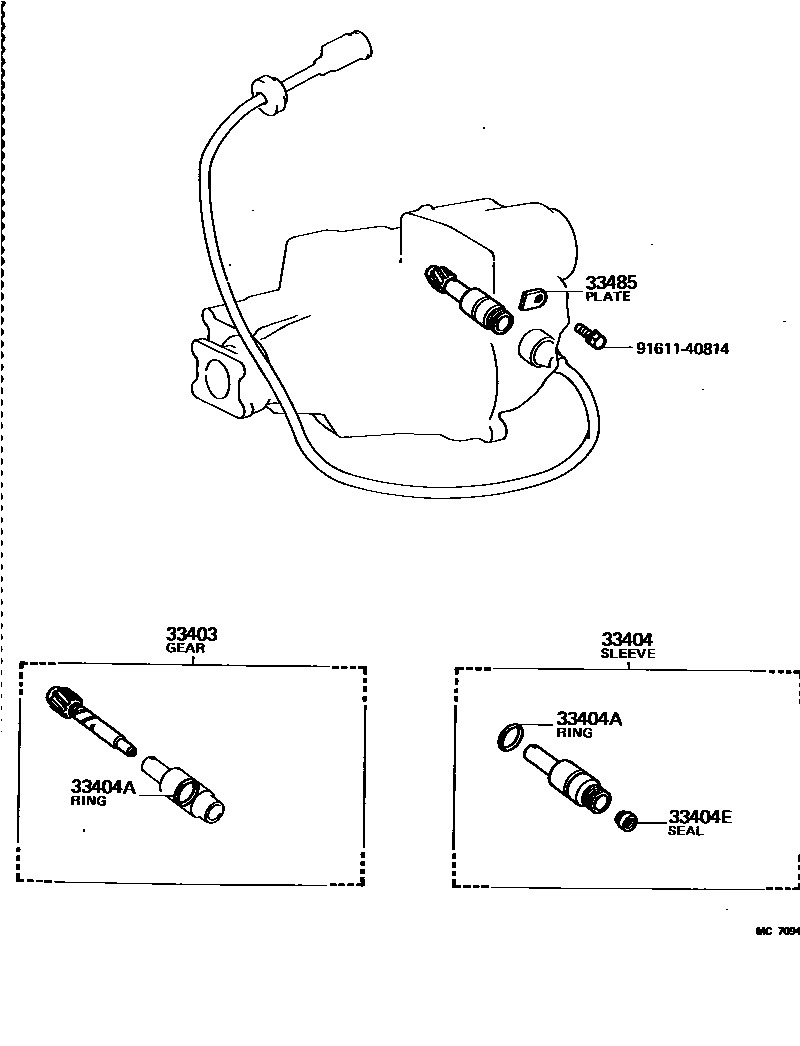

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-69145iFJ62,HJ60..MTM..GEN198708-199203

N=16,MARK 16:7

main33403-69155iFJ62,HJ60..MTM..(GX,VX)..GEN198708-199203

N=17,MARK 17:7

main33403-69165iFJ62,HJ60..STD..GEN198708-199203

N=15,MARK 15:6

main33403-69175iFJ62,HJ60..STD..GEN198708-199203

N=16,MARK 16:6

main33403-69185iFJ62,HJ60..STD..GEN198708-199001

N=17,MARK 17:6

main33403-69195iFJ62..LHD..5F..SRF..LUB..GEN198708-199203

N=18,MARK 18:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iBJ60,FJ62,HJ6#..MTM198708-199203

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iBJ60,FJ62,HJ6#..MTM198708-199203

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBJ60,FJ62,HJ6#..MTM198708-199203

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iBJ60,FJ62,HJ6#..MTM198708-199203

9161140814

main91611-40814

6 parts on this diagram · 1 diagram in section
