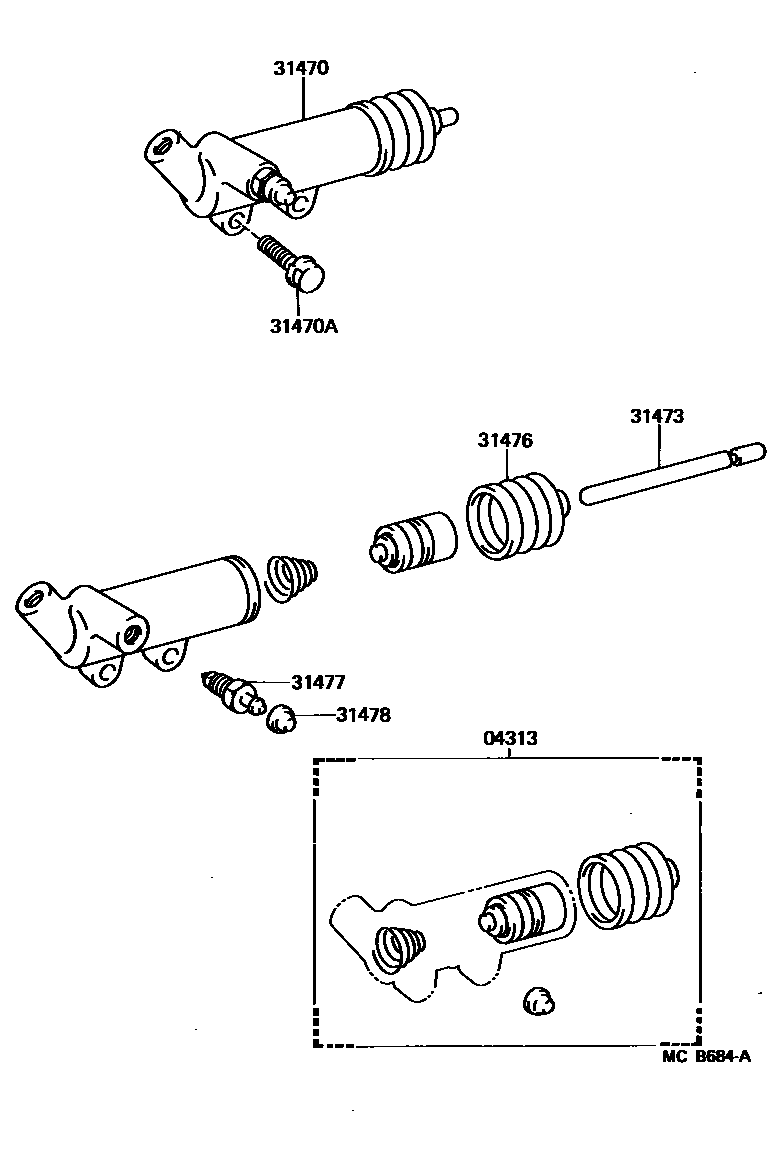

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iFJ62..5F199006-199203

main04313-60050iFJ62,HJ6#..MTM198708-199006

main04313-60060iBJ60198708-199001

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60101iFJ62,HJ6#..MTM198708-199004

sub31470-60102

main31470-60102iFJ62..5F199004-199203

main31470-60130iBJ60198708-199001

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-41045iFJ62,HJ6#..MTM198708-199203

main91611-60828iBJ60198708-199001

*8-1.25PX28-28

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60080iFJ62,HJ6#..MTM198708-199203

main31473-60110iBJ60198708-199001

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-36010iFJ62,HJ6#..MTM198708-199203

main31476-60050iBJ60198708-199001

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBJ60,FJ62,HJ6#..MTM198708-199203

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ60,FJ62,HJ6#..MTM198708-199203

7 parts on this diagram · 2 diagrams in section
