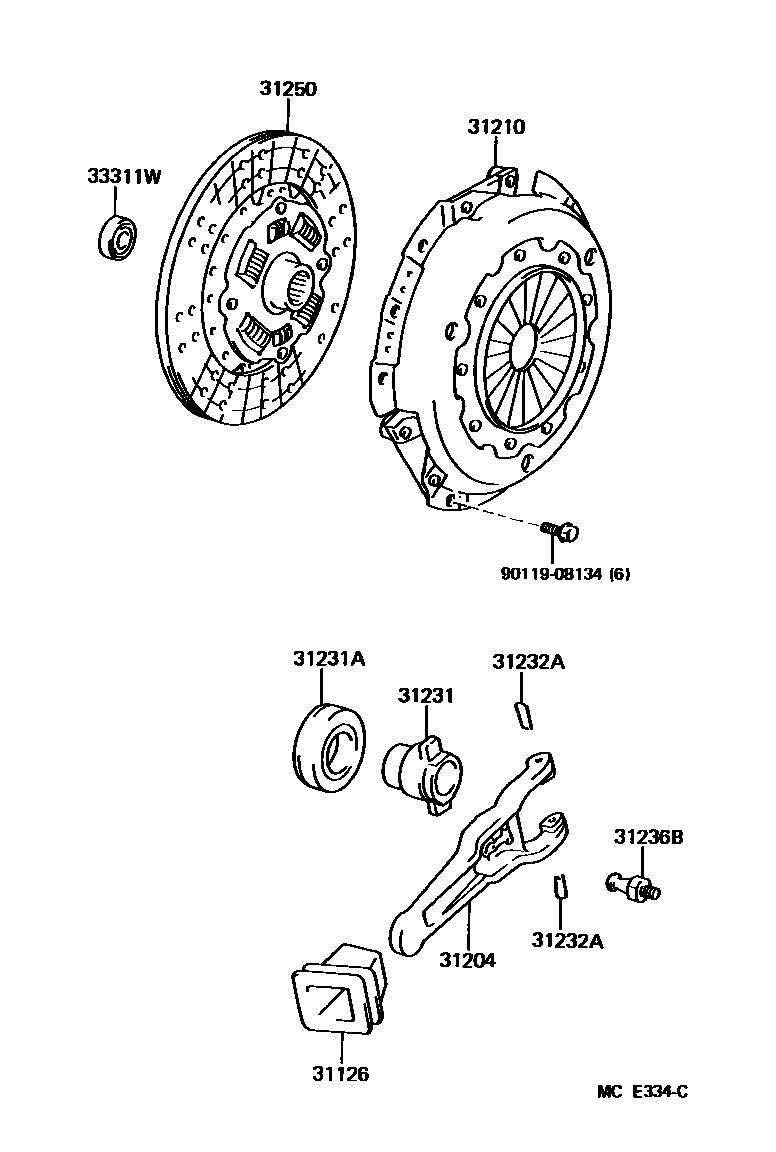

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-60021iFJ62,HJ6#..MTM198708-199203

main31126-60030iBJ60198708-199001

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-60060iFJ62..MTM198708-199203

main31204-60070iHJ6#..MTM198708-199001

main31204-60080iBJ60198708-199001

31210COVER ASSY, CLUTCH

main31210-36100iBJ60198708-198910

sub31210-36101

main31210-36140iHJ60;FJ62..MTM..(GEN,ME)198808-198910

sub31210-36160

main31210-36160iHJ60;FJ62..MTM..(GEN,ME)198910-199203

sub31210-36161

main31210-60070iHJ60;FJ62..MTM..(GEN,ME)198708-198712

sub31210-60071

main31210-60071iHJ60;FJ62..MTM..(GEN,ME)198712-198808

sub31210-36140

main31210-60080iFJ62..5F..ARL198708-198709

sub31210-60100

main31210-60081iFJ62..5F..ARL198709-198712

sub31210-60082

main31210-60082iFJ62..5F..ARL198712-198910

sub31210-60100

main31210-60090iHJ61..5F198708-198712

sub31210-60091

main31210-60091iHJ61..5F198712-198910

sub31210-60100

main31210-60100iFJ62,HJ61..5F..ARL198910-199001

sub31210-60101

main31210-60130iBJ60198910-199001

sub31210-60190

31231HUB, CLUTCH RELEASE BEARING

main31231-60050iHJ6#..MTM198708-198709

main31231-60051iHJ6#..MTM198709-199001

main31231-60070iFJ62..MTM198708-198709

main31231-60071iFJ62..MTM198709-199203

main31231-60080iBJ60198708-198808

main31231-60100iBJ60198808-199001

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45002iBJ60198708-199001

main90363-45013iFJ62,HJ6#..MTM198709-199203

main90363-52001iFJ62,HJ6#..MTM198708-198709

31232ACLIP, RELEASE BEARING HUB

main31232-60020iBJ60,FJ62,HJ6#..MTM198708-199203

31236BSUPPORT, RELEASE FORK

main31236-60020iFJ62..MTM198708-199203

main31236-60030iBJ60,HJ6#..MTM198708-199001

31250DISC ASSY, CLUTCH

main31250-36340iFJ62..MTM198908-199203

sub31250-36341

main31250-60080iFJ62..MTM198708-198908

sub31250-36340

main31250-60170iHJ6#..MTM198708-199001

sub31250-60171

main31250-60180iBJ60198708-198709

sub31250-60181

main31250-60210iBJ60198709-199004

sub31250-60180

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBJ60198708-199001

sub90363-12024

main90363-15004iFJ62,HJ6#..MTM198708-199203

9011908134

main90119-08134

10 parts on this diagram · 2 diagrams in section
