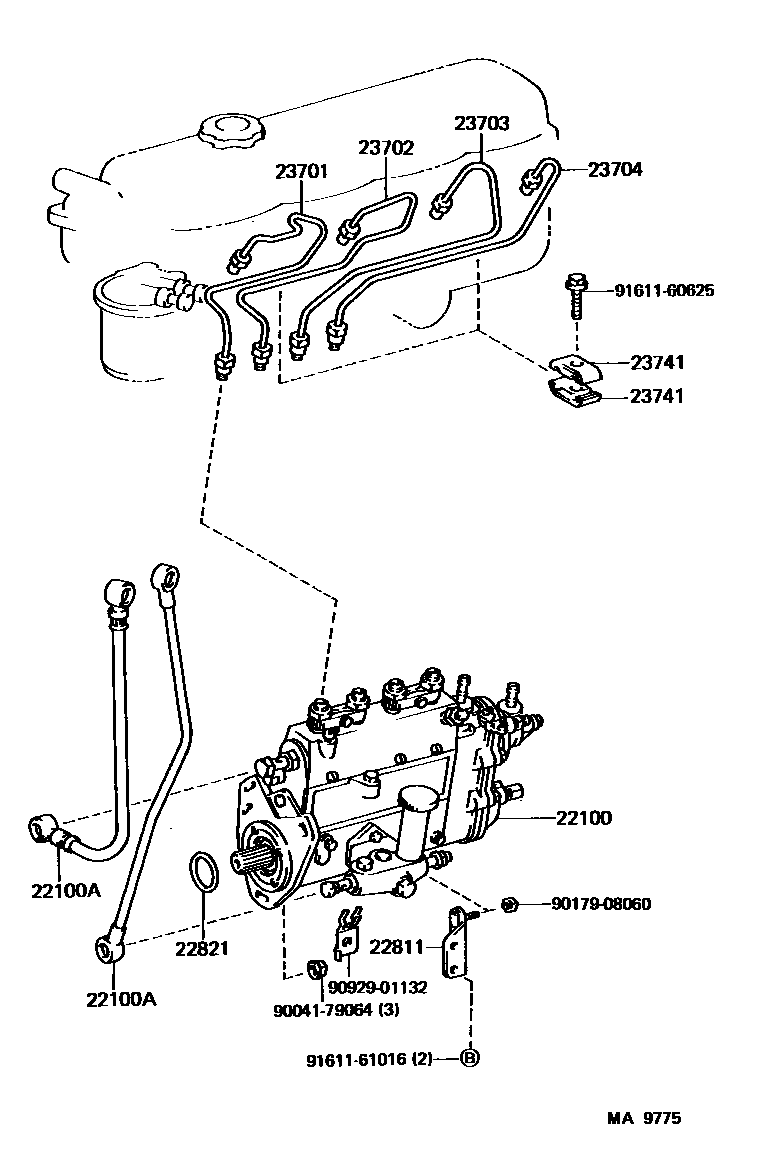

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
W(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR)
W/O(HIGH ALTITUDE COMPENSATOR)
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
PIPE L=300
PIPE L=336
HOSE L=210
PIPE L=216
HOSE L=195
22811STAY, INJECTION PUMP, NO.1
22821GASKET, INJECTION PUMP
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
9004179064
main90041-79064
9017908060
main90179-08060
9092901132
main90929-01132
9161160625
main91611-60625
9161161016
main91611-61016
14 parts on this diagram · 4 diagrams in section
