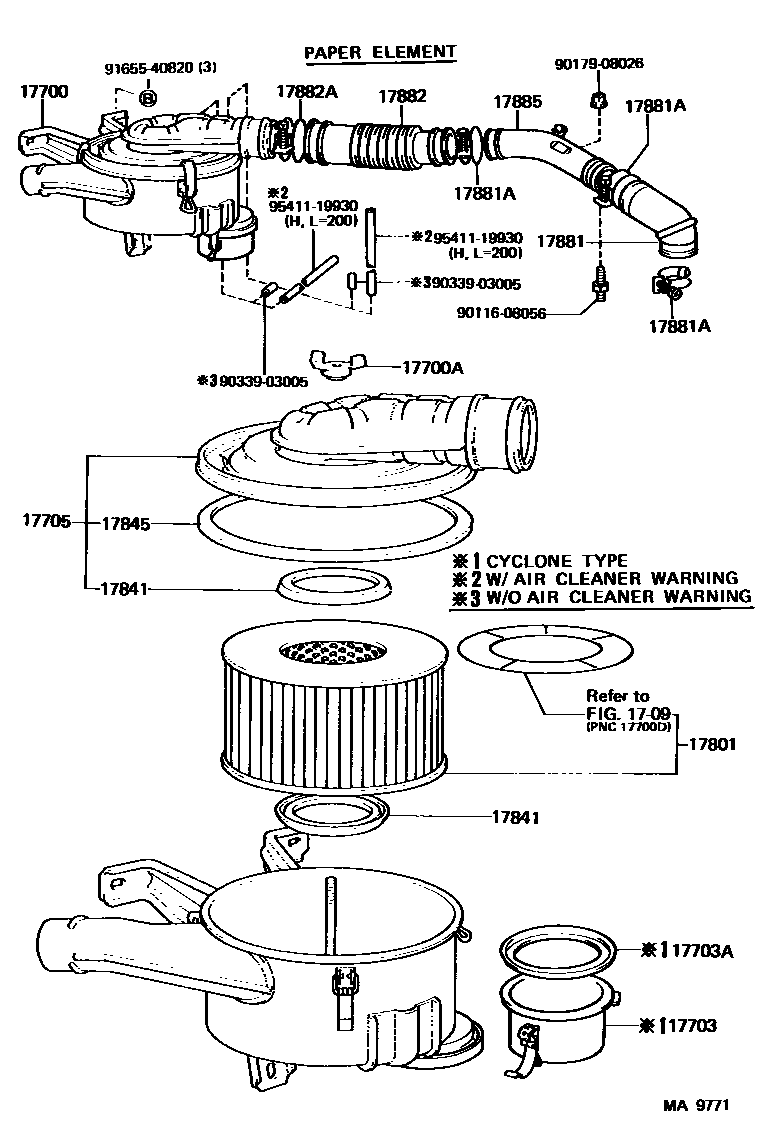

AIR CLEANER
1709
17700CLEANER ASSY, AIR
CYCLONE & W(HOT AIR INTAKE)
CYCLONE
CYCLONE OR CYCLONE & W(SCHNORKEL)
OIL BATH
CYCLONE OR CYCLONE & W(SCHNORKEL)
CYCLONE
17700ANUT, WING(FOR AIR CLEANER)
OIL BATH OR CYCLONE
17703CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
main17703-68010i3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F)..(GX,VX)198708-199203
sub17703-17010
17703AGASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
main90430-98001i3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F)..(GX,VX)198708-199203
CYCLONE
17705CAP SUB-ASSY, AIR CLEANER
CYCLONE & W(HOT AIR INTAKE)
CYCLONE
OIL BATH
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
CHINA SPEC & CYCLONE & W(HOT AIR INTAKE)
OIL BATH
17841GASKET, FILTER ELEMENT
CYCLONE & CHINA SPEC
CYCLONE
OIL BATH
OIL BATH,ELEMENT
17845GASKET, AIR CLEANER CAP
OIL BATH
17881HOSE, AIR CLEANER, NO.1
OIL BATH OR CYCLONE
main17881-61061i3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F)..(GX,VX)198708-199203
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
VENTURI SIDE
OIL BATH OR CYCLONE
main96111-10800i3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F)..(GX,VX)198708-199203
AIR CLEANER SIDE
PIPE SIDE
17882HOSE, AIR CLEANER, NO.2
OIL BATH OR CYCLONE
main17882-61031i3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F)..(GX,VX)198708-199203
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
PIPE SIDE
TURBO SIDE
PIPE SIDE
17885PIPE, AIR CLEANER
9011608056
main90116-08056
9017908026
main90179-08026
9033903005
main90339-03005
9165540820
main91655-40820
9541119930
main95411-19930
19 parts on this diagram · 12 diagrams in section
