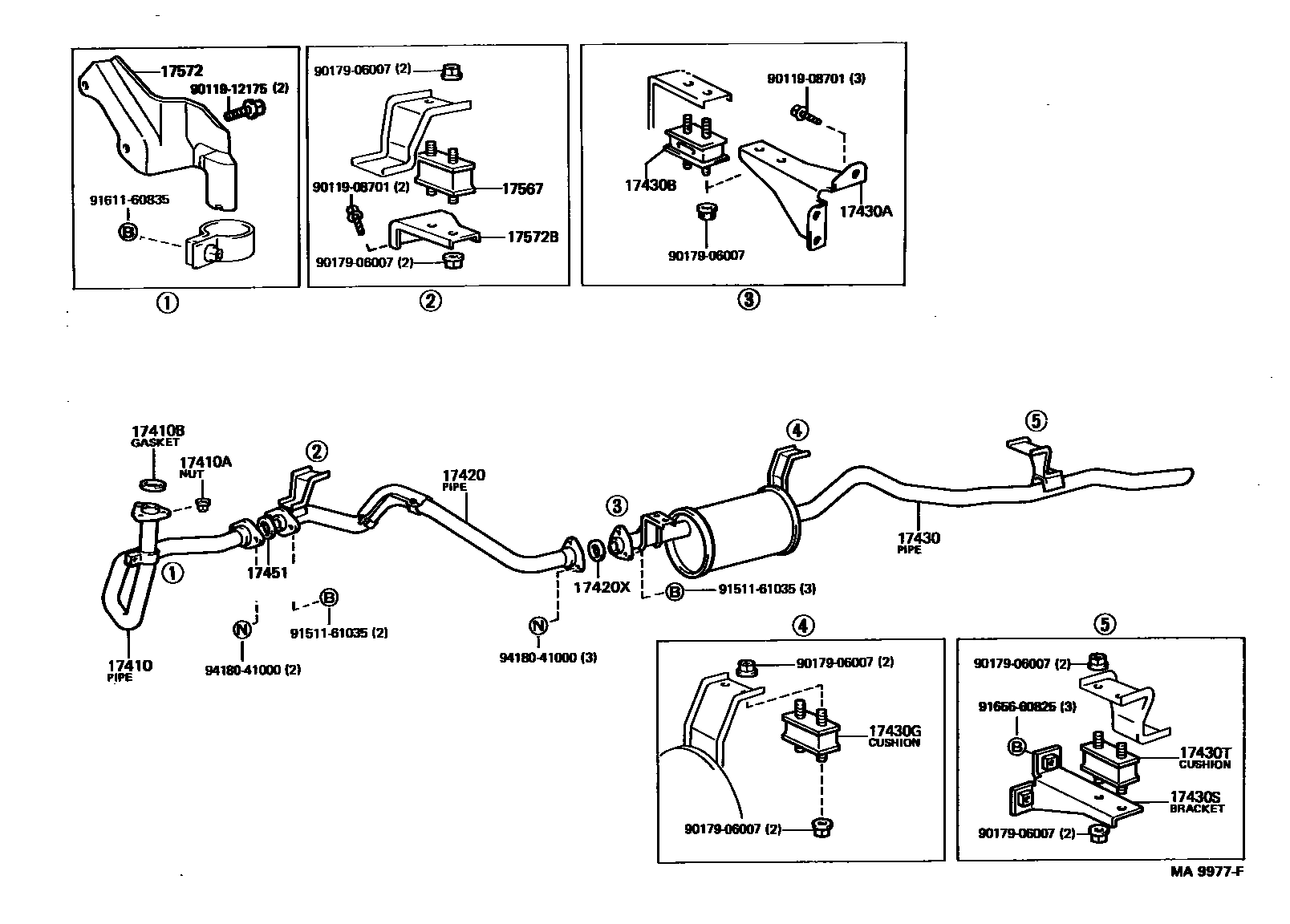

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-58050i3B..BJ60198708-198808

main17401-58180i3B..BJ60198808-199001

main17401-61170i3F..FJ62..MTM198708-199203

sub17401-61200

main17401-61200i3F..FJ62..4FC198708-199203

main17401-68020i2H..HJ60198708-199001

main17401-68040i12HT..HJ61198708-199001

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i12HT,3B,3F,2H..BJ60,FJ62,HJ6#198708-199203

17410BGASKET, EXHAUST PIPE

main90917-06004i3F..FJ62198708-199203

sub90917-06039

main90917-06005i2H..HJ60198708-199001

sub90917-06042

main90917-06012i3B..BJ60198708-198808

sub90917-06045

main90917-06034i12HT,3B..BJ60,HJ61198708-199001

sub90917-06059

17420PIPE ASSY, EXHAUST, CENTER

main17420-58230i3B..BJ60198708-199001

sub17420-58240

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06024i3B..BJ60198708-199001

sub90917-06073

17430PIPE ASSY, EXHAUST, TAIL

main17405-58220i3B..BJ60198708-199001

main17405-61251i3F,2H..FJ62,HJ60..GEN,ME198708-199203

main17405-61261i3F,2H..FJ62,HJ60..ARL198708-199001

main17430-61241i3F..FJ62..RHD..STD..GEN198712-198804

MALAYSIA SPEC

main17430-68051i3B..BJ60..RHD198712-199001

MALAYSIA SPEC

main17430-68061i12HT..HJ61198708-199001

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17574-61071i12HT,3B,3F,2H..BJ60,FJ62,HJ6#198708-199203

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17567-61030i12HT,3B,3F,2H..BJ60,FJ62,HJ6#198708-199203

17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)

main17567-61030i12HT,3B,3F,2H..BJ60,FJ62,HJ6#198708-199203

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17574-61060i12HT,3B,3F,2H..BJ60,FJ62,HJ6#198708-199203

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17567-61030i12HT,3B,3F,2H..BJ60,FJ62,HJ6#198708-199203

17451GASKET, EXHAUST PIPE

main90917-06012i3B..BJ60198708-199001

sub90917-06045

main90917-06024i3B..BJ60..RHD198712-198804

MALAYSIA CKD SPEC

sub90917-06073

main90917-06024i12HT,3F,2H..FJ62,HJ6#198708-199012

sub90917-06073

main90917-06073i3F..FJ62199012-199203

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-61030i3B..BJ60198708-199001

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-58090i3B..BJ60198708-198808

main17571-58231i3B..BJ60198808-199001

main17571-61130i3F..FJ62..4FC198708-199203

main17571-61140i3F..FJ62..MTM198708-199203

main17571-68020i2H..HJ60198708-199001

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-58050i3B..BJ60198708-199001

9011908701

main90119-08701

9011912175

main90119-12175

9017906007

main90179-06007

9151161035

main91511-61035

9161160835

main91611-60835

9165660825

main91656-60825

9418041000

main94180-41000

22 parts on this diagram · 4 diagrams in section
