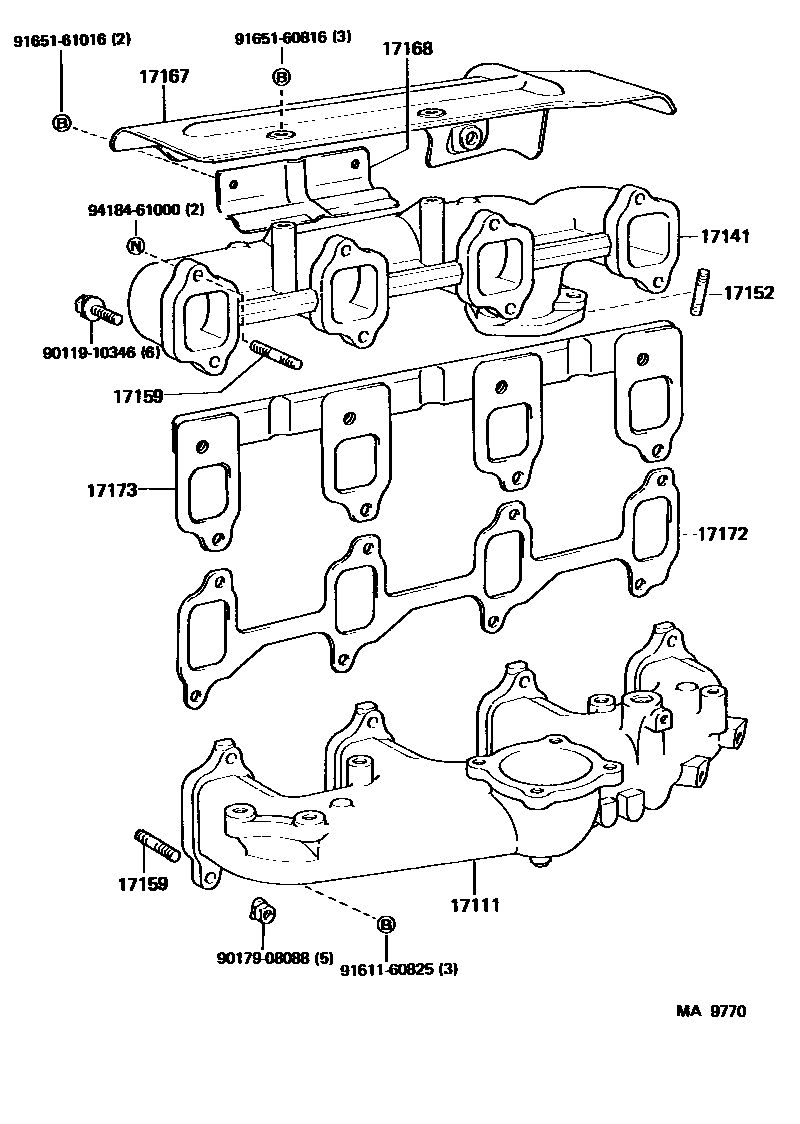

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17111MANIFOLD, INTAKE

main17111-56120i3B..BJ60198708-198808

main17111-56130i3B..BJ60198808-199001

main17111-68011i2H..HJ60..GEN198708-199001

main17111-68022i2H..HJ60..ARL198708-198808

main17111-68023i2H..HJ60..ARL198808-199001

main17111-68060i12HT..HJ61198708-199001

17141MANIFOLD, EXHAUST

main17140-68010i2H..HJ60198708-199001

main17140-68020i12HT..HJ61198708-199001

main17141-56050i3B..BJ60198708-198808

main17141-56060i3B..BJ60198808-199001

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10087i12HT,2H..HJ6#198708-199203

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08131i12HT..HJ61198708-199001

INTAKE MANIFOLD

main90116-08222i12HT,2H..HJ6#198708-199001

EXHAUST MANIFOLD

main90116-10098i3B..BJ60198708-199001

EXHAUST MANIFOLD

sub90116-10063

main90116-10147i3B..BJ60198808-198904

EXHAUST MANIFOLD

sub90116-10098

main90116-12011i3F..FJ62198708-199203

main92132-60825i3B..BJ60198708-199001

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-56023i3B..BJ60198708-198808

main17167-56050i3B..BJ60198808-199001

sub17167-56060

main17167-61040i3F..FJ62198708-199203

main17167-61050i3F..FJ62..GEN198708-199203

CYCLONE & W(HOT AIR INTAKE)

main17167-68020i12HT..HJ61198708-199001

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-61020i3F..FJ62198708-199203

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-56022i3B..BJ60198708-198808

sub17171-56010

main17172-61050i3F..FJ62198708-199001

sub17172-61070

main17172-61070i3F..FJ62199001-199203

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-56040i3B..BJ60198808-199001

main17173-58010i3B..BJ60198708-198808

main17173-68010i2H..HJ60198708-199001

main17173-68021i12HT..HJ61198708-199001

9011910346

main90119-10346

9017908088

main90179-08088

9161160825

main91611-60825

9165160816

main91651-60816

9165161016

main91651-61016

9418461000

main94184-61000

14 parts on this diagram · 6 diagrams in section
