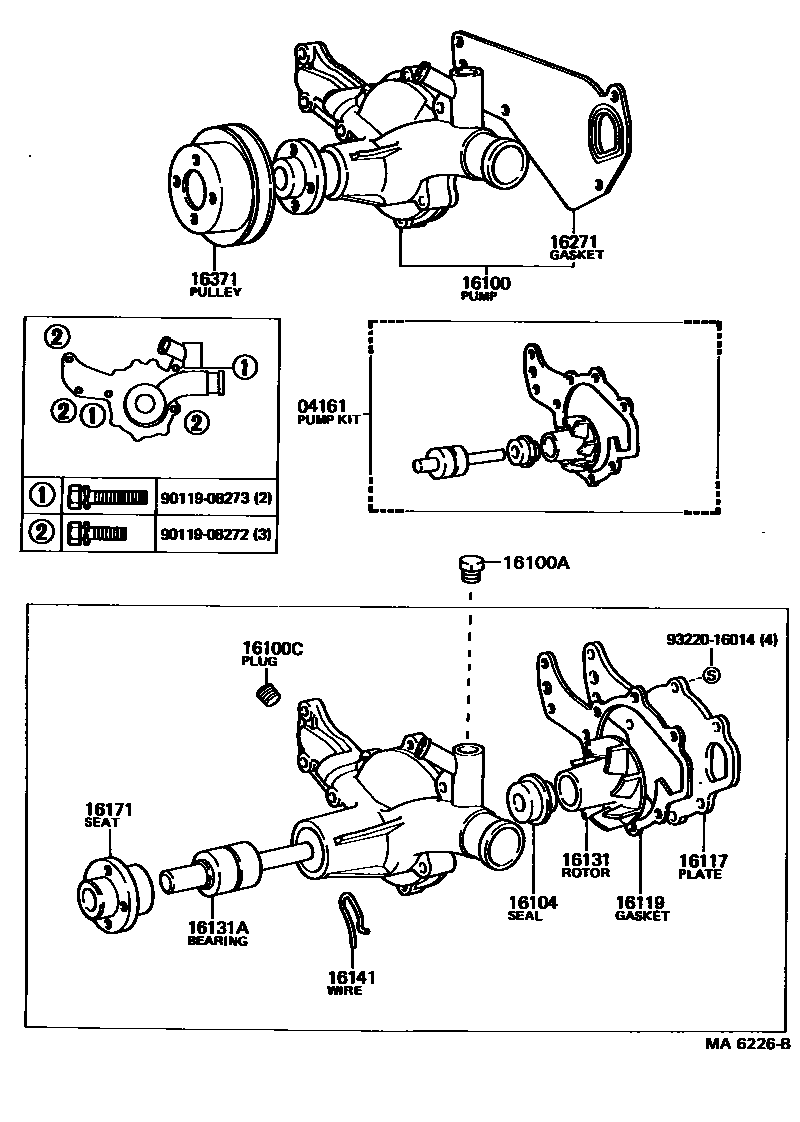

WATER PUMP
16100PUMP ASSY, ENGINE WATER
sub16100-59265
sub16100-69036
MALAYSIA SPEC & W(OIL COOLER FILTER UNITED) OR W(OIL COOLER FOR STD)
W(OIL COOLER FOR STD)
TEMPERED TYPE
VENEZUELA SPEC & W(OIL COOLER FILTER UNITED) OR W(OIL COOLER FOR STD)
W(OIL COOLER FOR STD) & TEMPERED TYPE
main16100-69155i3F..FJ62..ME;3F..FJ62..VX..GEN;3F..FJ62..LHD..4F..GX;3F..FJ62..RHD..GX..GEN;3F..FJ62..5F..HRF..GEN;3F..FJ62..5F..SOB..GX..GEN¥29,600198708-199001
W(OIL COOLER)
main16100-69155i3F..FJ62..ME;3F..FJ62..VX..GEN;3F..FJ62..LHD..4F..GX;3F..FJ62..RHD..GX..GEN;3F..FJ62..5F..HRF..GEN;3F..FJ62..5F..SOB..GX..GEN¥29,600198708-199001
W(OIL COOLER FOR STD)
VENEZUELA SPEC & W(OIL COOLER FILTER UNITED) OR W(OIL COOLER FOR STD)
16100APLUG, WATER PUMP
16100CPLUG, W/HEAD TAPER SCREW
16104SEAL SET, WATER PUMP
16117PLATE, WATER PUMP
16119GASKET, WATER PUMP BODY
16131ROTOR, WATER PUMP
16131ABEARING, WATER PUMP
16141WIRE, WATER PUMP BEARING RETAINING
16171SEAT, WATER PUMP PULLEY
MALASIA SPEC & W(OIL COOLER FILTER UNITED)
TEMPERED TYPE
16271GASKET, WATER PUMP
16371PULLEY, FAN
TEMPERED TYPE
W(POWER STEERING)
AIR CONDITIONER(DUAL,LOW ROOF)
AIR CONDITIONER(DUAL,HIGH ROOF)
AIR CONDITIONER(ALL) OR (SINGLE)
AIR CONDITIONER (SINGLE) OR (DUAL,HIGH ROOF)
AIR CONDITIONER(SINGLE) OR (DUAL,LOW ROOF)
AIR CONDITIONER(ALL)
AIR CONDITIONER(SINGLE)
9011908272
9011908273
9322016014
16 parts on this diagram · 5 diagrams in section
