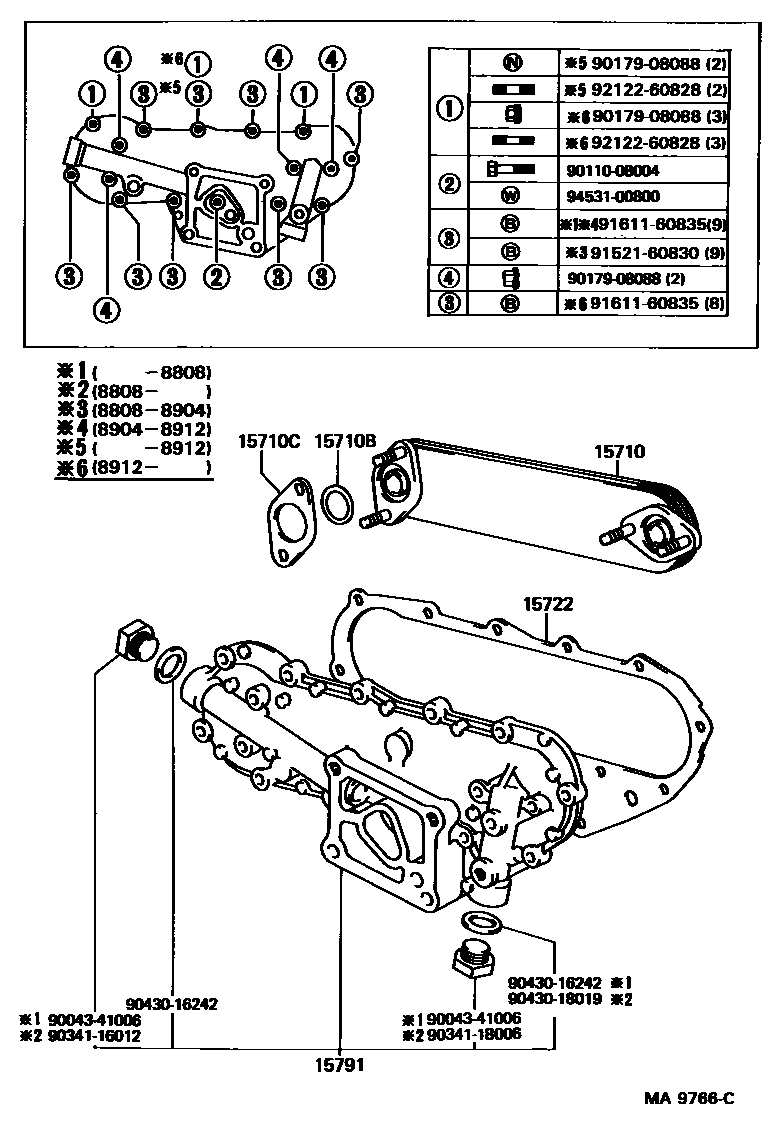

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15710-56041i3B..BJ60198708-198808

main15710-56100i3B..BJ60198808-199001

main15710-61010i3F..FJ62..LHD..(4FC,5F)..SRF..LUB..GX..GEN198708-199203

W(OIL COOLER)

main15710-61010i3F..FJ62..ME;3F..FJ62..RHD..GEN;3F..FJ62..LHD..4F..GX;3F..FJ62..5F..HRF..GEN;3F..FJ62..5F..SOB..GX..GEN;3F..FJ62..LHD..(STD,VX)..GEN198808-199001

main15710-68010i2H..HJ60198708-199001

main15710-68020i12HT..HJ61198708-199001

15710BRING, O(FOR OIL COOLER)

main90301-20001i3B..BJ60198708-199001

main90301-21176i12HT,2H..HJ6#198708-199203

W(OIL COOLER)

main90301-21176i12HT,2H..HJ6#198808-199001

15710CGASKET(FOR OIL COOLER)

main90430-18012i3F..FJ62..LHD..(4FC,5F)..SRF..LUB..GX..GEN198708-199105

main90430-18027i3F..FJ62199105-199203

main90923-05014i3B..BJ60198708-198808

sub90923-05018

main90923-05018i3B..BJ60198808-199001

15722GASKET, OIL COOLER

main15725-56011i3B..BJ60198708-198808

sub15725-56020

main15725-56020i3B..BJ60198808-199001

main90923-05013i12HT,2H..HJ6#198708-199001

sub90923-05023

15791CASE, OIL COOLER

main15701-56011i3B..BJ60198708-198808

main15701-56030i3B..BJ60198808-198904

sub15701-56031

sub91611-60835

main15701-56031i3B..BJ60198904-199001

sub15701-58050

9004341006

main90043-41006

9011008004

main90110-08004

9017908088

main90179-08088

9034116012

main90341-16012

9034118006

main90341-18006

9043016242

main90430-16242

9043018019

main90430-18019

9152160830

main91521-60830

9161160835

main91611-60835

9212260828

main92122-60828

9453100800

main94531-00800

16 parts on this diagram · 3 diagrams in section
