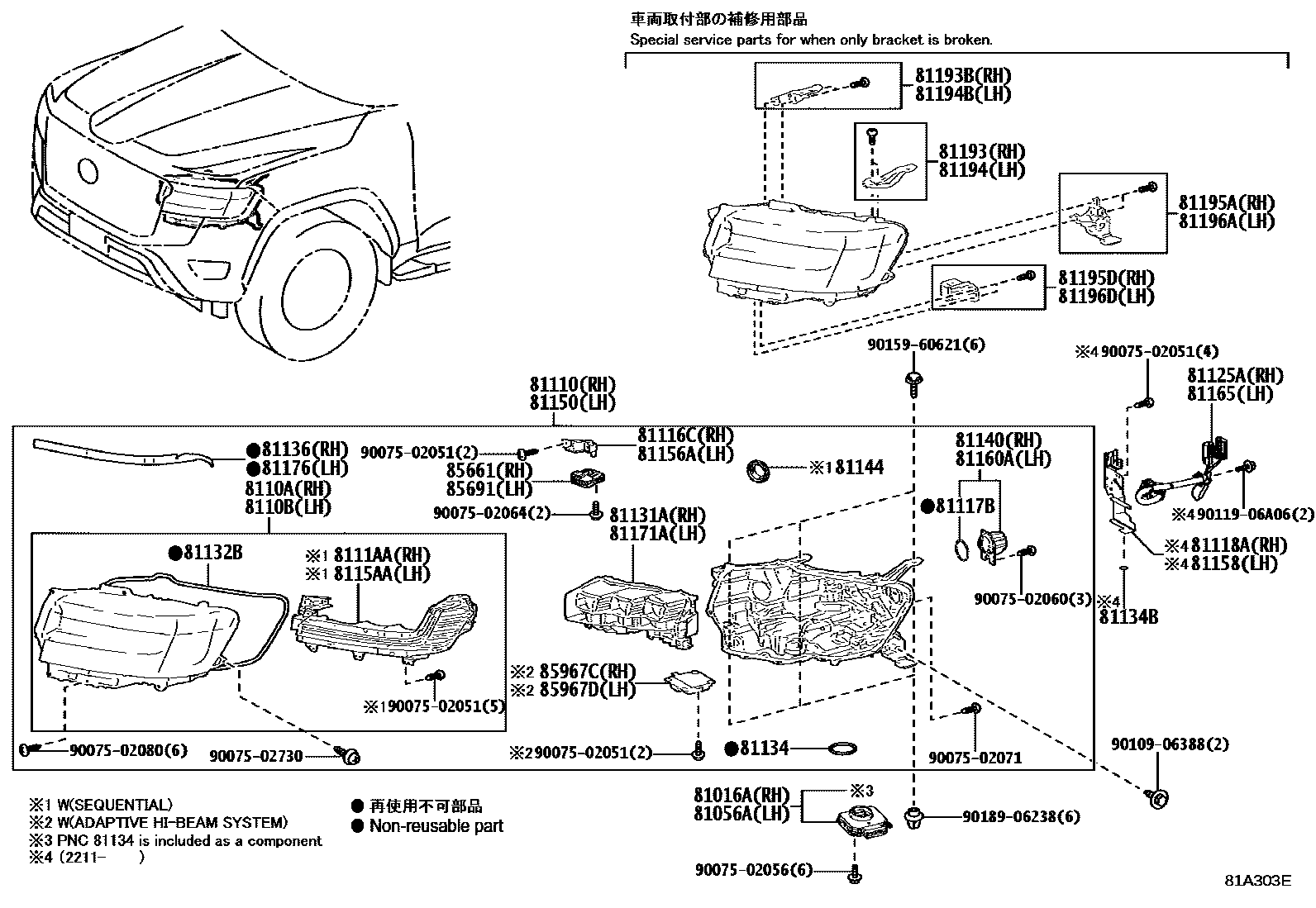

HEADLAMP
81016ACOMPUTER SUB-ASSY, HEADLAMP, RH
main81016-60Q30iFJA300..Z..EUR;VJA300..5S..(S,Z);FJA300..LHD..5S..S;FJA300,VJA300..7S..(S,Z)..GEN202211-202411
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
HEADLAMP-PROJECTOR(*AHB)
main81016-60Q70iFJA300..LHD..5S..(S,V,Z);VJA300..(S,V,Z)..(EUR,GEN);FJA300,GRJ300,VJA300..V..GCC;FJA300..7S..(S,V,Z)..(ARL,EUR,GEN)202104-202110
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
main81016-60Q70iFJA300..LHD..5S..(S,V,Z);VJA300..(S,V,Z)..(EUR,GEN);FJA300,GRJ300,VJA300..V..GCC;FJA300..7S..(S,V,Z)..(ARL,EUR,GEN)202111-202211
HEADLAMP-PROJECTOR(*AHB)
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
main81016-60V80iVJA300..5S..S;VJA300..V..GCC;VJA300..S..GEN;FJA300..Z..EUR;FJA300,GRJ300..V;FJA300..RHD..(S,Z)..GEN;VJA300..(V,Z)..(EUR,GEN);FJA300..LHD..S..(EUR,GEN)202411
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
main81056-60Q30iFJA300..Z..EUR;VJA300..5S..(S,Z);FJA300..LHD..5S..S;FJA300,VJA300..7S..(S,Z)..GEN202211-202411
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
HEADLAMP-PROJECTOR(*AHB)
main81056-60Q70iFJA300..LHD..5S..(S,V,Z);VJA300..(S,V,Z)..(EUR,GEN);FJA300,GRJ300,VJA300..V..GCC;FJA300..7S..(S,V,Z)..(ARL,EUR,GEN)202104-202110
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
main81056-60Q70iFJA300..LHD..5S..(S,V,Z);VJA300..(S,V,Z)..(EUR,GEN);FJA300,GRJ300,VJA300..V..GCC;FJA300..7S..(S,V,Z)..(ARL,EUR,GEN)202111-202211
HEADLAMP-PROJECTOR(*AHB)
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
main81056-60V80iVJA300..5S..S;VJA300..V..GCC;VJA300..S..GEN;FJA300..Z..EUR;FJA300,GRJ300..V;FJA300..RHD..(S,Z)..GEN;VJA300..(V,Z)..(EUR,GEN);FJA300..LHD..S..(EUR,GEN)202411
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
8110ALENS SUB-ASSY, HEADLAMP, RH
AUSTRALIA SAHARA PACKAGE
8110BLENS SUB-ASSY, HEADLAMP, LH
AUSTRALIA SAHARA PACKAGE
81110HEADLAMP ASSY, RH
sub81110-60R01
sub81110-60R11
sub81145-60Q61
INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
AUSTRALIA SAHARA PACKAGE
INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
sub81145-60Q71
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHB)
sub81145-60Q91
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHB)
81116CBRACKET, HEADLAMP, RH
main81116-60Q32iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202403
81117BGASKET
81118ABRACKET, HEADLAMP, RH
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
8111AAUNIT, HEADLAMP TURN SIGNAL LED, RH
AUSTRALIA SAHARA PACKAGE
81125ACORD, HEADLAMP, RH
81131AUNIT, HEADLAMP, RH
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
HEADLAMP-PROJECTOR(*AHB)
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
main90075-23003iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411
81134BTAPE, HEADLAMP PLATE
81136PROTECTOR, HEADLAMP, NO.1 RH
sub81117-60Q51
main81117-60Q51iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202111-202411
81140UNIT ASSY, HEADLAMP LED, RH
81144COVER, HEADLAMP, NO.1
AUSTRALIA SAHARA PACKAGE
81150HEADLAMP ASSY, LH
sub81150-60R01
sub81150-60R11
sub81185-60Q61
INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
AUSTRALIA SAHARA PACKAGE
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
sub81185-60Q71
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHB)
sub81185-60Q91
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHB)
81156ABRACKET, HEADLAMP, LH
main81156-60Q32iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202403
81158BRACKET, HEADLAMP, LH
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
8115AAUNIT, HEADLAMP TURN SIGNAL LED, LH
AUSTRALIA SAHARA PACKAGE
81160AUNIT ASSY, HEADLAMP LED, LH
main81160-60Q50iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411
81165CORD, HEADLAMP, LH
81171AUNIT, HEADLAMP, LH
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
HEADLAMP-PROJECTOR(*AHB)
ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR(SEQUENTIAL TURN LAMP)
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
main81193-60200iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
main81193-60210iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
main81194-60200iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
main81194-60210iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
main81196-60210iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
85967CCOMPUTER, LIGHT CONTROL LED, RH
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
85967DCOMPUTER, LIGHT CONTROL LED, LH
main85967-48090iFJA300..Z..EUR;VJA300..5S..(S,Z);FJA300..LHD..5S..S;FJA300,VJA300..7S..(S,Z)..GEN202104-202411
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP)
9007502051
main90075-02051
9007502056
main90075-02056
9007502060
main90075-02060
9007502064
main90075-02064
9007502071
main90075-02071
9007502080
main90075-02080
9007502730
main90075-02730
9010906388
main90109-06388
9011906A06
main90119-06A06
9015960621
main90159-60621
9018906238
main90189-06238
48 parts on this diagram · 2 diagrams in section
