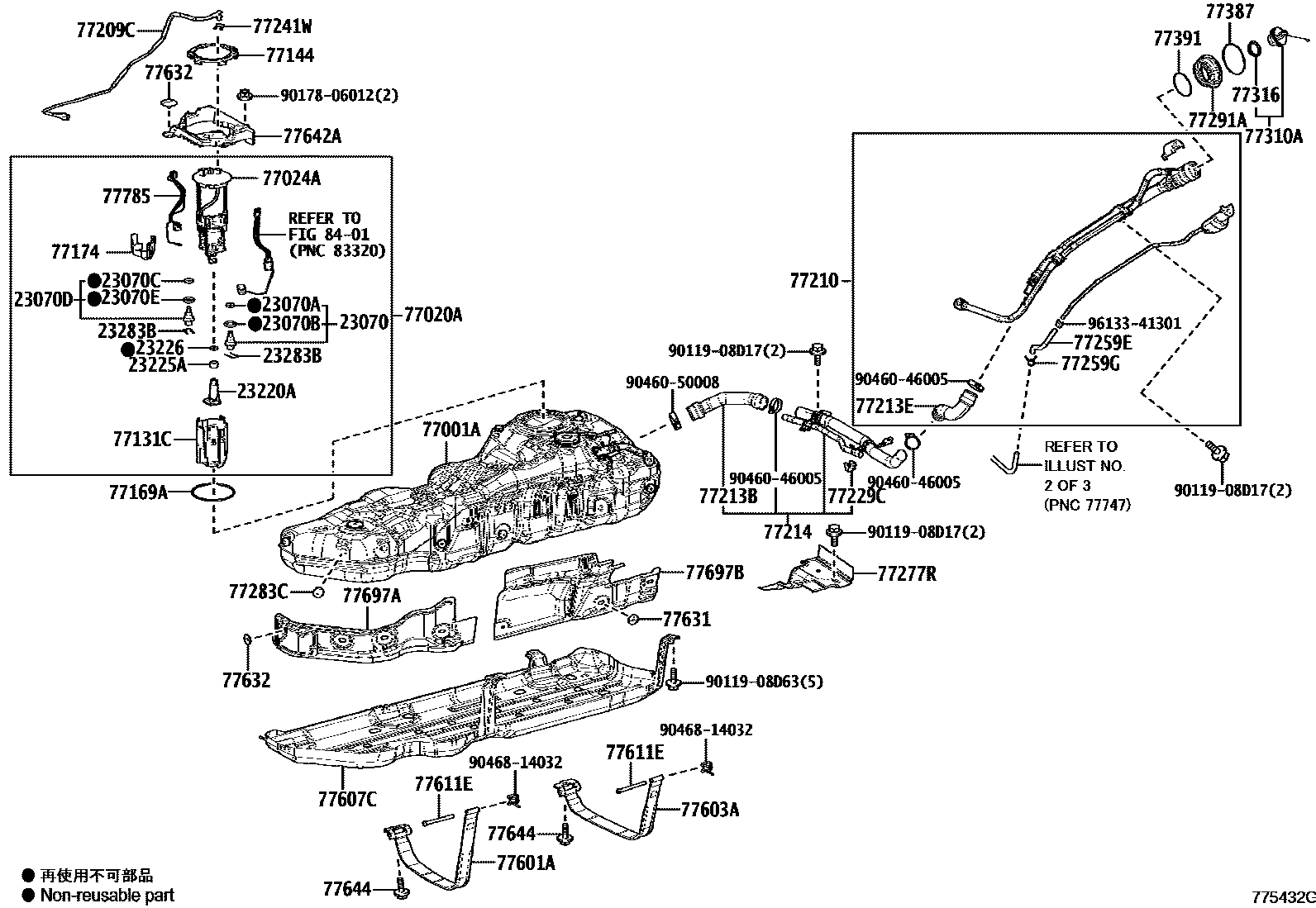

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
main90301-04013iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..S..(GCC,GEN);V35AFTS,1GRFE..GRJ300,VJA300..A,G,V,Z202411
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
main90301-15024iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..S..(GCC,GEN);V35AFTS,1GRFE..GRJ300,VJA300..A,G,V,Z202411
23070CRING, O, NO.3(FOR FUEL MAIN VALVE)
main90301-04013iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411
23070DVALVE ASSY, FUEL MAIN, NO.2
main23070-36010iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411
23070ERING, O, NO.4(FOR FUEL MAIN VALVE)
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
main23225-31010iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..S..(GCC,GEN);V35AFTS,1GRFE..GRJ300,VJA300..A,G,V,Z202411
main23225-50010iF33AFTV..FJA300..Z..EUR;F33AFTV..FJA300..ARL,GCC;F33AFTV..FJA300..RHD..A..GEN;F33AFTV..FJA300..LHD..5S..(A,S,V);F33AFTV..FJA300..LHD..7S..(A,S,V,Z)..(EUR,GEN)202411
FUEL TANK-DIESEL(DUAL TANK)
23226RING, O(FOR FUEL PUMP)
FUEL TANK-DIESEL(DUAL TANK)
23283BHOLDER, FUEL PRESSURE REGULATOR
77001ATANK SUB-ASSY, FUEL
REAR SEAT ENTERTAINMENT-WITH
main77001-60C20iFJA300..Z..EUR;FJA300..ARL,GCC;FJA300..RHD..A..GEN;FJA300..LHD..5S..(A,S,V);FJA300..LHD..7S..(A,S,V,Z)..(EUR,GEN)202411
FUEL TANK-DIESEL(DUAL TANK)
FUEL TANK-GASOLINE(SINGLE TANK)
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
FUEL TANK-GASOLINE(SINGLE TANK)
77024APLATE SUB-ASSY, FUEL SUCTION
main77024-60350supersedes 77024-60360iFJA300..S..GCC;FJA300..Z..EUR;FJA300..RHD..A..GEN;FJA300..LHD..5S..(A,S,V);FJA300..LHD..7S..(A,S,V,Z)..(EUR,GEN)202107-202411
FUEL TANK-DIESEL(SINGLE TANK)
main77024-60360iFJA300..5S..S..GEN;FJA300..RHD..A..GEN;FJA300..ARL,EUR,GCC;FJA300..LHD..7S..(A,S,V,Z)..GEN202107-202411
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
FUEL TANK-GASOLINE(SINGLE TANK)
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
main77144-30030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77213BHOSE, FUEL TANK TO FILLER PIPE
TAJIKISTAN, TURKMENISTAN SPEC&EXHAUST EMISSION CONTROL-EURO 3, WITHOUT(ON BOARD DIAGNOSIS)
77213EHOSE, FUEL TANK TO FILLER PIPE
main77213-60410iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
77214PIPE, FUEL TANK FILLER
main77210-60300supersedes 77210-60340iFJA300..S..GCC;FJA300..5S..S..GEN;FJA300..RHD..A..GEN;FJA300..LHD..7S..(A,S,V,Z)..GEN202107-202411
FUEL TANK-DIESEL(SINGLE TANK)
FUEL TANK-DIESEL(SINGLE TANK)
VIETNAM SPEC
main77210-60340iFJA300..ARL,GCC;FJA300..5S..S..GEN;FJA300..RHD..A..GEN;FJA300..LHD..7S..(A,S,V,Z)..GEN202107-202411
FUEL TANK-DIESEL(DUAL TANK)
main77210-60690iFJA300..ARL,GCC;FJA300..5S..S..GEN;FJA300..RHD..A..GEN;FJA300..LHD..7S..(A,S,V,Z)..GEN202411
FUEL TANK-DIESEL(DUAL TANK)
VIETNAM SPEC&FUEL TANK-GASOLINE(SINGLE TANK)
FUEL TANK-GASOLINE(SINGLE TANK)
77229CCLAMP, BREATHER TUBE
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-DIESEL(SINGLE TANK)
77241WCLIP, TUBE JOINT
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
FUEL TANK-GASOLINE(SINGLE TANK)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77259EHOSE, FUEL
77259GCLIP, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
main77277-60200iFJA300..S..GCC;FJA300..Z..EUR;FJA300..RHD..A..GEN;FJA300..LHD..5S..(A,S,V);FJA300..LHD..7S..(A,S,V,Z)..(EUR,GEN)202107-202411
FUEL TANK-DIESEL(SINGLE TANK)
main77277-60210iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..5S..S..GEN;FJA300..RHD..A..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC;FJA300..LHD..7S..(A,S,V,Z)..GEN202104-202411
main77277-60230iVJA300..5S..S;FJA300..Z..EUR;VJA300..A,G,V,Z;FJA300..RHD..A..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,GCC;FJA300..LHD..5S..(A,S,V);FJA300..LHD..7S..(A,S,V,Z)..(E202411
FUEL TANK-DIESEL(DUAL TANK)
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-DIESEL(SINGLE TANK)
77283CBRACKET, FUEL TANK PROTECTOR
main77283-60040×5iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
77291ASHIELD, FUEL TANK FILLER PIPE
main77291-60160iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
77310ACAP ASSY, FUEL TANK
EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS)
77316GASKET, FUEL TANK CAP
EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS)
77387RING, FUEL INLET BOX
main77391-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
77391RING, FUEL INLET BOX
main77391-12020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
77601ABAND SUB-ASSY, FUEL TANK, NO.1
AZERBAIJAN, GEORGEA SPEC
ECUADOR SPEC
77603ABAND SUB-ASSY, FUEL TANK, NO.2
AZERBAIJAN, GEORGEA SPEC
VIETNAM SPEC
77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2
main77606-60270iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
77611EPIN, FUEL TANK BAND
FUEL TANK-GASOLINE(SINGLE TANK)
77631BRACKET, FUEL TANK, NO.1
main77512-35140×5iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
77632BRACKET, FUEL TANK, NO.2
main77512-47030×5iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
77642APROTECTOR, FUEL TANK, NO.2
main77642-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
77644BOLT, FUEL TANK
main90119-10A27×2iFJA300..S..GCC;FJA300..RHD..A..GEN;FJA300..5S..(A,S,V,Z)..EUR;FJA300..LHD..7S..(S,V,Z)..(EUR,GEN)202411
AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC
77697INSULATOR, FUEL TANK HEAT, NO.1
main77697-60050iVJA300..5S..S;FJA300..Z..EUR;VJA300..A,G,V,Z;FJA300..RHD..A..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,GCC;FJA300..LHD..5S..(A,S,V);FJA300..LHD..7S..(A,S,V,Z)..(E202411
FUEL TANK-DIESEL(DUAL TANK)
77697AINSULATOR, FUEL TANK HEAT, NO.2
main77697-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
77697BINSULATOR, FUEL TANK HEAT, NO.3
main77697-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
77785HARNESS, FUEL PUMP
main77785-60110iFJA300..Z..EUR;FJA300..ARL,GCC;FJA300..RHD..A..GEN;FJA300..LHD..5S..(A,S,V);FJA300..LHD..7S..(A,S,V,Z)..(EUR,GEN)202411
FUEL TANK-DIESEL(DUAL TANK)
8401
9011908D17
main90119-08D17
9011908D63
main90119-08D63
9017806012
main90178-06012
9046046005
main90460-46005
9046050008
main90460-50008
9046814032
main90468-14032
9613341301
main96133-41301
53 parts on this diagram · 12 diagrams in section
