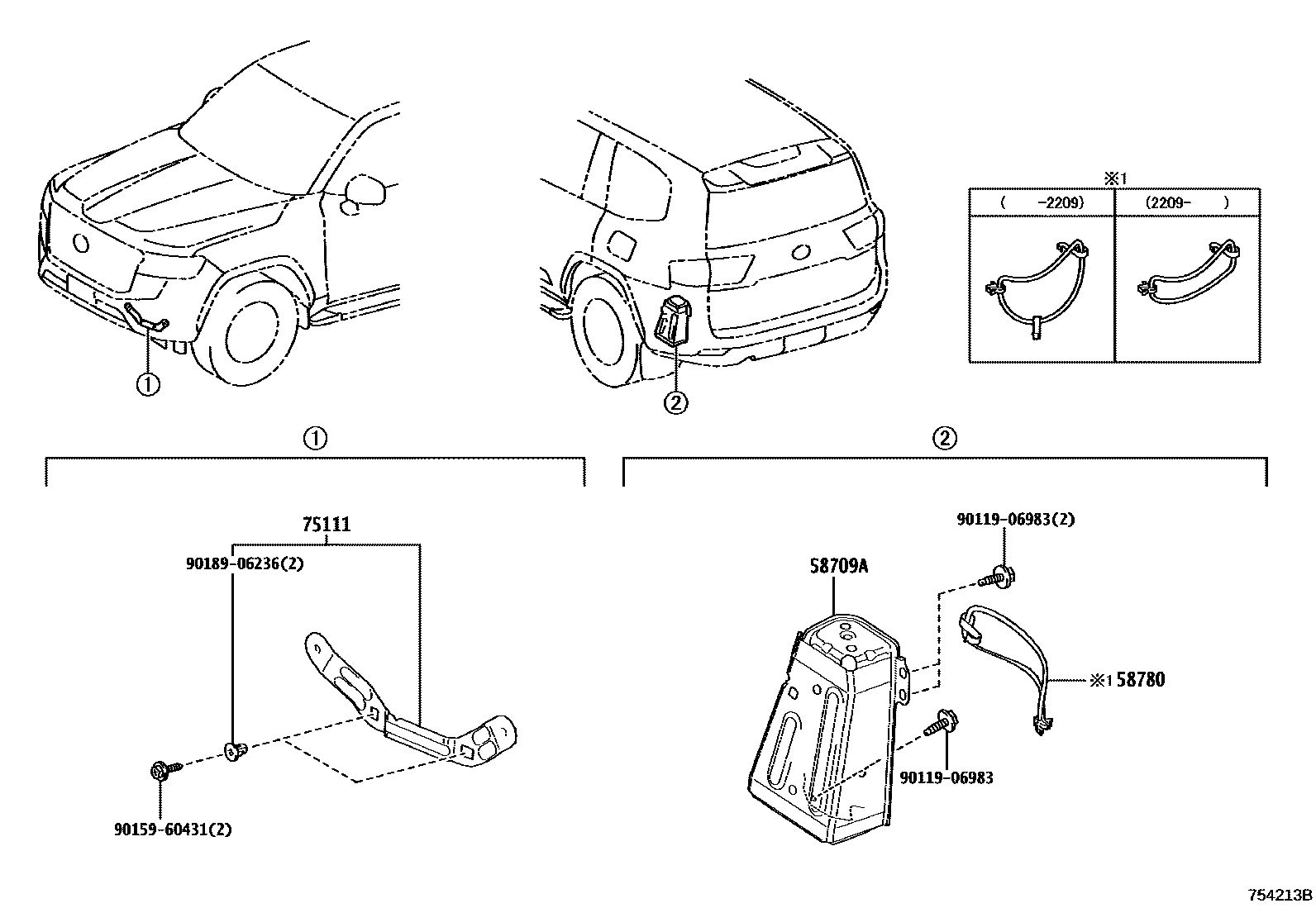

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

58709ACARRIER SUB-ASSY, JACK

main58709-60130iFJA300,GRJ300,VJA300202104-202208

sub58709-60131

main58709-60131iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202209-202411

58780BAND ASSY, TOOL BOX

main58780-60070iFJA300,GRJ300,VJA300202104-202209

main58780-95J01iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202209-202411

75111BRACKET, FRONT LICENSE PLATE

main75111-60250iGRJ300..A202104-202411

ELECTRICAL WINCH-WITH&LICENSE PLATE BRACKET-WITH(WITH(WINCH))

main75111-60250iGRJ300..G202104-202411

ELECTRICAL WINCH-WITH

9011906983

main90119-06983

9015960431

main90159-60431

9018906236

main90189-06236

6 parts on this diagram · 2 diagrams in section
