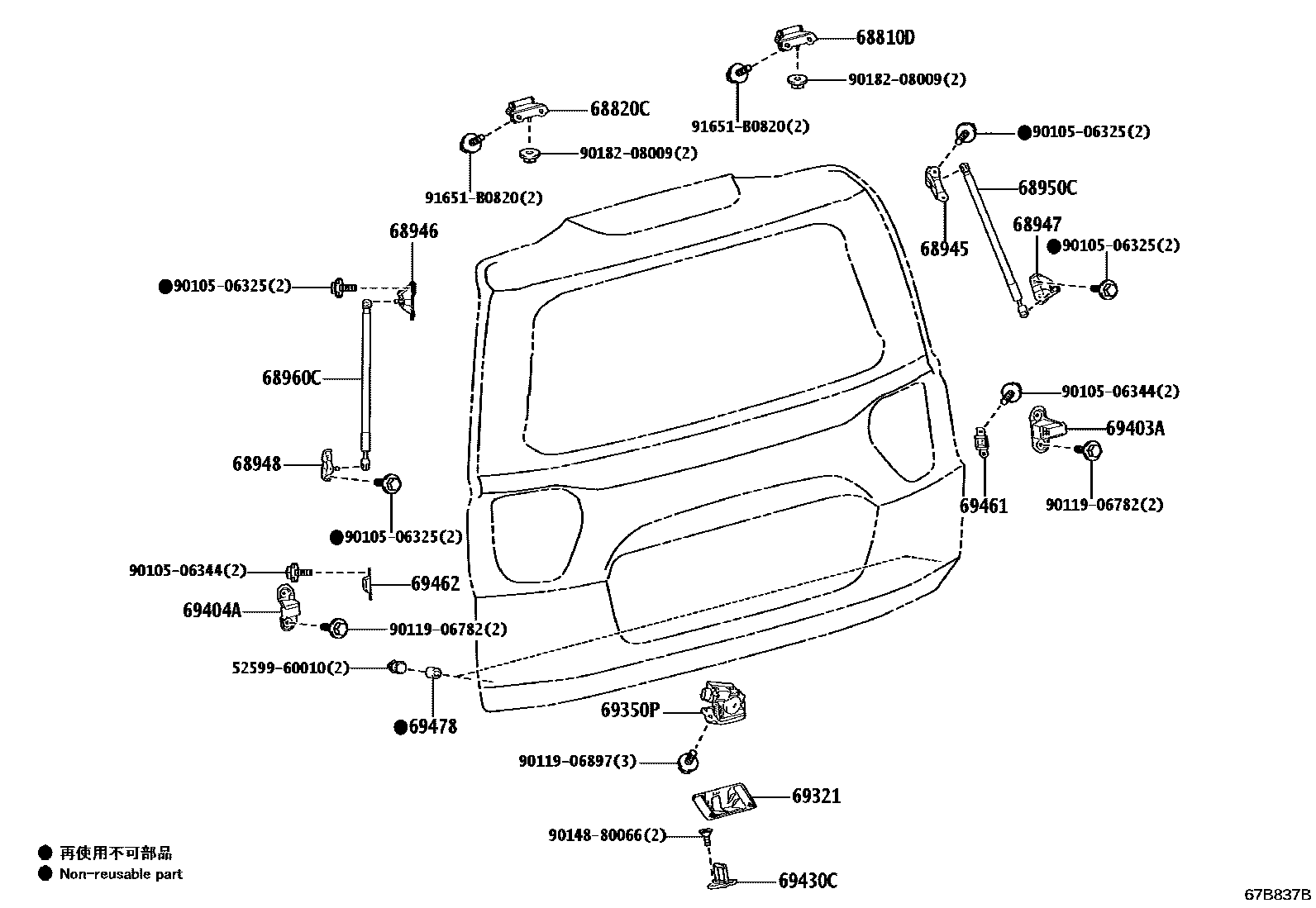

BACK DOOR LOCK & HINGE
68810DHINGE ASSY, BACK DOOR, RH
main68810-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
PAD T=1.5
main68810-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
PAD T=1.0
main68810-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
PAD T=2.0
68820CHINGE ASSY, BACK DOOR, LH
main68810-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
PAD T=1.5
main68810-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
PAD T=1.0
main68810-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
PAD T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
BACK DOOR-HATCH DOOR TYPE
main68945-60050iVJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,V,Z)..(ARL,EUR,GCC)202411
BACK DOOR-WITH(POWER BACK DOOR)
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
BACK DOOR-HATCH DOOR TYPE
main68946-60040iVJA300..5S..S;FJA300..V..EUR;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
BACK DOOR-WITH(POWER BACK DOOR)
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
BACK DOOR-HATCH DOOR TYPE
main68947-60020iVJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,V,Z)..(ARL,EUR,GCC)202411
BACK DOOR-WITH(POWER BACK DOOR)
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
BACK DOOR-HATCH DOOR TYPE
main68948-60040iVJA300..5S..S;FJA300..V..EUR;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
BACK DOOR-WITH(POWER BACK DOOR)
68950CSTAY ASSY, BACK DOOR, RH
BACK DOOR-HATCH DOOR TYPE
68960CSTAY SET, BACK DOOR, LH
BACK DOOR-HATCH DOOR TYPE
69321COVER, BACK DOOR LOCK
main69321-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
BACK DOOR-WITH(POWER BACK DOOR)
BACK DOOR-HATCH DOOR TYPE
main69350-42101iVJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,V,Z)..(ARL,EUR,GCC)202411
BACK DOOR-WITH(POWER BACK DOOR)
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
main67294-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-48030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
69461STOPPER, BACK DOOR SIDE MALE, RH
main67281-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69462STOPPER, BACK DOOR SIDE MALE, LH
main67282-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69478CUSHION, BACK DOOR LOWER STOPPER
main69478-60040×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
5259960010STOPPER, REAR BUMPER, UPPER
main52599-60010
9010506325
main90105-06325
9010506344
main90105-06344
9011906782
main90119-06782
9011906897
main90119-06897
9014880066
main90148-80066
9018208009
main90182-08009
91651B0820
main91651-B0820
24 parts on this diagram · 2 diagrams in section
