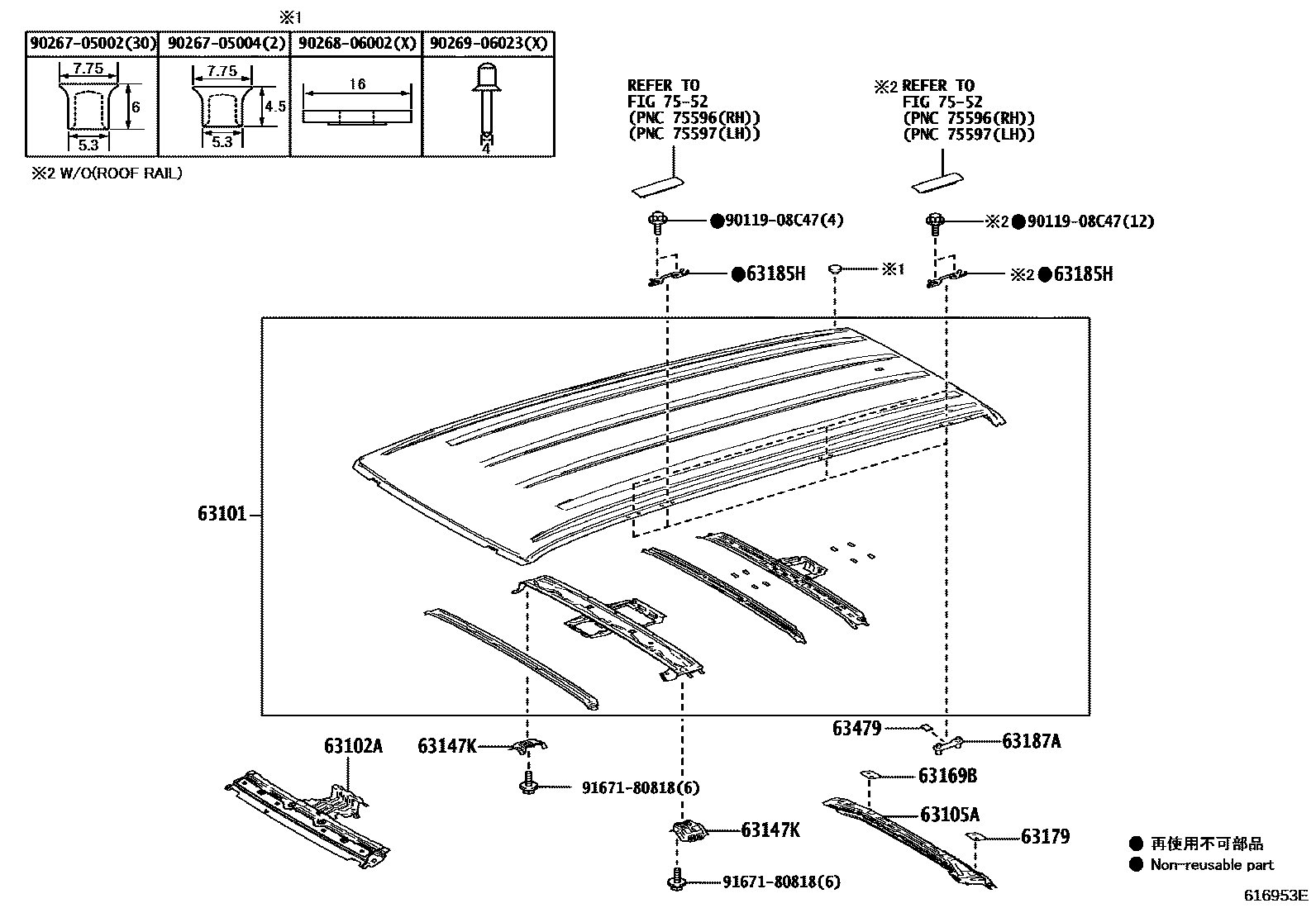

ROOF PANEL & BACK PANEL
63101PANEL SUB-ASSY, ROOF
MOON ROOF-WITH
MOON ROOF-WITH(REMOTE CONTROL)
UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT
ECUADOR SPEC&WINDSHIELD DEICER-WITH(FOR WIPER)&DATA COMMUNICATION MODULE-WITHOUT
ECUADOR SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
OMAN SPEC&DATA COMMUNICATION MODULE-WITHOUT
QATAR, BAHRAIN SPEC&DATA COMMUNICATION MODULE-WITHOUT
KUWAIT SPEC&DATA COMMUNICATION MODULE-WITHOUT
AZER, GEORGIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
UZBEKISTAN SPEC&DATA COMMUNICATION MODULE-WITHOUT
TAJIKISTAN, TURKMENISTAN SPEC&WINDSHIELD DEICER-WITH(FOR WIPER)&DATA COMMUNICATIONMODULE-WITHOUT
TAJIKISTAN, TURKMENISTAN SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
AZER, GEORGIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&DATACOMMUNICATION MODULE-WITHOUT
AZER, GEORGIA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER&DATACOMMUNICATION MODULE-WITHOUT
UZBEKISTAN SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEASMARKET)-*DA & 9INCH DISPLAY & 6SPEAKER
UZBEKISTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&DATA COMMUNICATION MODULE-WITHOUT
UZBEKISTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT
KYRGYZ SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 4SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-GLONA
KYRGYZ SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-GLONA
KYRGYZ SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-GL
KYRGYZ SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS)
UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT
KAZAKHSTAN SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEASMARKET)-LESS(WITH/BRACKET & COVER) & 4SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-G
KAZAKHSTAN SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEASMARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-G
KAZAKHSTAN SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEASMARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(ER
KAZAKHSTAN SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEASMARKET)-*DA & 9INCH DISPLAY & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS)
ARMENIA SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 4SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-GLON
ARMENIA SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-GLON
ARMENIA SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-G
ARMENIA SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS)
UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 2SPEAKER&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 4SPEAKER&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 4SPEAKER&DATACOMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER&DATACOMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
UAE SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
AZER, GEORGIA SPEC&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER
main63101-60D30iVJA300..5S..S;FJA300..V..GEN;FJA300..5S..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..7S..(A,G,S,Z);FJA300..(G,V)..(ARL,EUR);VJA300..LHD..S..(GCC,GEN);GRJ3202411
MOON ROOF-WITHOUT
63102APANEL SUB-ASSY, WINDSHIELD HEADER
MOON ROOF-WITH
MOON ROOF-WITH(REMOTE CONTROL)
main63102-60200iVJA300..5S..S;FJA300..V..GEN;FJA300..5S..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..7S..(A,G,S,Z);FJA300..(G,V)..(ARL,EUR);VJA300..LHD..S..(GCC,GEN);GRJ3202411
MOON ROOF-WITHOUT
main63102-60200iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
63105AFRAME SUB-ASSY, BACK DOOR OPENING
main63105-60290iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
63147KREINFORCEMENT, BACK DOOR OPENING FRAME
main63147-60070iVJA300..5S..S;FJA300..V..GEN;FJA300..5S..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..7S..(A,G,S,Z);FJA300..(G,V)..(ARL,EUR);VJA300..LHD..S..(GCC,GEN);GRJ3202411
MOON ROOF-WITHOUT
main63147-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
63169BPLATE, ROOF PANEL REINFORCEMENT, RH
main63169-48010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
63179PLATE, ROOF PANEL REINFORCEMENT, LH
main63179-48010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
63185HBRACKET, ROOF RACK
main63185-42020iVJA300..RHD..V;FJA300..5S..S..GEN;FJA300,VJA300..V..GCC;FJA300..(A,S,V,Z)..ARL202104
ROOF RACK-ROOF RAIL ONLY
main63185-42020iVJA300..RHD..V;FJA300..5S..S..GEN;FJA300,VJA300..V..GCC;FJA300..(A,S,V,Z)..ARL202411
ROOF RACK-ROOF RAIL ONLY(ACCESSORY)
main63185-42020iVJA300..RHD..V;FJA300..5S..S..GEN;FJA300,VJA300..V..GCC;FJA300..(A,S,V,Z)..ARL202411
ROOF RACK-WITHOUT
63187ABRACKET, ROOF RACK, REAR
main63187-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
ROOF RACK-ROOF RAIL ONLY(ACCESSORY)
63479RETAINER, ROOF INNER RACK
main63479-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
ROOF RACK-ROOF RAIL ONLY(ACCESSORY)
7552
9011908C47
main90119-08C47
9026705002
main90267-05002
9026705004
main90267-05004
9026806002
main90268-06002
9026906023
main90269-06023
9167180818
main91671-80818
16 parts on this diagram · 5 diagrams in section
