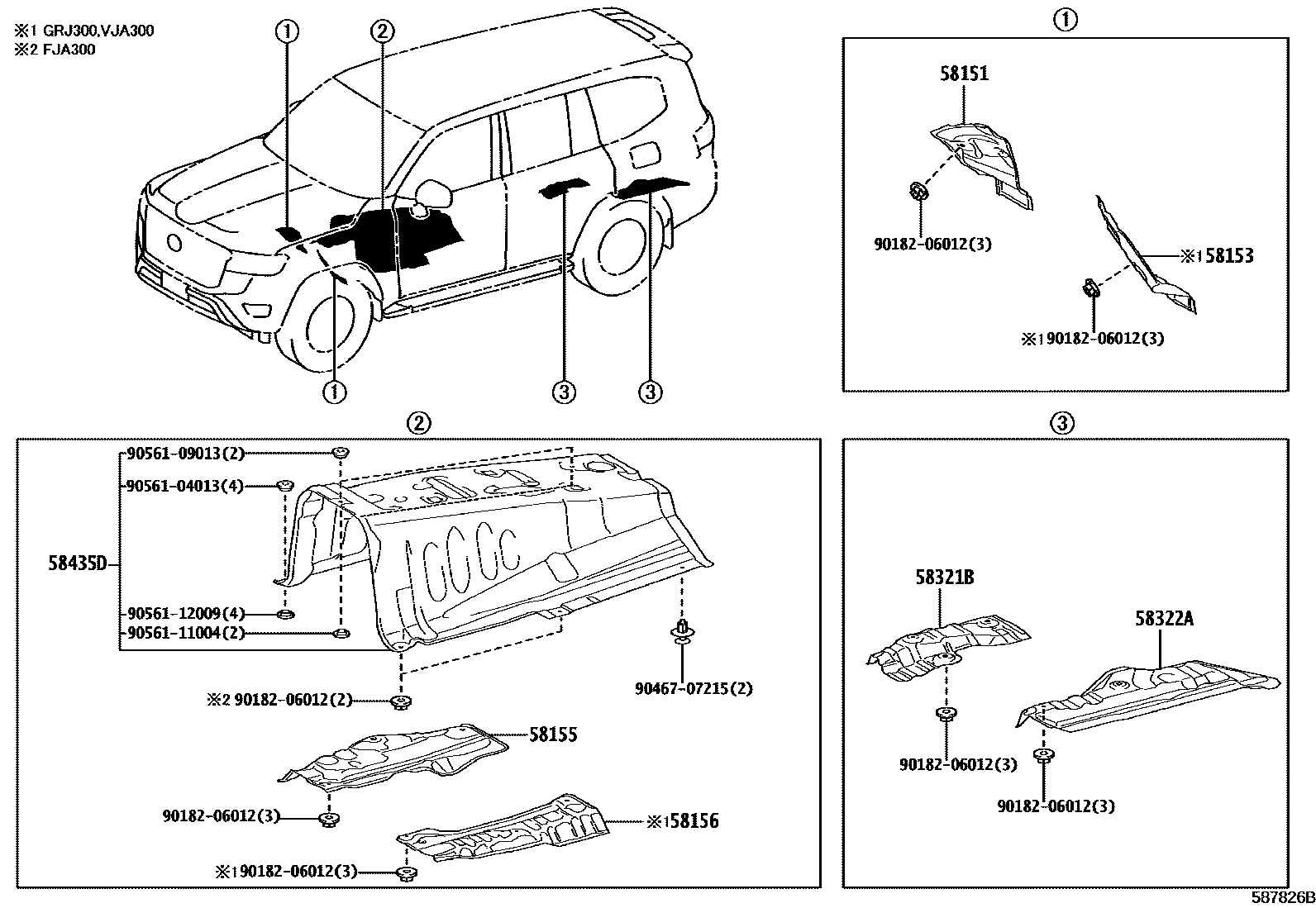

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main5814A-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

main58151-60150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main5814B-60020iVJA300..5S..S;VJA300..S..(GCC,GEN);GRJ300,VJA300..A,G,V,Z202411

main58153-60140iVJA300..5S..S;VJA300..S..(GCC,GEN);GRJ300,VJA300..A,G,V,Z202104-202411

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-60110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main5814D-60010iVJA300..5S..S;VJA300..S..(GCC,GEN);GRJ300,VJA300..A,G,V,Z202411

main58156-60080iVJA300..5S..S;VJA300..S..(GCC,GEN);GRJ300,VJA300..A,G,V,Z202104-202411

sub5814D-60010

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60080iGRJ300,VJA300202104-202105

sub58321-60081

main58321-60081iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202106-202411

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

58435DSILENCER, FRONT FLOOR, CENTER

main58563-60080iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main58563-60090iGRJ300202104-202411

9018206012

main90182-06012

9046707215

main90467-07215

9056104013

main90561-04013

9056109013

main90561-09013

9056111004

main90561-11004

9056112009

main90561-12009

13 parts on this diagram · 1 diagram in section
