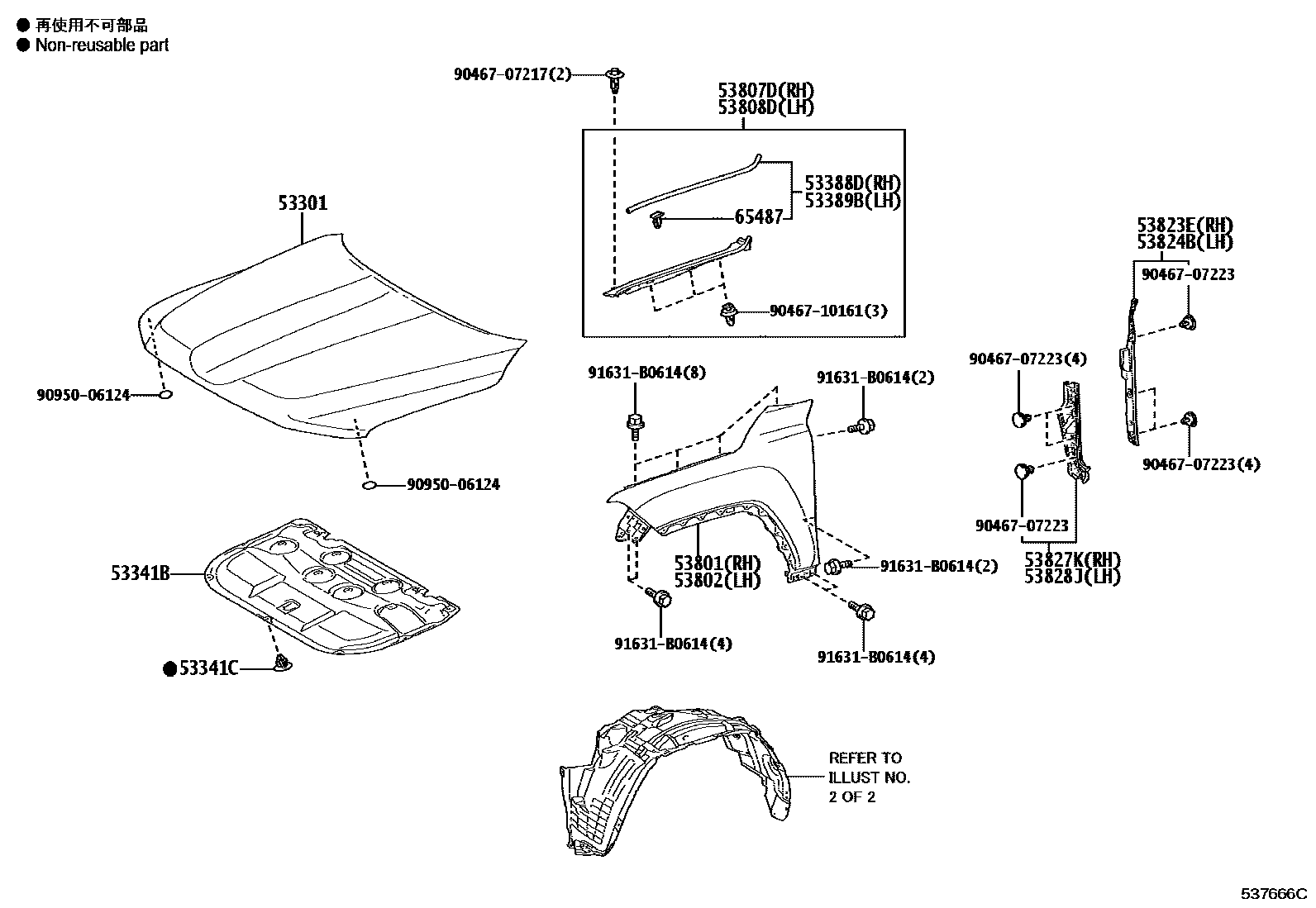

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-60720iFJA300,GRJ300,VJA300202104-202309

sub53301-60721

main53301-60721iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202310-202411

53341BINSULATOR, HOOD

main53341-60480iGRJ300202104-202411

main53341-60490iVJA300..7S..S..EUR202104-202411

main53341-60500iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202107-202411

53341CCLIP(FOR HOOD INSULATOR)

main53326-60050iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60090iFJA300,GRJ300,VJA300202104-202209

sub53388-60091

main53388-60091iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202210-202411

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-60110iFJA300,GRJ300,VJA300202104-202209

sub53389-60111

main53389-60111iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202210-202411

53801FENDER SUB-ASSY, FRONT RH

main53801-60E20iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

53802FENDER SUB-ASSY, FRONT LH

main53802-60E40iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

main53802-60E50iFJA300..G..ARL;FJA300..RHD..(A,Z)..GEN202107-202411

AIR CLEANER-SNORKEL TYPE

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-60200iFJA300,GRJ300,VJA300202104-202209

sub53807-60201

main53807-60201iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202210-202411

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-60150iFJA300,GRJ300,VJA300202104-202209

sub53808-60151

main53808-60151iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202210-202502

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-60020iFJA300,GRJ300,VJA300202104-202203

sub53823-60030

main53823-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202204-202411

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-60020iFJA300,GRJ300,VJA300202104-202203

sub53824-60030

main53824-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202204-202411

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60080iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

65487CLIP, CORNER PROTECTOR

main65487-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

9046707217

main90467-07217

9046707223

main90467-07223

9046710161

main90467-10161

9095006124

main90950-06124

91631B0614

main91631-B0614

19 parts on this diagram · 2 diagrams in section
