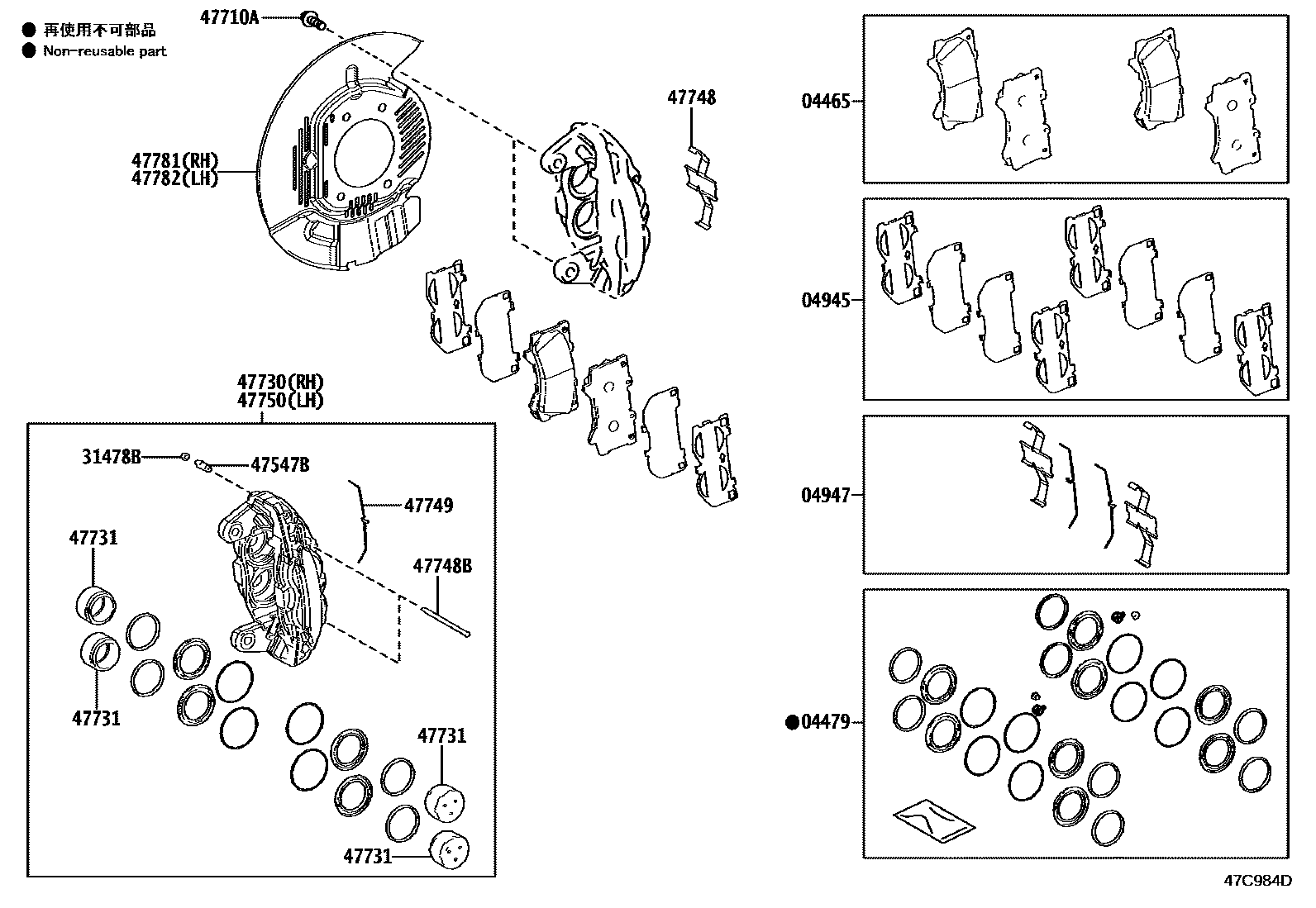

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60380iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥11,400202104-202411

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)¥3,690202104-202411

main04478-60100iGRJ300¥3,690202104-202411

main04478-60100iGRJ300¥3,690202411

TIRE & DISC WHEEL-245/75R17, 7J, STEEL

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,220202104-202411

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,470202104-202411

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥160202104-202411

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥230202104-202411

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14216iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

*14-1.5PX40-34

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60430iGRJ300¥36,700202411

TIRE & DISC WHEEL-245/75R17, 7J, STEEL

main47730-60430iGRJ300¥36,700202104-202411

main47730-60440iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥36,700202104-202411

47731PISTON, FRONT DISC BRAKE

main47731-60430iFJA300..G..ARL;FJA300..RHD..A..GEN;FJA300..7S..(A,G)..GCC¥1,080202411

TIRE & DISC WHEEL-245/75R17, 7J, STEEL

main47731-60430iGRJ300¥1,080202104-202411

main47731-60440iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)¥1,080202104-202411

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60440iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥570202104-202411

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥70202104-202411

47749CLIP, PIN HOLD

main47743-60280iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥180202104-202411

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60430iGRJ300¥36,700202104-202411

main47750-60430iGRJ300¥36,700202411

TIRE & DISC WHEEL-245/75R17, 7J, STEEL

main47750-60440iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)¥36,700202104-202411

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60220iGRJ300¥2,750202104-202411

main47781-60220iGRJ300¥2,750202411

TIRE & DISC WHEEL-245/75R17, 7J, STEEL

main47781-60230iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)¥3,060202104-202411

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60190iGRJ300¥2,750202411

TIRE & DISC WHEEL-245/75R17, 7J, STEEL

main47782-60190iGRJ300¥2,750202104-202411

main47782-60200iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)¥3,060202104-202411

15 parts on this diagram · 1 diagram in section
