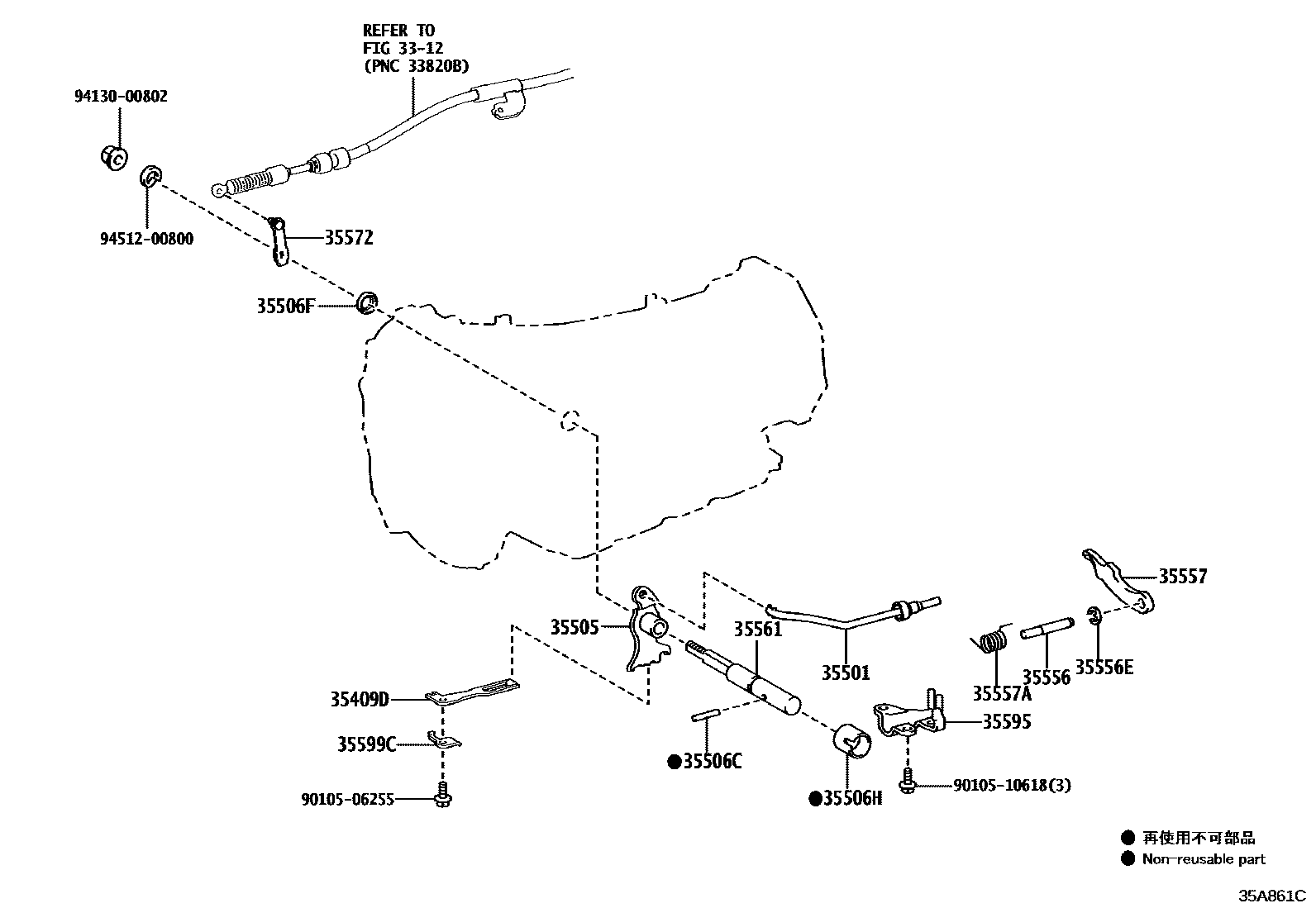

THROTTLE LINK & VALVE LEVER (ATM)

0001 1AJA0F 0002 1AC60F

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-60060iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35501ROD SUB-ASSY, PARKING LOCK

main35501-60050iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main35501-71020iGRJ300202104-202411

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-26040iGRJ300202104-202411

main35505-60110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGRJ300202104-202411

main35556-60030iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

35557PAWL, PARKING LOCK

main35557-60060iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main35557-71010iGRJ300202104-202411

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGRJ300202104-202411

main90949-03147iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35561SHAFT, MANUAL VALVE LEVER

main35561-50020iGRJ300202104-202411

main35561-60050iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-60160iGRJ300202104-202411

main35572-60170iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35595BRACKET, PARKING LOCK PAWL

main35595-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35595-71010iGRJ300202104-202411

35599CCOVER, MANUAL DETENT SPRING

main35599-60040iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

9010506255

main90105-06255

9010510618

main90105-10618

9413000802

main94130-00802

9451200800

main94512-00800

19 parts on this diagram · 2 diagrams in section
