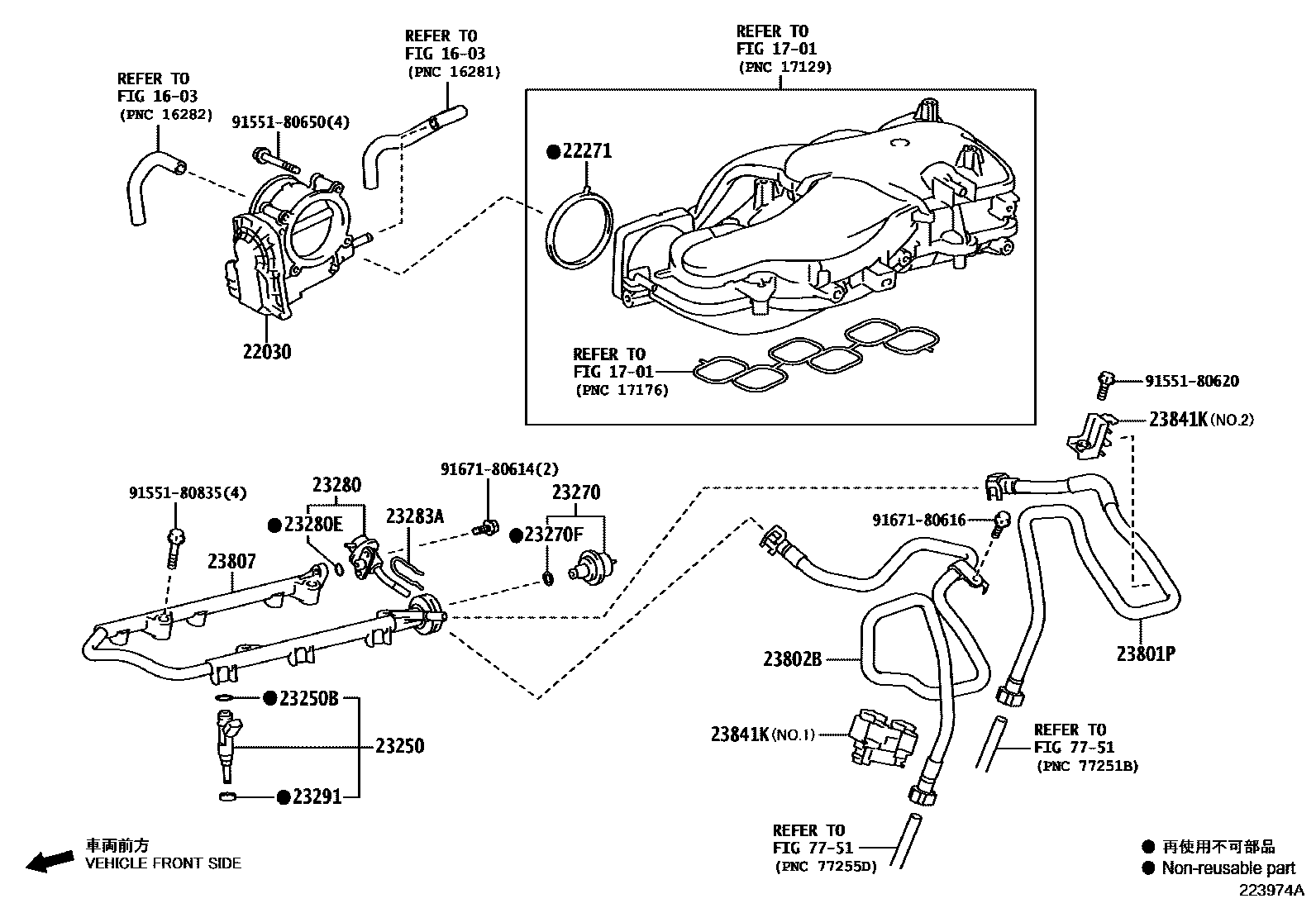

FUEL INJECTION SYSTEM
1603
1701
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-70060iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥52,700202104-202411
22271GASKET, THROTTLE BODY
main22271-70070iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥510202104-202411
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
main90301-05013iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥0202104-202411
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
main23291-28020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥310202104-202411
23801PPIPE SUB-ASSY, FUEL, NO.1
main23801-70150iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥3,460202104-202411
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23841KCLAMP, FUEL PIPE
main23841-21050iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥220202104-202411
NO.2
NO.1
7751
9155180620
9155180650
9155180835
9167180614
9167180616
22 parts on this diagram · 2 diagrams in section
