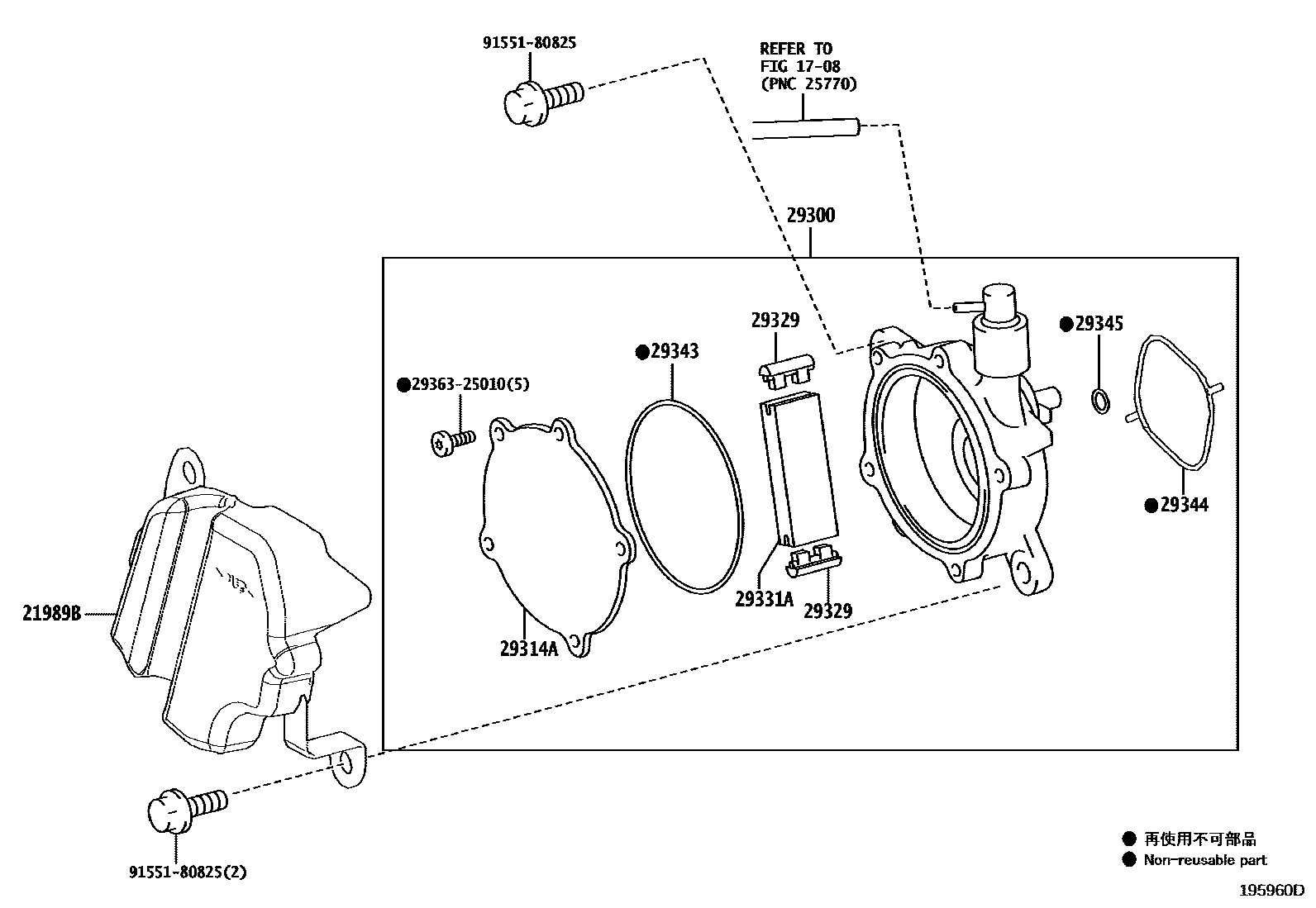

VACUUM PUMP

1708

21989BINSULATOR, PLATE

main21989-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

29300PUMP ASSY, VACUUM

main29300-52040iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

29314ACOVER, END

main29314-52040iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

29329CAP, VACUUM PUMP VANE

main29329-37010×2iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

29331AVANE, VACUUM PUMP

main29331-36011iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

29343RING, O VACUUM PUMP, NO.1

main29343-36010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

29344RING, O VACUUM PUMP, NO.2

main29344-22011iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

29345RING, O VACUUM PUMP, NO.3

main29345-22011iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9155180825

main91551-80825

11 parts on this diagram · 1 diagram in section
