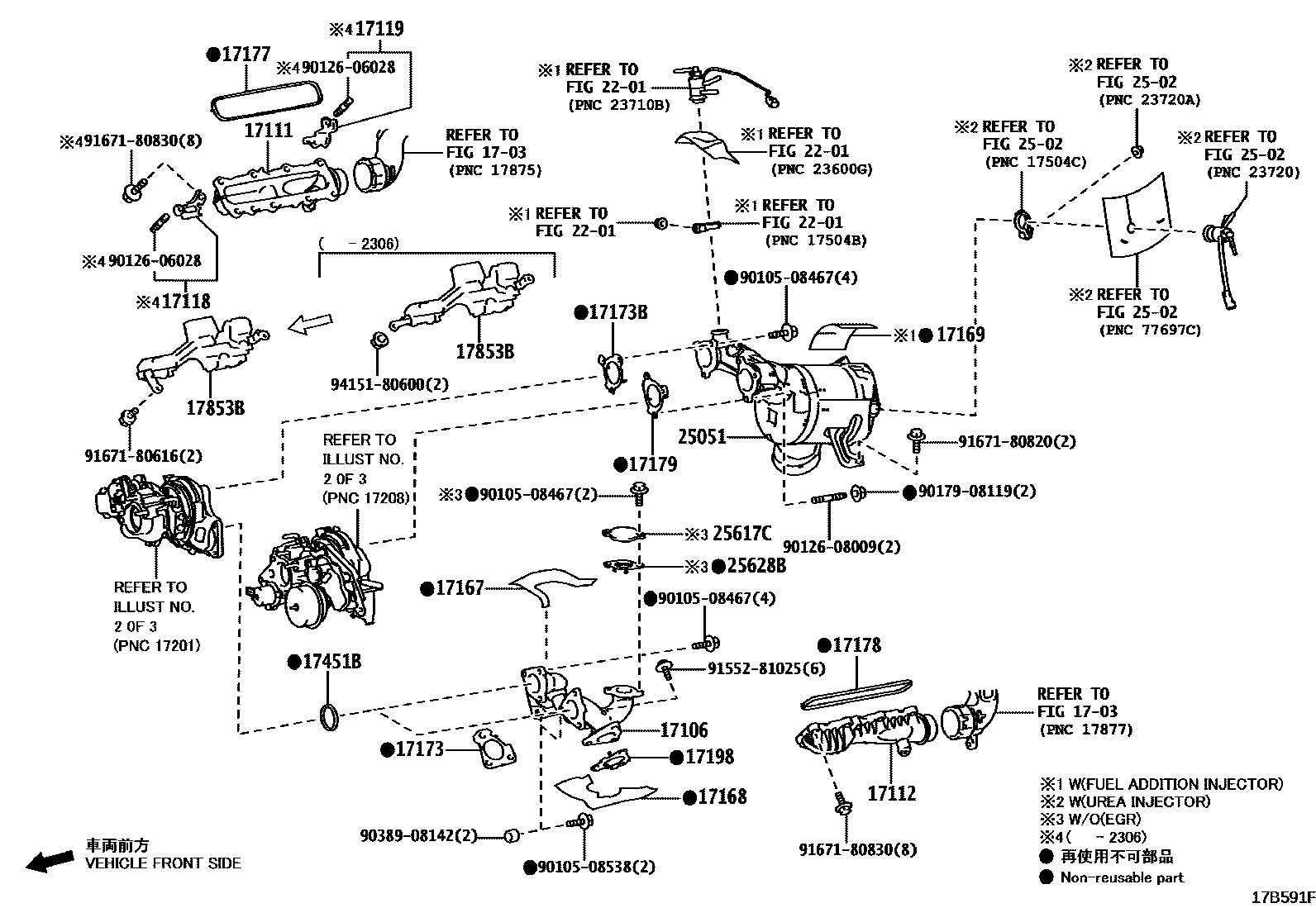

MANIFOLD
1703
17106PIPE SUB-ASSY, EXHAUST CROSSOVER
17111MANIFOLD, INTAKE
main17111-52060iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥23,400202107-202411
17112MANIFOLD, INTAKE, NO.2
17118STAY, MANIFOLD
main17118-70220iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥4,030202104-202411
17119STAY, MANIFOLD, NO.2
main17119-70070iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥4,480202104-202411
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
main17168-52030iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥6,100202107-202411
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
INDIA SPEC
BHUTAN SPEC
EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR)
EXHAUST EMISSION CONTROL-EURO6C,WITH(ON BOARD DIAGNOSIS & EGR)
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
ARGENTINA SPEC
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173BGASKET, EXHAUST MANIFOLD
main17451-52020iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥550202107-202411
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
main17177-52030iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥600202107-202411
main17177-70070iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥310202104-202411
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
main17177-52030iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥600202107-202411
17179GASKET, EXHAUST MANIFOLD, NO.2
17198GASKET, EXHAUST MANIFOLD, NO.2
17451BGASKET, EXHAUST PIPE
main17451-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥350202107-202411
17853BINSULATOR, INTAKE MANIFOLD
main17853-62010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥2,060202306-202411
2201
2502
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
sub25051-62030
BRUNEI SPEC
SRI LANKA SPEC
NEPAL SPEC
KENYA SPEC
CAMBODIA SPEC
GHANA SPEC
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS & EGR)
EXHAUST EMISSION CONTROL-EURO 3, WITHOUT(OBD), WITH(EGR)
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)
main25051-52040iF33AFTV..FJA300..A..GCC;F33AFTV..FJA300..LHD..7S..S..GEN;F33AFTV..FJA300..LHD..V..(GCC,GEN);F33AFTV..FJA300..RHD..(A,S,Z)..GEN202411
PHILIPPINES SPEC
main25051-52040iF33AFTV..FJA300..A..GCC;F33AFTV..FJA300..LHD..7S..S..GEN;F33AFTV..FJA300..LHD..V..(GCC,GEN);F33AFTV..FJA300..RHD..(A,S,Z)..GEN202411
COSTA RICA SPEC
EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR)
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6C,WITH(ON BOARD DIAGNOSIS & EGR)
INDIA SPEC
BHUTAN SPEC
main25051-62030iF33AFTV..FJA300..G..GEN;F33AFTV..FJA300..5S..GCC;F33AFTV..FJA300..ARL,EUR202301-202309
FIJI SPEC
sub25051-62040
main25051-62030iF33AFTV..FJA300..G..GEN;F33AFTV..FJA300..5S..GCC;F33AFTV..FJA300..ARL,EUR202301-202309
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
sub25051-62040
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
main25051-62040iF33AFTV..FJA300..ARL;F33AFTV..FJA300..G..GEN;F33AFTV..FJA300..(A,S,V,Z)..EUR202310-202411
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
main25051-62040iF33AFTV..FJA300..G..GEN;F33AFTV..FJA300..5S..GCC;F33AFTV..FJA300..ARL,EUR202310-202411
ARGENTINA SPEC
25617CPLATE, EGR HOLE COVER
25628BGASKET, EGR INLET
9010508467
9010508538
9012606028
9012608009
9017908119
9038908142
9155281025
9167180616
9167180820
9167180830
9415180600
33 parts on this diagram · 9 diagrams in section
