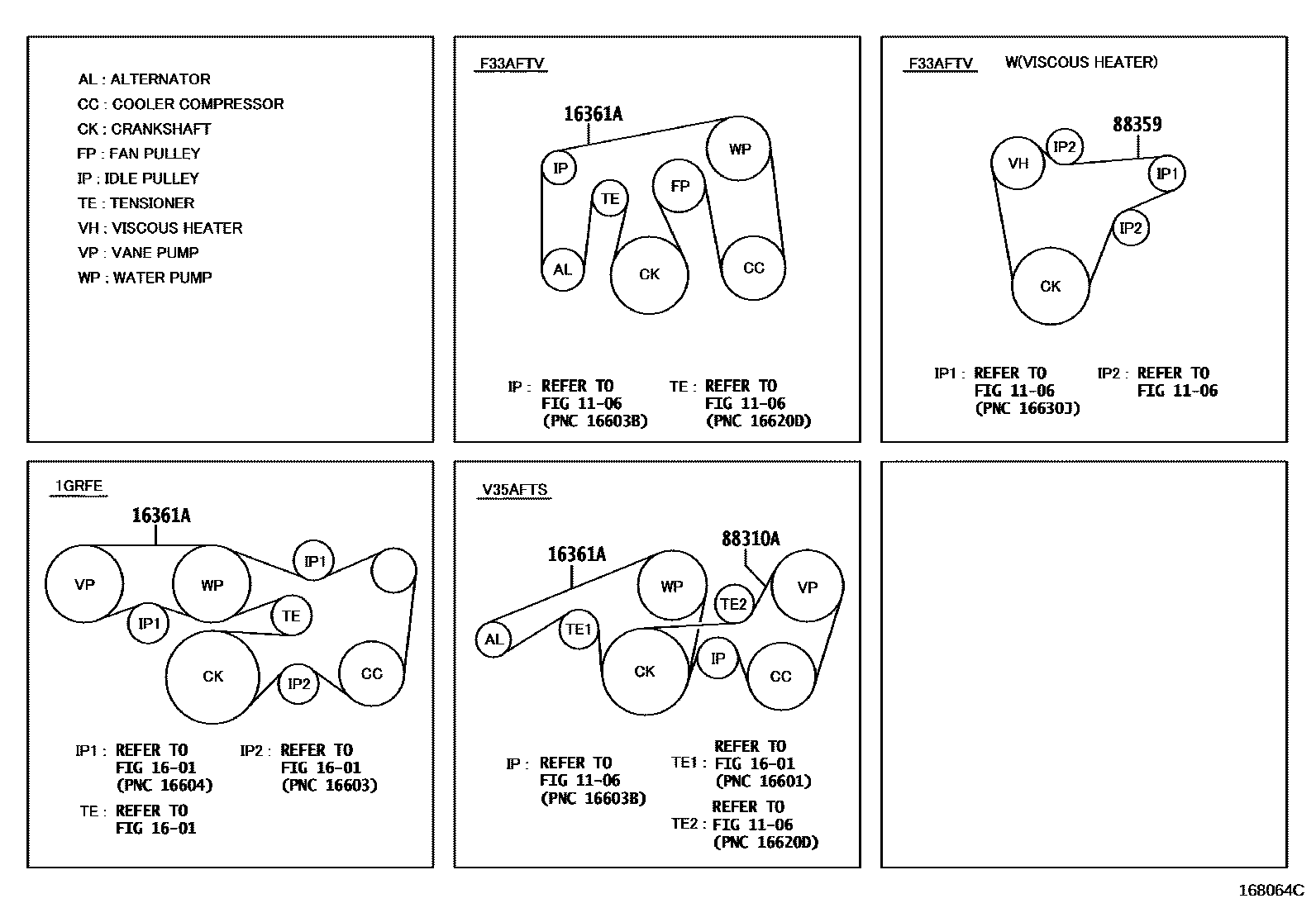

V-BELT

1106

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02774iF33AFTV..FJA300..5S..Z..GEN202107

main90916-02776iV35AFTS..VJA300..7S..S..EUR202104

main99367-H2150i1GRFE..GRJ300202104-202411

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02777iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202411

L=1262

88359BELT, V(FOR VISCOUS HEATER)

main99364-H1390iFJA300..EUR202107-202411

5 parts on this diagram · 1 diagram in section
