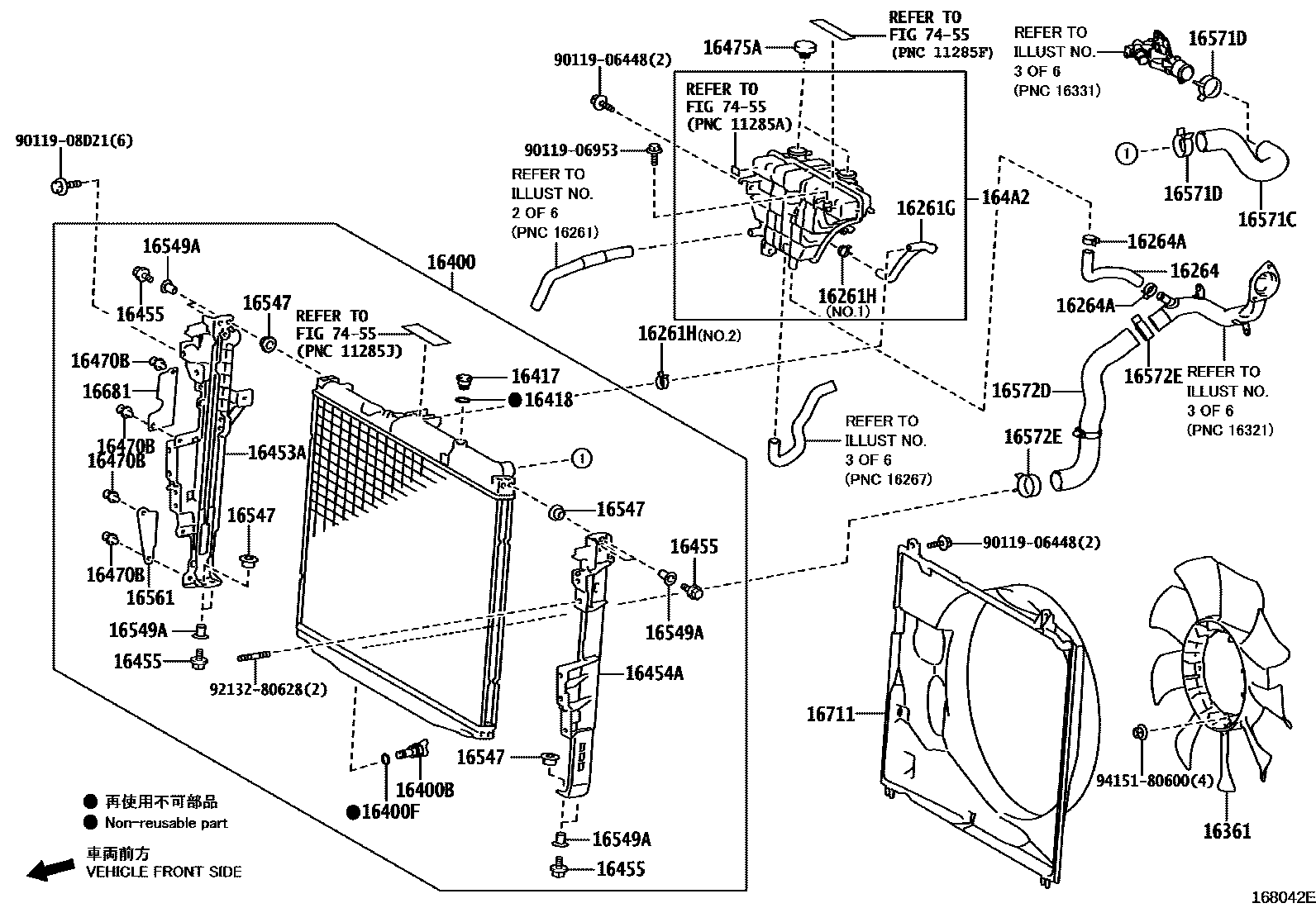

RADIATOR & WATER OUTLET

0001 1RADIATOR 0002 1INTERCOOLER COOLING RADIATOR 0003 1W(EXHAUST FUEL ADDITION INJEC0004 1W/O(EXHAUST FUEL ADDITION INJ0005 1TURBO PIPING 0006 1W(EGR PIPING) 0007 1W/O(EGR PIPING) 0008 1W(UREA INJECTOR) 0009 1W(ADDITION INJECTOR) 0010 1 0011 1 0012 1 0013 1RADIATOR SIDE 0014 1INTERCOOLER COOLING PIPE 0015 1ENGINE SIDE(1/2) 0016 1ENGINE SIDE(2/2)

16261HOSE, WATER BY-PASS

main16261-31100i1GRFE..GRJ300¥350202104-202411

main16261-70170iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥1,010202107-202411

16261GHOSE, WATER BY-PASS, NO.1

main16261-70160iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥790202104-202411

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main96136-51901iV35AFTS..VJA300..7S..S..EUR¥90202104-202411

NO.2:REFER ILLUST.

main96136-51901iV35AFTS..VJA300¥90202104-202202

NO.1:REFER ILLUST.

main96138-41901iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥120202203-202411

NO.1:REFER ILLUST.

16264HOSE, WATER BY-PASS, NO.2

main16264-31110i1GRFE..GRJ300¥350202104-202411

main16264-52030iF33AFTV..FJA300..5S..Z..GEN¥790202107-202411

main16264-70180iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥540202104-202411

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main96137-41301i1GRFE..GRJ300¥120202104-202411

main96138-42501iV35AFTS..VJA300¥180202104-202411

main96138-52501iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥180202105-202411

16361FAN

main16361-31060i1GRFE..GRJ300¥6,300202104-202411

main16361-52030iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥7,600202107-202411

main16361-70090iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥7,600202104-202411

16400RADIATOR ASSY

main16400-31B91i1GRFE..GRJ300202104-202111

sub16400-31B92

sub88897-60210

main16400-31B92i1GRFE..GRJ300202111-202411

main16400-52062iF33AFTV..FJA300¥53,900202107-202111

sub16400-52063¥53,900

sub88897-60210

main16400-52063iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥53,900202112-202411

main16400-70731iV35AFTS..VJA300¥53,900202104-202111

sub16400-70732¥53,900

sub88897-60210

main16400-70732iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥53,900202111-202411

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170i1GRFE..GRJ300¥500202104-202411

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1GRFE..GRJ300¥230202104-202411

16417COCK

main16417-70730iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥360202104-202411

16418PACKING

main16418-70730iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥210202104-202411

16453APLATE, RADIATOR SIDE SUPPORT, RH

main16453-70731i1GRFE..GRJ300¥4,020202104-202411

16454APLATE, RADIATOR SIDE SUPPORT, LH

main16454-70730iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥4,020202104-202411

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main16455-50370i1GRFE..GRJ300¥190202104-202411

16470TANK ASSY, RADIATOR RESERVE

main16470-31100i1GRFE..GRJ300202104-202411

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-07215iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥80202104-202411

16475ACAP, RESERVE TANK

main16475-28140iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥1,200202104-202411

164A2TANK, RESERVE SEALED W/O CAP

main164A2-70020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥8,100202104-202411

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-70730iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥480202104-202411

16549ACOLLAR, RADIATOR SUPPORT, NO.1

main16549-70730iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥360202104-202411

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-70030i1GRFE..GRJ300¥850202104-202411

16571CHOSE, RADIATOR, NO.1

main16571-31500i1GRFE..GRJ300¥1,220202104-202411

main16571-52030iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥1,350202107-202411

main16571-70430iV35AFTS..VJA300..7S..S..EUR¥1,350202104-202411

16571DCLIP, RADIATOR HOSE, NO.1

main96136-44301i1GRFE..GRJ300¥310202104-202411

main96136-54801iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥300202104-202411

16572DHOSE, RADIATOR, NO.2

main16572-31580i1GRFE..GRJ300¥1,620202104-202411

main16572-52050iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥1,490202107-202411

main16572-70360iV35AFTS..VJA300..7S..S..EUR¥1,490202104-202411

16572ECLIP, RADIATOR HOSE, NO.2

main96136-44301i1GRFE..GRJ300¥310202104-202411

main96136-54801iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)¥300202104-202411

16681PLATE, RADIATOR UPPER AIR GUIDE

main16681-70010i1GRFE..GRJ300¥350202104-202411

16711SHROUD, FAN

main16711-31661i1GRFE..GRJ300202104-202411

main16711-52031iF33AFTV..FJA300..5S..Z..GEN¥5,900202107-202411

main16711-70281iV35AFTS..VJA300..7S..S..EUR¥5,900202104-202411

7455

9011906448

main90119-06448¥90

9011906953

main90119-06953¥80

9011908D21

main90119-08D21¥80

9213280628

main92132-80628¥70

9415180600

main94151-80600¥60

33 parts on this diagram · 16 diagrams in section
