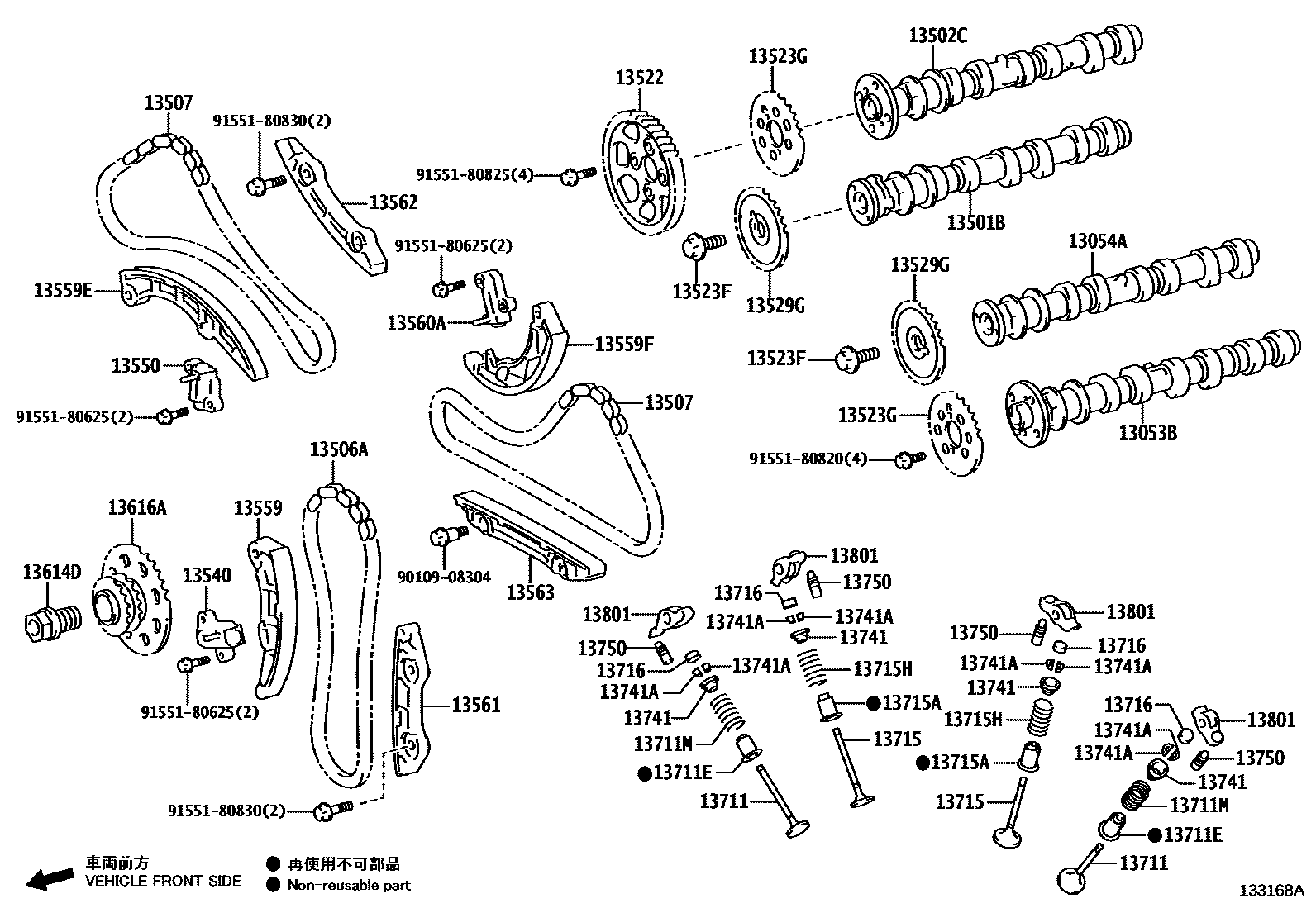

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

13053CAMSHAFT SUB-ASSY, NO.3

main13053-31090i1GRFE..GRJ300202104-202411

13053BCAMSHAFT SUB-ASSY, INTAKE, LH

main13053-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13053-70020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13054CAMSHAFT SUB-ASSY, NO.4

main13054-31090i1GRFE..GRJ300202104-202411

13054ACAMSHAFT SUB-ASSY, EXHAUST, LH

main13054-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13054-70010iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13501BCAMSHAFT SUB-ASSY, INTAKE, RH

main13501-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13501-70130iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13502CCAMSHAFT SUB-ASSY, EXHAUST, RH

main13502-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13502-70080iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13506CHAIN SUB-ASSY

main13506-31040i1GRFE..GRJ300202104-202411

13506ACHAIN SUB-ASSY, NO.1

main13506-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13506-70010iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13507CHAIN SUB-ASSY, NO.2

main13507-31020i1GRFE..GRJ300202104-202411

main13507-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13507-70010iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13522GEAR, PUMP DRIVE SHAFT

main13522-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13523FBOLT(FOR CAMSHAFT TIMING GEAR)

main90105-14180iF33AFTV..FJA300..5S..Z..GEN202107-202411

13523GSPROCKET, CAMSHAFT TIMING

main13523-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13529GSPROCKET ASSY, CAMSHAFT TIMING, NO.2

main13529-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13540TENSIONER ASSY, CHAIN, NO.1

main13540-31031i1GRFE..GRJ300202104-202411

main13540-52010iF33AFTV..FJA300..5S..Z..GEN202107-202411

main13540-70040iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13550TENSIONER ASSY, CHAIN, NO.2

main13550-31020i1GRFE..GRJ300202104-202411

main13550-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13550-70020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13559SLIPPER, CHAIN TENSIONER

main13559-31030i1GRFE..GRJ300202104-202411

main13559-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13559-70020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13559ESLIPPER, CHAIN TENSIONER, RH

main13559-52020iF33AFTV..FJA300..5S..Z..GEN202107-202411

13559FSLIPPER, CHAIN TENSIONER, LH

main13559-52030iF33AFTV..FJA300..5S..Z..GEN202107-202411

13560ATENSIONER ASSY, CHAIN, NO.3

main13560-31020i1GRFE..GRJ300202104-202411

main13560-52020iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13560-70020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-31030i1GRFE..GRJ300202104-202411

main13561-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13561-70020iV35AFTS..VJA300..7S..S..EUR202104-202411

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-31030i1GRFE..GRJ300202104-202411

main13562-52010iF33AFTV..FJA300..5S..Z..GEN202107-202411

main13562-70020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13563DAMPER, CHAIN VIBRATION, NO.3

main13563-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13614DCOUPLING, SUPPLY PUMP DRIVE

main13614-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13616ASPROCKET, SUPPLY PUMP SHAFT

main13616-52010iF33AFTV..FJA300..5S..Z..GEN202107-202411

13711VALVE, INTAKE

main13711-31101i1GRFE..GRJ300202104-202411

main13711-52020iF33AFTV..FJA300..5S..Z..GEN202107-202411

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101i1GRFE..GRJ300202104-202411

main90913-02132iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-29064iF33AFTV..FJA300..5S..Z..GEN202107-202411

13715VALVE, EXHAUST

main13715-31140i1GRFE..GRJ300202104-202411

main13715-52020iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112i1GRFE..GRJ300202104-202411

main90913-02133iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-30044iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13716CAP, VALVE STEM

main13716-25010iV35AFTS..VJA300..7S..S..EUR202104-202411

main13716-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13716-75020i1GRFE..GRJ300202104-202411

13741RETAINER, VALVE SPRING

main13741-31020i1GRFE..GRJ300202104-202411

main13741-36010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

13741ALOCK, VALVE SPRING RETAINER

main90913-03028iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202104-202411

13750ADJUSTER ASSY, VALVE LASH

main13750-26010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main13750-31030i1GRFE..GRJ300202104-202411

main13750-70020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011i1GRFE..GRJ300202104-202411

main13801-52010iF33AFTV..FJA300..5S..Z..GEN202107-202411

9010908304

main90109-08304

9155180625

main91551-80625

9155180820

main91551-80820

9155180825

main91551-80825

9155180830

main91551-80830

40 parts on this diagram · 3 diagrams in section
