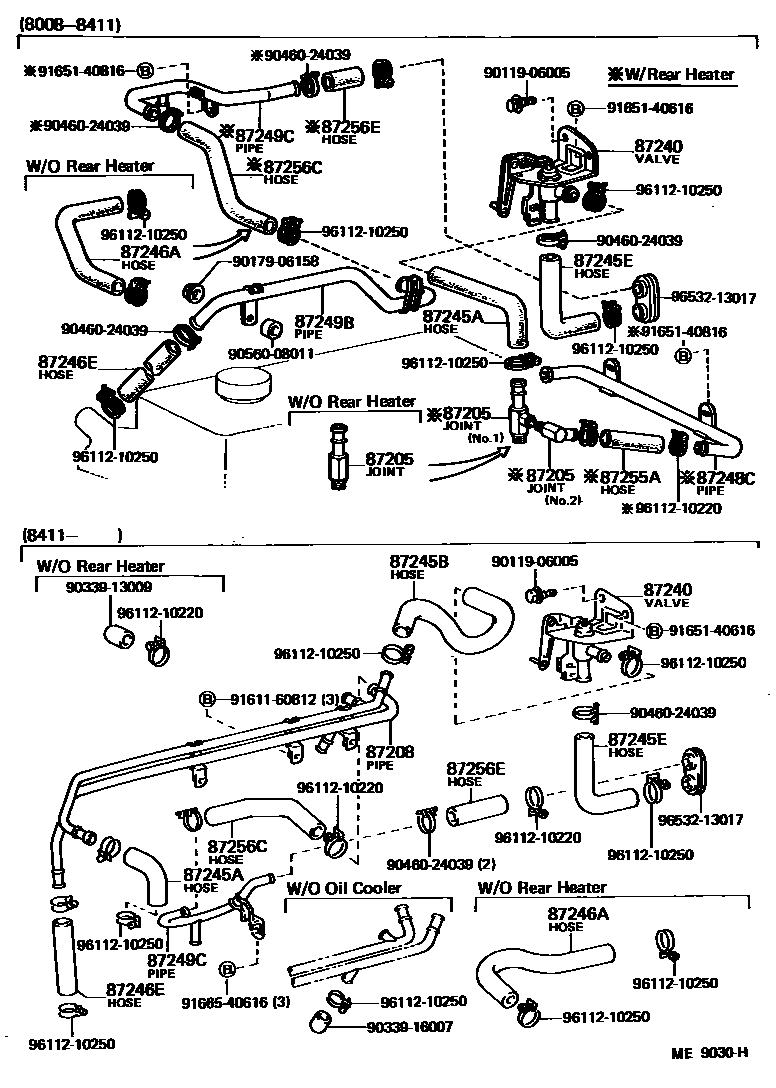

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1BENCH SEAT 0008 1SEPARATE SEAT

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30200iBJ60198008-198708

main87251-90A00iFJ60198008-198411

main87251-90A01iFJ60198008-198411

W/RR HEATER NO.1

main87251-90A02iFJ60198008-198411

W/RR HEATER NO.2

main87251-90A04iHJ60198008-198510

W/RR HEATER

main87251-90A05iHJ6#198510-198708

W/RR HEATER

sub87251-90A04

main87251-95400iHJ6#198008-198708

87208PIPE SUB-ASSY, HEATER WATER

main87208-90A12iHJ61198510-198608

main87208-90A13iHJ61198608-198708

main87208-90K06iFJ62198411-198708

87240VALVE ASSY, HEATER WATER

main87240-90A00iBJ60,FJ6#,HJ6#¥3,240198008-198708

FR HEATER

87245AHOSE, HEATER WATER, INLET A

main87245-90A01iFJ60¥1,390198008-198411

main87245-90A18iBJ60¥2,160198008-198708

main87245-90A36iHJ61¥950198510-198708

main87245-90K37iFJ62¥1,360198411-198612

sub87245-90K53¥1,340

main87245-90K53iFJ62¥1,340198612-198708

main99552-30500iHJ60¥880198008-198411

*H,L=390

sub99556-30500¥1,090

main99556-30390iHJ60¥800198411-198508

*H,L=390

sub99556-30500¥1,090

main99556-30500iHJ60¥1,090198508-198708

*H,L=390

87245BHOSE, HEATER WATER, INLET B

main87245-90A27iFJ62¥1,410198411-198708

main87245-90A37iHJ61¥1,190198510-198708

87245EHOSE, HEATER WATER, INLET E

main87245-90A00iBJ60,FJ6#,HJ6#¥810198008-198708

sub87245-14500¥1,120

87246AHOSE, HEATER WATER, OUTLET A

main87245-90A02iFJ60¥1,550198008-198411

main87245-90A03iHJ60..MTM¥1,140198008-198708

main87245-90A28iFJ62¥1,090198411-198708

main87245-90A38iHJ61¥1,480198510-198708

main99552-30500iBJ60¥880198008-198411

*H,L=430

sub99556-30500¥1,090

main99556-30460iBJ60198411-198508

*H,L=460

sub99556-30500¥1,090

main99556-30500iBJ60¥1,090198508-198708

*H,L=460

87246EHOSE, HEATER WATER, OUTLET E

main87245-90A10iHJ60¥890198008-198110

main87245-90A19iHJ60¥1,220198110-198708

main87245-90A26iBJ60¥810198309-198411

sub87245-3B531¥910

main87245-90A48iHJ61¥780198608-198708

sub87245-14500¥1,120

main87245-90K36iFJ62¥1,690198411-198708

main87247-20051iBJ60¥820198008-198309

sub87245-30331¥950

main99552-30300iFJ60..GEN¥550198008-198309

*H,L=210,W/COOLER

sub99556-30300¥640

main99552-30500iFJ60¥880198008-198309

*H,L=320

sub99556-30500¥1,090

main99556-30055iBJ60¥160198411-198508

*H,L=55

sub99556-30100¥220

main99556-30100iBJ60¥220198508-198708

*H,L=55

main99556-30100iHJ61¥220198510-198608

*H,L=60

main99556-30210iFJ60..GEN¥470198309-198411

*H,L=210,W/COOLER

sub99556-30300¥640

main99556-30320iFJ60¥670198309-198411

*H,L=320

sub99556-30500¥1,090

87248CPIPE, HEATER WATER INLET, C

main87248-90A08iFJ60198008-198411

main87248-90A12iBJ60198008-198110

main87248-90A17iBJ60¥0198110-198411

main87248-90K19iBJ60..GEN198411-198708

87249BPIPE, HEATER WATER OUTLET, B

main87248-60260iBJ60198008-198411

main87248-90A06iFJ60198008-198411

main87248-90A13iHJ60198008-198110

main87248-90A16iHJ60198110-198708

main87248-90K18iBJ60198411-198708

87249CPIPE, HEATER WATER OUTLET, C

main87248-90A07iFJ60,HJ60198008-198210

main87248-90A14iBJ60198008-198210

main87248-90A18iFJ60,HJ60¥0198210-198411

main87248-90A20iBJ60¥0198210-198411

main87248-90A25iFJ62..ARL,GEN198411-198708

main87248-90A26iBJ60..GEN198411-198708

main87248-90A27iHJ6#..4FC198411-198608

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-90A16iBJ60198008-198110

main87245-90A20iBJ60¥1,000198110-198411

main99552-20200iFJ60¥340198008-198101

*H,L=160

sub99556-20200¥360

main99552-20200iFJ60¥340198101-198309

*H,L=150

sub99556-20200¥360

main99556-20055iBJ60..GEN¥130198411-198508

*H,L=55

sub99556-20100¥210

main99556-20100iBJ60..GEN¥210198508-198708

*H,L=55

sub99556-20110¥260

main99556-20150iFJ60¥280198309-198411

*H,L=150

sub99556-20200¥360

87256CHOSE, REAR HEATER WATER OUTLET, C

main87245-90A06iFJ60¥1,310198008-198210

main87245-90A11iHJ60¥1,060198008-198210

main87245-90A13iBJ60..GEN¥1,550198008-198708

main87245-90A21iFJ60¥1,090198210-198411

main87245-90A25iHJ60198210-198411

main87245-90A30iFJ62..ARL,GEN¥1,070198411-198708

main87245-90A33iHJ60..MTM¥1,420198411-198708

main87245-90A34iHJ60..4FC¥1,550198411-198608

main87245-90A44iHJ61..5F¥1,210198510-198708

main87245-90A45iHJ61..4FC¥1,480198510-198708

sub87245-90A34¥1,550

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-90A14iBJ60¥1,380198008-198210

main87245-90A22iBJ60¥1,320198210-198411

main87245-90A32iBJ60..GEN¥1,630198411-198708

main99552-30100iHJ6#¥210198008-198708

*H,L=60

sub99556-30100¥220

main99556-30060iFJ6#..ARL,EUR,GEN¥170198309-198508

*H,L=60

sub99556-30100¥220

main99556-30100iFJ62¥220198508-198708

*H,L=60

9011906005

main90119-06005¥80

9017906158

main90179-06158¥70

9033913009

main90339-13009¥240

9033916007

main90339-16007¥310

9046024039

main90460-24039

9056008011

main90560-08011¥240

9161160812

main91611-60812¥140

9165140616

main91651-40616¥60

9165140816

main91651-40816¥80

9166540616

main91665-40616¥70

9611210220

main96112-10220

9611210250

main96112-10250¥240

9653213017

main96532-13017

27 parts on this diagram · 7 diagrams in section
