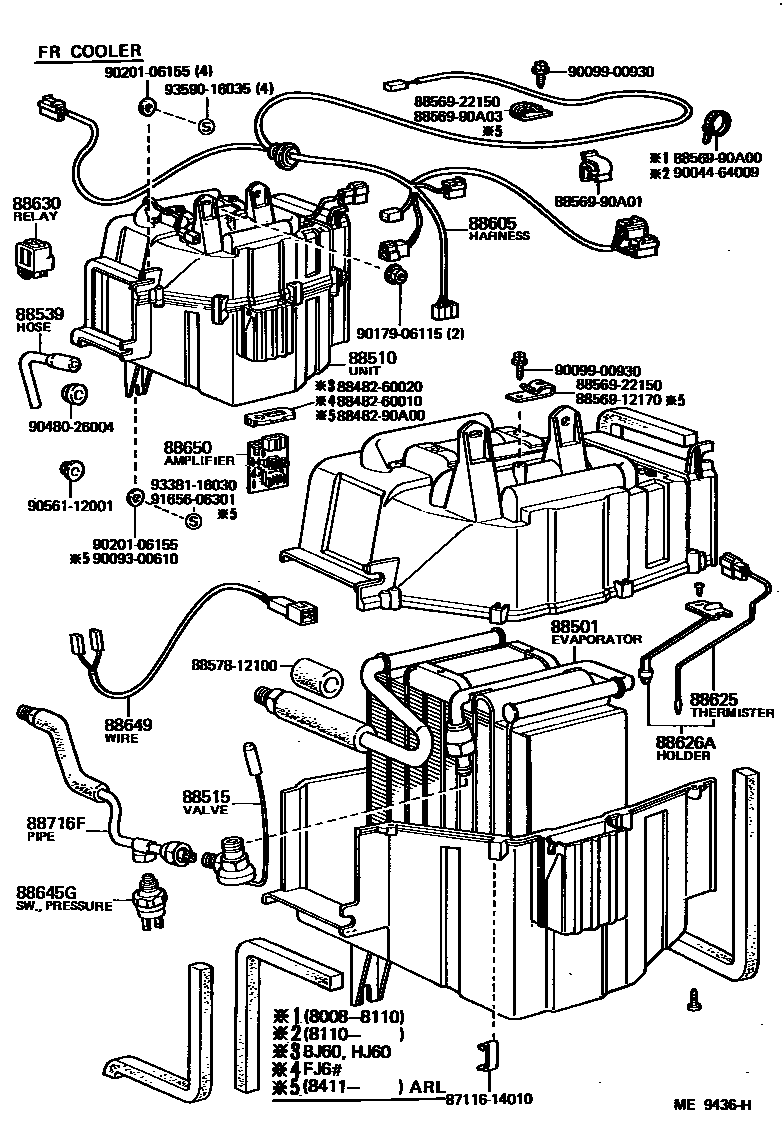

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0003 1 0004 1*ODAC 0005 1 0006 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-90A00iBJ60,FJ60,HJ60..RHD..(ARL,GEN)198008-198411

main88501-90A01iHJ60..HRF..EUR198008-198411

sub88501-90A07

main88501-90A02iBJ60,FJ62,HJ6#..RHD..(ARL,GEN)198411-198604

W/*ODAC,FR

sub88501-90A06

main88501-90A02iFJ62,HJ60..HRF..ARL198411-198604

FR

sub88501-90A06

main88501-90A03iHJ60..LHD..SRF..LUB..EUR198411-198604

FR

sub88501-90A07

main88501-90A04iFJ62,HJ6#..ARL,GEN198411-198604

RR

sub88501-90A08

main88501-90A05iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198510-198708

COOL BOX

main88501-90A06iFJ62..HRF..ARL198604-198708

FR

main88501-90A06iBJ60,FJ62,HJ61..RHD;HJ60..RHD..SRF..(ARL,GEN)198604-198708

W/*ODAC,FR

main88501-90A07iBJ60,FJ62,HJ60..LHD..(GEN,ME)198604-198708

FR

main88501-90A08iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198604-198708

RR

88510UNIT ASSY, COOLER

main88510-90A00iBJ60,FJ60,HJ60..RHD..(ARL,GEN)198008-198411

main88510-90A01iBJ60,FJ60,HJ60..LHD..GEN198008-198411

main88510-90A02iBJ60,FJ62,HJ60..RHD..GEN198411-198708

FR

main88510-90A03iHJ60..SOB..GEN;BJ60,FJ62..RHD..GEN198411-198708

W/BOOST VENTILATOR,FR

main88510-90A04iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198411-198708

FR

main88510-90A05iBJ60..LHD..GEN198411-198708

W/BOOST VENTILATOR,FR

main88510-90A06iFJ62..HRF..ARL198411-198510

W/*ODAC,FR

main88510-90A07iHJ60..HRF..ARL198411-198510

W/*ODAC,FR

main88510-90A08iFJ62..LHD..HRF198411-198510

W/*ODAC,FR

main88510-90A09iFJ62..LHD..HRF198411-198510

W/*ODAC & BOOST VENTILATOR,FR

main88510-90A10iFJ62,HJ6#..ARL198411-198708

FR

main88510-90A12-03iFJ62..HRF198411-198510

RR,GRAY,SHADOW GRAY,TRIM1#

main88510-90A12-06iHJ60..HRF..ARL198411-198510

RR,BROWN,SEPIA BROWN,TRIM4#

main88510-90A15iFJ62..RHD198510-198708

W/*ODAC,FR

main88510-90A16iFJ62..RHD..GEN198510-198708

W/*ODAC & BOOST VENTILATOR,FR

main88510-90A17iHJ6#..RHD..(ARL,GEN)198510-198708

W/*ODAC,FR

main88510-90A18iHJ60..SOB..GEN198510-198708

W/*ODAC & BOOST VENTILATOR,FR

main88510-90A19iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198510-198708

W/*ODAC

main88510-90A19iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198510-198708

W/*ODAC,FR

main88510-90A20iFJ62..LHD..GEN198510-198708

W/*ODAC & BOOST VENTILATOR,FR

main88510-90A21iHJ60..LHD..GEN198510-198708

W/*ODAC

main88510-90A22iFJ62..WGG..SRF..SOB198510-198708

RR

main88510-90A29iFJ62,HJ6#..HRF..(ARL,GEN)198510-198708

RR

88515VALVE, COOLER EXPANSION

main88515-16030iFJ62..HRF198411-198510

RR

sub88515-16031

main88515-20040iHJ60..HRF..EUR198309-198403

sub88515-16031

main88515-20040iBJ60,FJ62,HJ60..GEN,ME198008-198510

FR

sub88515-16031

main88515-87003iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198510-198708

COOL BOX

main88515-87004iBJ60,FJ62,HJ60..GEN,ME198510-198708

W/*ODAC

main88515-87004iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198411-198708

FR

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-90A00iBJ60,FJ6#,HJ6#..ARL,GEN,ME198008-198708

FR

main88539-90A00iHJ60..HRF..EUR198309-198403

main88539-90A01iHJ60..HRF..ARL198411-198708

RR

main88539-90A02iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198510-198708

COOL BOX

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-90A00iFJ60..RHD..GEN198008-198411

main88605-90A01iFJ60..LHD..GEN198008-198411

main88605-90A04iFJ60..ARL198008-198411

main88605-90A07iHJ60..HRF..EUR198008-198411

main88605-90A08iHJ60..RHD..(ARL,GEN)198008-198411

main88605-90A09iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198411-198708

FR

main88605-90A10iHJ60..SOB..GEN;HJ60..LHD..GEN;BJ60,FJ62..GEN,ME198411-198708

W/BOOST VENTILATOR,FR

main88605-90A11iFJ62..HRF198411-198510

W/*ODAC,FR

main88605-90A12iFJ62..LHD..HRF198411-198510

W/*ODAC & BOOST VENTILATOR,FR

main88605-90A15iFJ62..HRF198411-198604

RR

main88605-90A17iFJ62..ARL,GEN198510-198708

W/*ODAC,FR

main88605-90A18iFJ62..GEN198510-198708

W/*ODAC & BOOST VENTILATOR,FR

main88605-90A19iHJ6#..ARL,GEN198510-198708

W/*ODAC,FR

main88605-90A20iHJ60..SOB..GEN198510-198708

W/*ODAC & BOOST VENTILATOR,FR

main88605-90A22iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198510-198708

COOL BOX

main88605-90A25iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198604-198708

RR

88625THERMISTOR, COOLER, NO.1

main88625-87003iFJ62,HJ6#..LUB..(ARL,GEN)198510-198708

COOL BOX

main88625-90A00iBJ60,FJ60,HJ60..ARL,GEN198008-198411

sub88625-12070

main88625-95A00iHJ60..HRF..ARL198411-198708

sub88625-28150

88626AHOLDER, THERMISTOR

main88626-90A00iBJ60,FJ6#,HJ6#..RHD..(ARL,GEN)198008-198708

main88626-90A01iHJ60..HRF..EUR198008-198708

88630RELAY ASSY, COOLER

main85913-90A00iHJ60..LHD..SRF..LUB..EUR198309-198411

main85913-90A01iFJ60..ARL198008-198411

main88630-14010iFJ62..HRF198411-198708

W/*ODAC

main88630-90A00iFJ62,HJ6#..ARL,GEN198510-198708

sub88630-14010

88645GSWITCH, PRESSURE

main88645-22020iHJ60..HRF..EUR198008-198508

sub88645-30250

main88645-30250iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198508-198708

88649WIRING, COOLER, NO.2

main88605-90A21iFJ62..WGG..SRF..SOB198510-198708

main88648-90A00iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198008-198708

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-60020iFJ60..ARL,GEN198008-198411

main88650-60030iBJ60,HJ60..ARL,GEN198008-198411

main88650-60040iHJ60..HRF..EUR198309-198411

main88650-90A00iFJ62..HRF198411-198510

W/*ODAC

main88650-90A02iFJ62198411-198708

main88650-90A03iBJ60,HJ6#..ARL,GEN,ME198411-198708

main88650-90A04iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198411-198708

main88650-90A05iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198510-198708

W/*ODAC

main88650-90A06iFJ62,HJ6#..LUB..(ARL,GEN)198510-198708

COOL BOX

main88650-95J02iHJ60..HRF..ARL198411-198708

W/*ODAC

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-90A04iBJ60,FJ62,HJ60..RHD..GEN198008-198505

FR

sub88716-90A26

main88716-90A04iBJ60,FJ62,HJ60..RHD..GEN198411-198505

W/*ODAC,FR

sub88716-90A26

main88716-90A05iBJ60,FJ60,HJ60..LHD..GEN198008-198411

FR

sub88716-90A27

main88716-90A05iHJ60..HRF..EUR198309-198403

sub88716-90A27

main88716-90A11iFJ62..HRF198411-198708

RR

main88716-90A26iFJ62..LHD..HRF198505-198510

W/*ODAC;W/*ODAC,FR

main88716-90A26iBJ60,FJ62,HJ6#..RHD..(ARL,GEN)198505-198708

FR

main88716-90A27iHJ60..LHD..SRF..LUB..EUR198411-198708

FR

main88716-90A27iFJ62..LHD..HRF198411-198510

W/*ODAC & BOOST VENTILATOR,FR

main88716-90A28iFJ62,HJ6#..RHD..(ARL,GEN)198510-198708

W/*ODAC,FR

main88716-90A29iFJ62,HJ60..LHD..GEN198510-198708

W/*ODAC,FR

main88716-90A33iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198510-198708

COOL BOX

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8848260010CAP, COOLER

main88482-60010

8848260020CAP, COOLER

main88482-60020

8848290A00CAP, COOLER

main88482-90A00

8856912170CLAMP (FOR COOLER RELAY)

main88569-12170

8856922150CLAMP (FOR COOLER RELAY)

main88569-22150

8856990A00CLAMP (FOR COOLER RELAY)

main88569-90A00

8856990A01CLAMP (FOR COOLER RELAY)

main88569-90A01

8856990A03CLAMP (FOR COOLER RELAY)

main88569-90A03

8857812100PAKING, COOLER AIR DUCT

main88578-12100

9004464009

main90044-64009

9009300610

main90093-00610

9009900930

main90099-00930

9017906115

main90179-06115

9020106155

main90201-06155

9048026004

main90480-26004

9056112001

main90561-12001

9165606301

main91656-06301

9338116030

main93381-16030

9359016035

main93590-16035

32 parts on this diagram · 5 diagrams in section
