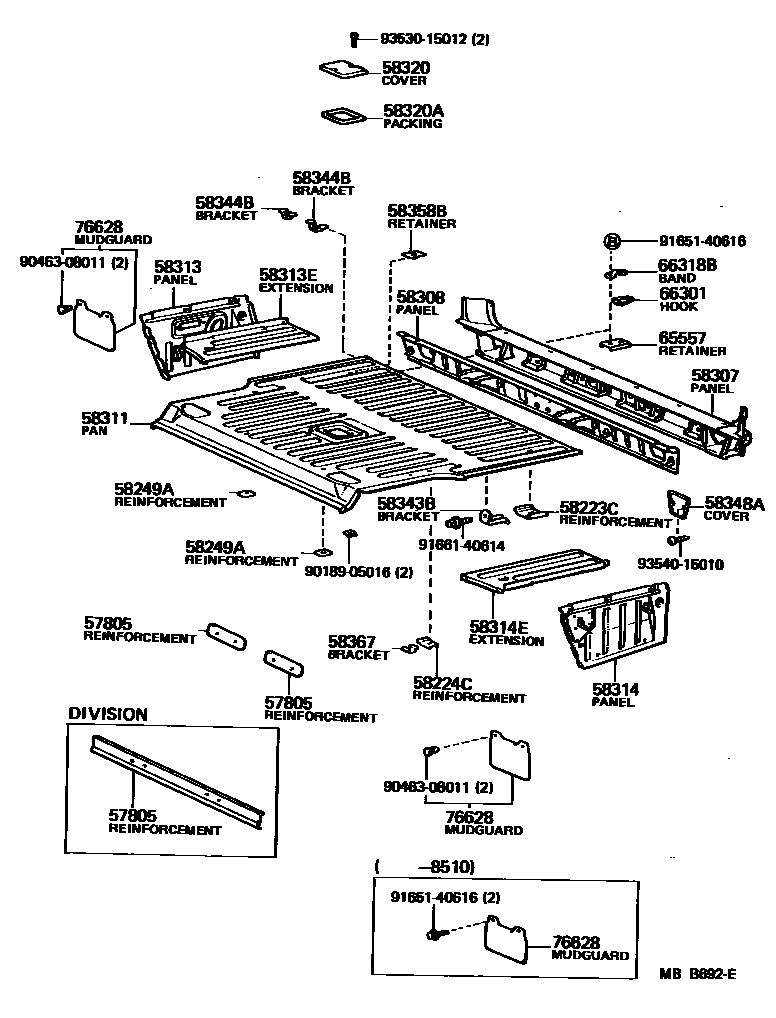

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-90A00×2iBJ60,FJ62,HJ60..SOB198411-198510

main57805-90A01iBJ60,FJ62,HJ60..WGV..(GEN,ME)198411-198708

W/DIVISION RR SEAT

58223CREINFORCEMENT, SEAT SET, NO.1

main58223-90A00×2iBJ60198110-198411

3RD SEAT TYPE

main58223-90A02×2iHJ60..HRF198305-198411

3RD SEAT

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-90A00×2iFJ60..4F..WGG..HRF;BJ60,FJ60..LHD..WGV..GEN198008-198411

3RD SEAT TYPE

main58224-90A01iFJ62..WGG..SRF..SOB198510-198708

W/DIVISION SEAT,PARALLEL,*ODAC

58249AREINFORCEMENT, REAR SEAT MOUNTING

main58249-90A00×2iBJ60,FJ60..LHD..SOB..GEN198008-198210

3RD SEAT TYPE

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-90A00iFJ60,HJ60..LUB198008-198210

main58307-90A01iBJ60,FJ6#,HJ6#..SOB198008-198708

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-90A01iBJ60,FJ6#,HJ60198008-198510

main58308-90A02iBJ60,FJ62,HJ6#198510-198703

sub58308-90A03

main58308-90A05iBJ60,FJ62,HJ6#..SOB198703-198708

58311PAN, REAR FLOOR

main58311-90A00iBJ60,FJ60,HJ60198008-198305

sub57635-90A01

main58311-90A04iFJ62,HJ60..HRF..ARL198411-198510

W/*ODAC,TRANSVERSE 3RD SEAT

main58311-90A06iHJ60..HRF198305-198510

3RD SEAT TYPE,TRANSVERSE SEAT

main58311-90A07iFJ62..SRF..LUB..GEN198411-198510

MIDDLE EAST SPEC

main58311-90A15iFJ62..WGG..SRF..SOB198510-198612

W/DIVISION SEAT,PARALLEL,*ODAC

main58311-90A16iFJ62..WGG..SRF..SOB198510-198612

W/*ODAC

main58311-90A17iFJ62..WGG..SRF..SOB198612-198708

W/DIVISION,*ODAC,W/O 3RD SEAT

sub58311-90A26

main58311-90A19iBJ60..ME198702-198708

main58311-90A22iBJ60,FJ62,HJ60..WGV..(GEN,ME)198612-198708

W/DIVISION SEAT,PARALLEL

main58311-90A24iFJ62..WGG..SRF..SOB198612-198708

W/DIVISION SEAT,PARALLEL,*ODAC

main58311-90A25iFJ62..WGG..SRF..SOB198612-198708

W/*ODAC

58313PANEL, REAR FLOOR SIDE, RH

main58305-90A00iBJ60,FJ60,HJ60198008-198103

main58305-90A01iBJ60,FJ62,HJ60..SOB198411-198509

main58305-90A02iFJ62,HJ60..HRF..(GEN,ME)198411-198509

W/SUN ROOF

main58305-90A03iFJ62,HJ60..HRF..ARL198411-198509

main58305-90A04iFJ60,HJ60..HRF..(ARL,EUR)198305-198411

W/FOLD SEAT,SUN ROOF

main58305-90A05iHJ60..HRF..EUR198411-198509

W/SUN ROOF

main58305-90A06iHJ60..HRF..EUR198411-198509

main58305-90A07iFJ62,HJ60..SRF..LUB..ARL198509-198708

main58305-90A08iHJ6#..SRF..EUR198509-198708

main58305-90A09iFJ62,HJ60..HRF..(GEN,ME)198509-198708

W/SUN ROOF

main58305-90A10iFJ62,HJ6#..HRF..ARL198509-198708

main58305-90A11iFJ62,HJ6#..HRF..ARL198509-198708

W/SUN ROOF

main58305-90A12iHJ60..HRF..EUR198509-198603

main58305-90A13iHJ60..HRF..LUB..EUR198603-198708

W/SUN ROOF

main58305-90A14iHJ60..HRF..SOB198603-198708

W/SUN ROOF

58313EEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-90A00iFJ62,HJ60..LUB..GEN198510-198708

sub58315-90A07

main58315-90A01iFJ62..WGG..SRF..SOB198510-198708

W/DIVISION SEAT,PARALLEL

main58315-90A02iHJ60..HRF198305-198411

3RD SEAT TYPE,TRANSVERSE SEAT

main58315-90A03iHJ61..HRF;HJ60..5F..HRF..LUB198603-198708

W/TRANSVERSE SEAT

main58315-90A04iFJ62,HJ6#..HRF..(ARL,GEN,ME)198510-198708

W/TRANSVERSE SEAT,*ODAC

main58315-90A05iFJ62..WGG..SRF..SOB198510-198708

W/*ODAC

main58315-90A06iFJ62..WGG..SRF..SOB198510-198708

W/DIVISION SEAT,PARALLEL,*ODAC

58314PANEL, REAR FLOOR SIDE, LH

main58306-90A00iBJ60,FJ62,HJ60..SOB198411-198509

main58306-90A01iFJ60..HRF198210-198305

W/SUN ROOF

main58306-90A02iFJ62,HJ60..HRF..(ARL,EUR)198411-198509

main58306-90A03iFJ60,HJ60..HRF..(ARL,EUR)198305-198411

W/FOLD SEAT,SUN ROOF

main58306-90A04iFJ62,HJ6#..SRF..(ARL,EUR)198510-198708

main58306-90A05iHJ60..HRF..SOB198603-198708

W/SUN ROOF

main58306-90A06iFJ62..HRF..ARL198510-198708

main58306-90A07iFJ62,HJ6#..HRF..(ARL,EUR)198510-198708

W/SUN ROOF

main58306-90A08iBJ60,FJ62,HJ60..SOB198509-198510

main58306-90A09iFJ62,HJ60..HRF..(GEN,ME)198509-198510

W/SUN ROOF

main58306-90A10iFJ62,HJ60..HRF..(ARL,EUR)198509-198510

main58306-90A11iFJ62,HJ60..HRF..(ARL,EUR)198509-198510

W/SUN ROOF

58314EEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-90A00iBJ60,FJ62,HJ60..SOB198411-198510

sub91655-40616

main58316-90A01iBJ60,FJ62,HJ60..SOB..(GEN,ME)198411-198510

3RD SEAT TYPE,PARALLEL

sub91655-40616

main58316-90A02iHJ60..HRF198305-198411

3RD SEAT TYPE,TRANSVERSE SEAT

main58316-90A03iFJ62,HJ60..HRF198411-198510

3RD SEAT TYPE,TRANSVERSE SEAT

sub91655-40616

main58316-90A04iFJ62..WGG..SRF..ME198510-198708

W/DIVISION SEAT,W/O 3RD SEAT

sub58316-90A07

main58316-90A05iFJ62..WGG..SRF..SOB198510-198708

W/DIVISION SEAT,PARALLEL,*ODAC

main58316-90A06iHJ6#..HRF198510-198603

W/TRANSVERSE SEAT

58320COVER, REAR FLOOR SERVICE HOLE

main58325-90A00iBJ60,FJ6#,HJ6#198008-198708

58320APACKING, REAR FLOOR SERVICE HOLE

main58339-90A00iBJ60,FJ6#,HJ6#198008-198708

58343BBRACKET, FUEL HOSE PROTECTOR, FRONT

main58343-90A01iBJ60,FJ6#,HJ6#198008-198612

58344BBRACKET, FUEL HOSE PROTECTOR, REAR

main58131-90A00iBJ60,FJ6#,HJ6#198008-198608

RH

main58344-90A00iBJ60,FJ60,HJ60198008-198411

LH

main58344-90A01iBJ60,FJ62,HJ6#198411-198708

LH

58348ACOVER, REAR BODY MOUNTING SERVICE HOLE

main58348-90A00×2iBJ60,FJ6#,HJ6#198008-198708

58358BRETAINER, COOLER UNIT

main55118-90K00×3iFJ62..WGG..SOB;FJ62..4FC..LUB..ME;FJ62..5F..HRF..LUB..ME198707-198708

main58358-90A00×3iFJ62..WGG..SOB;FJ62..4FC..LUB..ME;FJ62..5F..HRF..LUB..ME198510-198707

58367BRACKET, FUEL TUBE CLAMP

main58367-90A00iBJ60,FJ6#,HJ6#198008-198708

65557RETAINER, ROPE HOOK

main65557-90A01×4iBJ60,FJ62,HJ6#198510-198708

66301HOOK SUB-ASSY, ROPE

main66301-90A00×4iBJ60,FJ62,HJ6#198510-198708

66318BBAND, ROPE HOOK

main66318-90A00×4iBJ60,FJ62,HJ6#198510-198708

76628MUDGUARD, QUARTER PANEL, REAR

main76628-90A00×2iBJ60,FJ6#,HJ60198008-198510

main76628-90A01×2iBJ60,FJ62,HJ6#198510-198708

9018905016

main90189-05016

9046308011

main90463-08011

9165140616

main91651-40616

9166140614

main91661-40614

9353015012

main93530-15012

9354015010

main93540-15010

28 parts on this diagram · 3 diagrams in section
