FRONT FENDER APRON & DASH PANEL

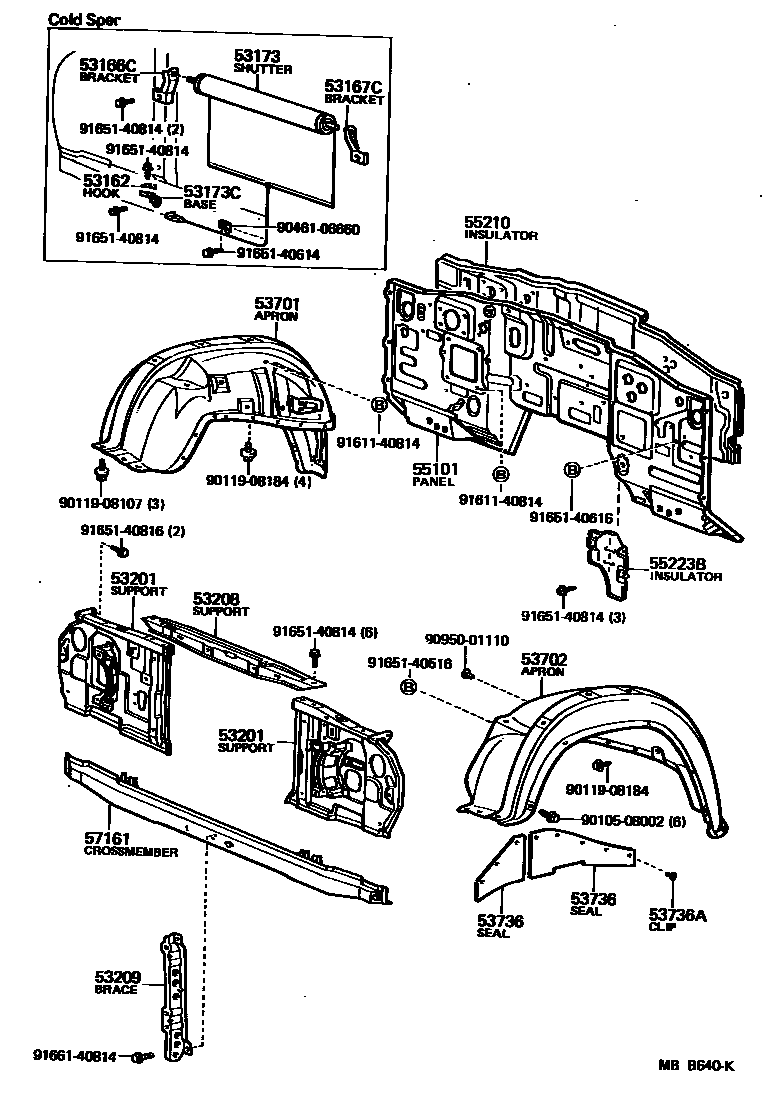

Parts diagram
53162HOOK, RADIATOR SHUTTER
main53162-90500i198008-198708
53166CBRACKET, RADIATOR SHUTTER SUPPORT, RH
main53188-90A00i198008-198708
53167CBRACKET, RADIATOR SHUTTER SUPPORT, LH
main53189-90A00i198008-198708
53173SHUTTER SUB-ASSY, RADIATOR WIND
main53180-90A00i198008-198708
53173CBASE, RADIATOR SHUTTER CONTROL WIRE CLAMP
main53191-90A00i198008-198708
53201SUPPORT SUB-ASSY, RADIATOR
main53202-90A01i198008-198708
RH
main53203-90A01i198008-198708
LH
53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER
main53216-90A00i198008-198411
sub53216-90A01
main53216-90A01i198411-198708
sub53216-90A03
53209BRACE SUB-ASSY, HOOD LOCK
main53209-90A01i198411-198708
main53217-90A01i198008-198411
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-90A22i198008-198411
12V BATTERY
sub53701-90A30
main53701-90A23i198008-198303
12V BATTERY
sub53701-90A50
main53701-90A25i198008-198303
PAPER ELEMENT & W/O PS,WINCH
sub53701-90A47
main53701-90A25i198210-198303
OIL BATH OR CYCLON
sub53701-90A47
main53701-90A26i198210-198411
W/WINCH
sub53701-90A29
main53701-90A26i198301-198504
sub53701-90A29
main53701-90A27i198008-198504
W/PS
sub53701-90A29
main53701-90A28i198303-198411
W/O WINCH
sub53701-90A29
main53701-90A28i198411-198504
sub53701-90A29
main53701-90A29i198504-198701
W/WINCH
sub53701-90G29
main53701-90A29i198210-198303
W/O WINCH
sub53701-90G29
main53701-90A29i198301-198701
W/PS
sub53701-90G29
main53701-90A29i198504-198708
sub53701-90G29
main53701-90A30i198411-198701
sub53701-90G30
main53701-90A30i198008-198411
24V BATTERY
sub53701-90G30
main53701-90A31i198008-198303
24V BATTERY
sub53701-90A51
main53701-90A33i198008-198411
PAPER ELEMENT
sub53701-90A47
main53701-90A36i198210-198303
W/WINCH,PS
sub53701-90A29
main53701-90A36i198210-198303
W/O WINCH;W/WINCH,PS
sub53701-90A29
main53701-90A36i198411-198504
W/WINCH
sub53701-90A29
main53701-90A38i198008-198303
W/WINCH
sub53701-90A29
main53701-90A40i198008-198303
PAPER ELEMENT & W/WINCH
sub53701-90A33
main53701-90A45i198210-198411
W/POWER CLUTCH,WINCH
sub53701-90A47
main53701-90A47i198008-198303
OIL BATH OR CYCLON & WINCH
sub53701-90G40
main53701-90A47i198008-198411
OIL BATH OR CYCLON
sub53701-90G40
main53701-90A47i198411-198701
sub53701-90G40
main53701-90A50i198210-198411
12V BATTERY,W/POWER CLUTCH
sub53701-90A51
main53701-90A50i198210-198411
12V BATTERY
sub53701-90A51
main53701-90A51i198210-198411
24V BATTERY
sub53701-90G42
main53701-90A51i198210-198411
24V BATTERY,W/POWER CLUTCH
sub53701-90G42
main53701-90A51i198411-198701
W/POWER CLUTCH
sub53701-90G42
main53701-90A59i198210-198504
W/WINCH
sub53701-90A29
main53701-90A75i198411-198504
sub53701-90G06
main53701-90A78i198411-198504
W/PS,*OF
sub53701-90G08
main53701-90A78i198411-198504
W/*OF
sub53701-90G08
main53701-90A78i198411-198504
W/PS,WINCH & *OF
sub53701-90G08
main53701-90A97i198411-198701
W/*OF
sub53701-90G76
main53701-90G06i198504-198701
sub53701-90G81
main53701-90G08i198504-198701
W/*OF
sub53701-90G83
main53701-90G29i198701-198708
W/PS
main53701-90G29i198701-198708
W/WINCH
main53701-90G30i198701-198708
main53701-90G40i198701-198708
sub53701-90G76
main53701-90G42i198701-198708
W/POWER CLUTCH
main53701-90G76i198701-198708
W/*OF
main53701-90G81i198701-198708
main53701-90G83i198701-198708
W/*OF
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-90A08i198303-198504
W/WINCH
sub53702-90A14
main53702-90A14i198008-198504
W/O WINCH
main53702-90A14i198504-198708
main53702-90A15i198008-198504
sub53702-90A14
main53702-90A17i198008-198708
main53702-90A19i198008-198504
sub53702-90A17
main53702-90A19i198008-198411
HONG KONG SPEC
sub53702-90A17
main53702-90A20i198008-198504
sub53702-90A33
main53702-90A20i198210-198504
W/POWER CLUTCH
sub53702-90A33
main53702-90A21i198210-198708
sub53702-90A33
main53702-90A21i198008-198210
24V BATTERY
sub53702-90A33
main53702-90A22i198008-198504
sub53702-90A23
main53702-90A22i198210-198411
W/POWER CLUTCH
sub53702-90A23
main53702-90A23i198411-198708
main53702-90A23i198008-198504
24V BATTERY
main53702-90A24i198008-198303
W/WINCH
sub53702-90A14
main53702-90A25i198008-198303
W/WINCH
sub53702-90A15
main53702-90A33i198504-198510
W/POWER CLUTCH
main53702-90A33i198504-198708
main53702-90A43i198411-198708
sub53702-90A64
main53702-90A43i198401-198411
*SAA
sub53702-90A64
main53702-90A44i198411-198510
W/POWER CLUTCH,*GIS
sub53702-90A64
main53702-90A44i198401-198411
*SAA,W/POWER CLUTCH
sub53702-90A64
main53702-90A44i198510-198708
W/POWER CLUTCH
sub53702-90A64
main53702-90A48i198411-198708
W/*OF
main53702-90A54i198411-198708
W/*OF
main53702-90A57i198411-198504
W/*OF
sub53702-90A58
main53702-90A57i198411-198504
W/POWER CLUTCH,*OF
sub53702-90A58
main53702-90A58i198504-198708
W/POWER CLUTCH,*OF
main53702-90A58i198411-198708
W/*OF
main53702-90A64i198411-198708
W/*OF
53736SEAL, FRONT FENDER APRON, RH
main53738-90A00i198008-198708
FR
main53739-90A00i198008-198708
RR
53736ACLIP(FOR FRONT FENDER APRON SEAL)
main90467-08011i198008-198708
55101PANEL SUB-ASSY, DASH
main55016-90A01i198510-198708
W/*BV,*HEA,*AIC,*PCL
main55016-90A02i198510-198708
W/*PCL,*BV
sub55016-90A84
main55016-90A03i198510-198708
W/*BV,*AIC
main55016-90A04i198510-198708
W/*HEA,*AIC
main55016-90A05i198510-198708
W/*PCL,*BV,*AIC
main55016-90A06i198510-198708
W/*PCL,*HEA,*AIC
main55016-90A08i198510-198708
W/*ODAC
main55016-90A10i198510-198708
W/*PCL,*ODAC
main55016-90A13i198510-198708
W/*BV,*HEA,*AIC
main55016-90A14i198510-198708
W/*BV,*HEA
main55016-90A15i198510-198708
W/*ODAC
main55016-90A16i198510-198708
W/RR *HEA,*AIC
main55016-90A17i198510-198708
main55016-90A18i198510-198708
W/*BV,*AIC
sub55016-90A81
main55016-90A19i198510-198708
W/*PCL,*HEA
main55016-90A20i198510-198708
W/*PCL,*HEA,*AIC,*BV
sub55016-90A85
main55016-90A22i198510-198708
W/*ODAC
main55016-90A24i198510-198708
W/*PCL,*ODAC
main55016-90A27i198510-198708
main55016-90A28i198510-198708
W/*ODAC
main55016-90A31i198510-198708
W/*AIC
main55016-90A32i198510-198708
W/*PCL,*AIC
main55019-90A00i198210-198309
W/*AIC
sub55019-90A32
main55019-90A01i198210-198411
W/FR RR HEATER,*PCL
main55019-90A01i198210-198411
W/FR,RR HEATER,*AIC
main55019-90A03i198210-198309
W/FR,RR HEATER
sub55019-90A34
main55019-90A06i198210-198411
W/*BV,HEATER,*AIC
main55019-90A16i198309-198401
sub55101-90G10
main55019-90A18i198309-198411
main55019-90A19i198309-198401
W/FR,RR HEATER
sub55101-90G12
main55019-90A21i198309-198401
W/FR,RR HEATER,*AIC
sub55101-90G14
main55019-90A21i198309-198411
ITALY SPEC,W/FR,RR *HEA,*AIC
sub55101-90G14
main55019-90A24i198309-198411
W/*AIC
main55019-90A25i198309-198411
W/HEATER
main55019-90A26i198309-198401
W/*PCL
sub55101-90G15
main55019-90A28i198309-198411
W/*PCL
main55019-90A29i198309-198411
W/HEATER & *PCL
main55019-90A30i198309-198401
W/FR,RR HEATER,*PCL
sub55101-90G17
main55019-90A32i198309-198401
W/*AIC,*PCL
sub55101-90G19
main55019-90A32i198309-198401
ITALY SPEC,W/*AIC
sub55101-90G19
main55019-90A34i198309-198411
W/*AIC,*PCL
main55019-90A35i198309-198411
W/*AIC & *PCL
main55101-90386i198510-198708
main55101-90387i198510-198708
W/*ODAC
main55101-90389i198510-198708
main55101-90651i198510-198708
W/*PCL
main55101-90652i198510-198708
main55101-90657i198510-198708
main55101-90659i198510-198708
W/*HEA
sub55016-90A82
main55101-90660i198510-198708
W/*BV,*HEA
main55101-90662i198510-198708
W/*BV,*HEA,*AIC
main55101-90664i198510-198708
main55101-90666i198510-198708
W/*PCL
main55101-90669i198510-198708
W/*PCL
main55101-90670i198510-198708
W/*PCL,*HEA
sub55016-90A86
main55101-90671i198510-198708
W/*BV,*HEA,*PCL
main55101-90673i198510-198708
W/*BV,*HEA,*AIC,*PCL
main55101-90674i198510-198708
W/*PCL
main55101-90675i198510-198708
W/*PCL,*BV
main55101-90676i198510-198708
W/*BV,*HEA
main55101-90677i198510-198708
main55101-90679i198510-198708
main55101-90680i198510-198708
W/*BV,*HEA
main55101-90682i198510-198708
W/*BV,*HEA,*AIC
main55101-90683i198510-198708
W/*BV
sub55016-90A80
main55101-90684i198510-198708
W/*HEA,*AIC
sub55016-90A83
main55101-90685i198510-198708
W/*PCL
main55101-90687i198510-198708
W/*PCL
main55101-90688i198510-198708
W/*PCL,*HEA,*AIC
sub55016-90A87
main55101-90689i198510-198708
W/*BV,*HEA,*PCL
main55101-90A00i198008-198210
W/O HEATER
sub55101-90A04
main55101-90A01i198008-198210
W/*BV,FR HEATER
sub55101-90A16
main55101-90A02i198008-198210
main55101-90A03i198210-198309
W/*PCL
sub55101-90A02
main55101-90A04i198210-198309
W/POWER CLUTCH & *AIC
main55101-90A06i198210-198411
W/FR,RR HEATER,*PCL
main55101-90A07i198008-198210
main55101-90A07i198210-198411
W/*PCL
main55101-90A08i198008-198210
W/HEATER
main55101-90A09i198008-198210
W/O HEATER
main55101-90A10i198008-198210
sub55101-90A31
main55101-90A13i198008-198210
sub55101-90A37
main55101-90A14i198008-198210
main55101-90A16i198008-198210
W/FR,RR HEATER
main55101-90A17i198008-198210
W/*AIC
sub55101-90A18
main55101-90A18i198008-198210
W/FR,RR HEATER,*AIC
main55101-90A20i198008-198210
W/FR,RR HEATER
main55101-90A21i198008-198110
W/O HEATER
main55101-90A23i198008-198411
W/FR,RR HEATER
main55101-90A26i198008-198210
W/*BV
main55101-90A31i198008-198210
W/FR,RR HEATER
main55101-90A32i198008-198210
W/*AIC
sub55101-90A33
main55101-90A33i198008-198210
W/FR,RR HEATER,*AIC
main55101-90A35i198008-198110
W/O HEATER
main55101-90A36i198008-198210
W/FR,RR HEATER
sub55101-90A38
main55101-90A37i198008-198210
main55101-90A38i198008-198210
W/FR,RR HEATER
main55101-90A39i198008-198210
W/*BV
main55101-90A41i198008-198210
W/HEATER
main55101-90A48i198210-198411
W/O HEATER
main55101-90A54i198210-198411
main55101-90A56i198210-198309
sub55019-90A16
main55101-90A59i198210-198411
main55101-90A60i198210-198309
sub55019-90A18
main55101-90A62i198210-198411
W/FR,RR HEATER
main55101-90A63i198210-198411
W/FR HEATER,*AIC
main55101-90A64i198210-198411
W/FR,RR HEATER,*AIC
main55101-90A66i198210-198411
W/FR,RR HEATER
main55101-90A67i198210-198411
W/FR HEATER,*BV
main55101-90A69i198210-198309
W/FR,RR HEATER
sub55019-90A19
main55101-90A71i198210-198309
W/FR,RR HEATER,*AIC
sub55019-90A21
main55101-90A75i198210-198411
W/FR,RR HEATER
main55101-90A77i198210-198309
W/*AIC
sub55019-90A23
main55101-90A78i198210-198309
W/*BV
sub55019-90A24
main55101-90A79i198210-198309
W/FR,RR HEATER & *AIC
sub55019-90A25
main55101-90A80i198210-198411
W/*PCL
main55101-90A85i198210-198411
W/*PCL
main55101-90A86i198210-198309
W/O HEATER,W/*PCL
sub55019-90A26
main55101-90A88i198210-198411
W/*PCL
main55101-90A89i198210-198309
W/POWER CLUTCH
sub55019-90A28
main55101-90A91i198210-198411
W/FR RR HEATER,*PCL
main55101-90A93i198210-198411
W/*AIC
main55101-90A94i198210-198309
W/FR,RR HEATER & *PCL
sub55019-90A29
main55101-90A95i198210-198411
W/*AIC,*PCL
main55101-90A96i198210-198411
W/FR,RR HEATER
main55101-90A97i198210-198411
W/*AIC,*PCL
main55101-90A98i198210-198309
W/FR HEATER & *BV
sub55019-90A30
main55101-90G10i198401-198411
main55101-90G12i198401-198411
W/FR,RR HEATER
main55101-90G14i198402-198411
W/*AIC,FR,RR HEATER
main55101-90G14i198401-198411
W/FR,RR HEATER,*AIC
main55101-90G15i198401-198411
W/*PCL
main55101-90G17i198401-198411
W/FR,RR HEATER,*PCL
main55101-90G19i198401-198411
ITALY SPEC,W/*AIC
main55101-90G19i198401-198411
W/*AIC,*PCL
main55101-90G20i198411-198510
main55101-90G25i198411-198510
main55101-90G26i198411-198510
W/*HEA
main55101-90G27i198411-198510
W/*BV,*HEA
main55101-90G29i198411-198510
W/*BV,*HEA,*AIC
main55101-90G31i198411-198510
main55101-90G33i198411-198510
W/*BV,*HEA
main55101-90G34i198411-198510
main55101-90G36i198411-198510
main55101-90G37i198411-198510
W/*BV,*HEA
main55101-90G39i198411-198510
W/*BV,*HEA,*AIC
main55101-90G40i198411-198510
W/*BV
main55101-90G41i198411-198510
W/*HEA,*AIC
main55101-90G42i198411-198510
W/*PCL
main55101-90G43i198411-198510
W/*PCL,*HEA,*AIC
main55101-90G44i198411-198510
W/*PCL,*BV
main55101-90G45i198411-198510
W/*BV,*AIC
main55101-90G46i198411-198510
W/*HEA,*AIC
main55101-90G47i198411-198510
W/*PCL,*BV,*AIC
main55101-90G48i198411-198510
W/*PCL,*HEA,*AIC
main55101-90G50i198411-198510
W/*ODAC
main55101-90G52i198411-198510
W/*PCL,*ODAC
main55101-90G55i198411-198510
W/*BV,*HEA,*AIC
main55101-90G55i198411-198510
W/*AIC
main55101-90G56i198411-198510
W/*BV,*HEA
main55101-90G57i198411-198510
W/*ODAC
main55101-90G58i198411-198510
W/RR *HEA,*AIC
main55101-90G58i198411-198510
W/FR RR HEATER
main55101-90G59i198411-198510
main55101-90G60i198411-198510
W/*BV,*AIC
main55101-90G61i198411-198510
W/*PCL,*HEA
main55101-90G62i198411-198510
W/*PCL,*HEA,*AIC,*BV
main55101-90G64i198411-198510
W/*ODAC
main55101-90G66i198411-198510
W/*PCL,*ODAC
main55101-90G69i198411-198510
main55101-90G70i198411-198510
W/*ODAC
main55101-90G72i198411-198510
W/*PCL
main55101-90G73i198411-198510
W/*PCL,*HEA
main55101-90G74i198411-198510
W/*PCL,*BV
main55101-90G75i198411-198510
W/*PCL
main55101-90G78i198411-198510
W/*BV,*HEA,*PCL
main55101-90G80i198411-198510
W/*BV,*HEA,*AIC,*PCL
main55101-90G81i198411-198510
W/*PCL
main55101-90G82i198411-198510
W/*PCL
main55101-90G84i198411-198510
W/*BV,*HEA,*PCL
main55101-90G86i198411-198510
W/*BV,*HEA,*AIC,*PCL
main55101-90G93i198510-198708
main55101-90G94i198510-198708
W/*ODAC
main55101-90G97i198510-198708
W/*PCL
main55101-90G98i198510-198708
W/*PCL,*ODAC
55210INSULATOR ASSY, DASH PANEL
main55210-90A00i198008-198210
W/O HEATER
main55210-90A01i198008-198210
W/HEATER
main55210-90A02i198008-198210
W/HEATER & *AIC
main55210-90A03i198008-198210
W/O HEATER
main55210-90A04i198008-198210
W/HEATER
main55210-90A05i198008-198210
W/HEATER & *AIC
main55210-90A06i198210-198411
main55210-90A07i198210-198411
main55210-90A08i198411-198708
sub55210-90A13
main55210-90A09i198411-198708
main55210-90A10i198510-198708
main55210-90A11i198510-198708
55223BINSULATOR, DASH PANEL HEAT, NO.1
main55223-90A02i198008-198708
main55223-90A03i198008-198210
main55223-90A04i198210-198708
57161CROSSMEMBER, FRONT
main57104-90A00i198008-198411
sub57104-90A01
main57104-90A01i198411-198708
sub57104-90A03
9010508002
main90105-08002
9011908107
main90119-08107
9011908184
main90119-08184
9046106660
main90461-06660
9095001110
main90950-01110
9161140814
main91611-40814
9165140516
main91651-40516
9165140614
main91651-40614
9165140616
main91651-40616
9165140814
main91651-40814
9165140816
main91651-40816
9166140814
main91661-40814

28 parts on this diagram · 3 diagrams in section

FRONT FENDER APRON & DASH PANEL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
