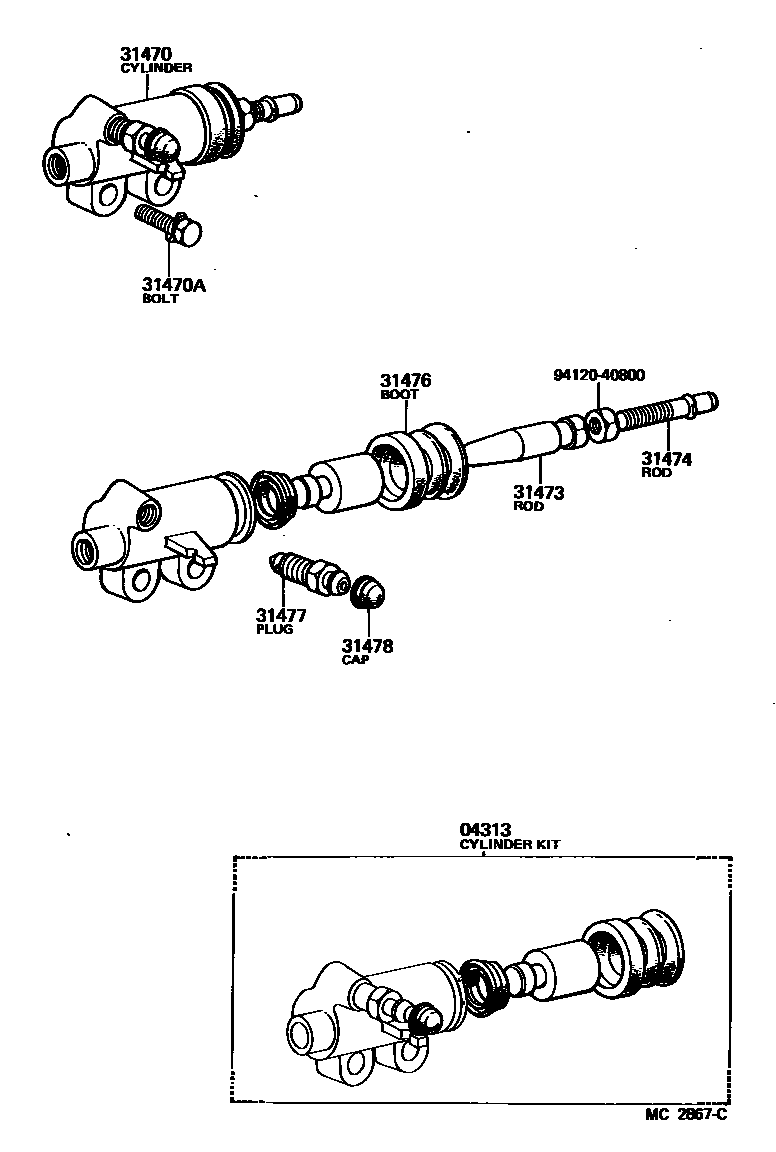

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-40021iBJ60¥1,010198008-198110

main04313-60020iFJ60,HJ60¥860198008-198411

main04313-60040iBJ60¥1,060198110-198411

main04313-60050iFJ62,HJ6#..MTM¥1,350198411-198708

main04313-60060iBJ60¥1,350198411-198708

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60050iBJ60¥8,000198008-198110

main31470-60081iFJ60¥7,500198008-198411

main31470-60091iHJ60¥7,300198008-198411

main31470-60100iFJ62,HJ6#..MTM¥7,400198411-198612

sub31470-60101¥7,200

sub91611-41045¥120

main31470-60101iFJ62,HJ6#..MTM¥7,200198612-198708

sub31470-60102¥7,400

main31470-60110iBJ60¥9,800198110-198411

main31470-60120iBJ60¥9,100198411-198510

main31470-60130iBJ60¥9,100198510-198708

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-41045iFJ62,HJ60..MTM¥120198612-198708

main91611-60828iBJ60¥110198008-198708

*8-1.25PX28-28

main91611-61055iFJ6#,HJ60..MTM¥170198008-198612

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30020iBJ60¥740198008-198110

main31473-60061iFJ60¥780198008-198411

main31473-60071iHJ60¥700198008-198411

main31473-60080iFJ62..MTM¥530198411-198708

main31473-60090iBJ60¥730198110-198411

main31473-60100iBJ60198411-198510

main31473-60110iBJ60¥740198510-198708

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31474-30020iBJ60¥490198008-198411

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-36010iFJ62,HJ6#..MTM¥460198411-198708

main31476-40010iBJ60¥470198008-198110

main31476-60031iFJ60,HJ60¥410198008-198411

main31476-60050iBJ60¥470198411-198708

main31476-60060iBJ60¥580198110-198411

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBJ60,FJ6#,HJ6#..MTM¥180198008-198708

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ60,FJ6#,HJ6#..MTM¥160198008-198708

9412040800

main94120-40800¥90

9 parts on this diagram · 4 diagrams in section
