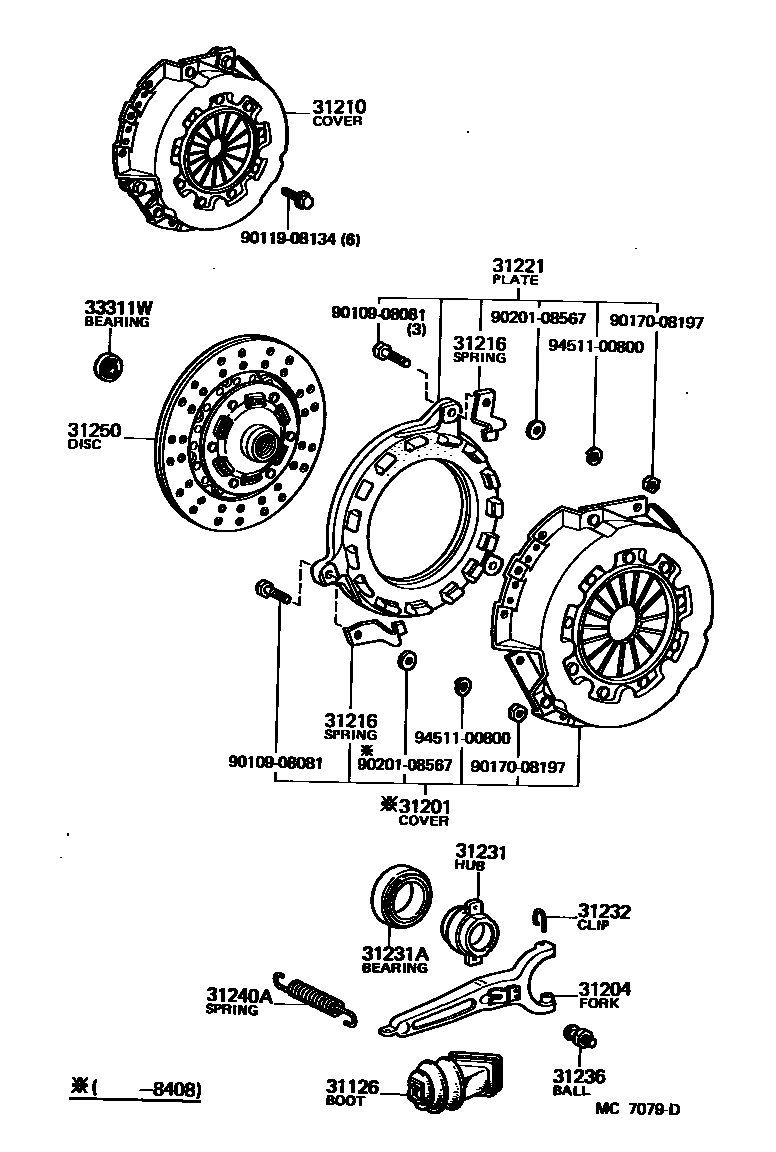

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-36030iBJ60198008-198411

main31126-60021iFJ6#,HJ60..MTM198008-198708

main31126-60030iBJ60198411-198708

31201COVER SUB-ASSY, CLUTCH

main31201-39097iBJ60198105-198408

sub31210-36072

main31201-39115iBJ60198008-198105

sub31210-36100

main31201-69026iHJ60;FJ60..EUR,GEN198008-198101

sub31201-69027

main31201-69027iHJ60;FJ60..EUR,GEN198101-198408

sub31210-60070

main31201-69047iFJ60..ARL198008-198101

sub31201-69048

main31201-69048iFJ60..ARL198101-198408

sub31210-60080

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-60030iFJ60198008-198411

main31204-60040iHJ60198008-198303

sub31204-60041

main31204-60041iHJ60198303-198411

main31204-60050iBJ60198008-198411

main31204-60060iFJ62..MTM198411-198708

main31204-60070iHJ6#..MTM198411-198708

main31204-60080iBJ60198411-198708

31210COVER ASSY, CLUTCH

main31210-36072iBJ60198105-198411

sub31210-36073

main31210-36090iBJ60198008-198105

sub31210-36100

main31210-36100iBJ60198411-198708

sub31210-36101

main31210-60041iHJ60;FJ60..EUR,GEN198008-198101

sub31210-60042

main31210-60042iHJ60;FJ60..EUR,GEN198101-198408

sub31210-60070

main31210-60062iFJ60..ARL198008-198101

sub31210-60063

main31210-60063iFJ60..ARL198101-198408

sub31210-60080

main31210-60070iHJ60;FJ60..EUR,GEN198408-198708

sub31210-60071

main31210-60080iFJ6#..5F..ARL198408-198708

sub31210-60100

main31210-60090iHJ61..5F198510-198708

sub31210-60091

31216SPRING, CLUTCH RETRACTING

main31216-36010iBJ60198008-198708

main31216-60010iFJ6#,HJ6#..MTM198008-198708

31221PLATE, CLUTCH PRESSURE

main31221-39085iBJ60198105-198411

sub31221-39145

main31221-39125iBJ60198008-198708

sub31221-36090

main31221-69025iHJ61..5F198008-198708

sub31221-60020

main31221-69035iFJ6#..MTM..ARL198008-198708

sub31221-60030

31231HUB, CLUTCH RELEASE BEARING

main31231-60040iFJ60198008-198411

sub31231-60070

main31231-60050iHJ6#..MTM198008-198708

main31231-60060iBJ60198008-198411

main31231-60070iFJ62..MTM198411-198708

main31231-60080iBJ60198411-198708

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45001iBJ60198008-198202

sub90363-45002

main90363-45002iBJ60198202-198708

main90363-52001iFJ6#,HJ6#..MTM198105-198708

main90363-52086iFJ60,HJ60198008-198105

sub90363-52001

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-60020iBJ60,FJ6#,HJ6#..MTM198008-198708

31236BALL, RELEASE FORK

main31236-36010iBJ60198008-198411

main31236-60020iFJ60198008-198708

main31236-60030iHJ6#..MTM198008-198708

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16297iBJ60198008-198708

main90506-16475iFJ60,HJ60198008-198708

31250DISC ASSY, CLUTCH

main31250-36113iBJ60198110-198405

sub31250-60090

main31250-36150iHJ60198205-198210

sub31250-36210

sub31250-60100

main31250-36280iBJ60198512-198610

sub31250-36281

main31250-36281iBJ60198610-198702

sub31250-36301

main31250-36301iBJ60198702-198707

sub31250-36302

main31250-60020iFJ60198008-198410

sub31250-60080

main31250-60030iHJ60198008-198011

sub31250-60031

main31250-60031iHJ60198011-198205

sub31250-36150

main31250-60040iBJ60198008-198110

sub31250-36113

main31250-60070iHJ60198210-198405

sub31250-60100

main31250-60080iFJ6#..MTM198410-198708

sub31250-36340

main31250-60090iBJ60198405-198512

sub31250-36280

main31250-60100iHJ60..MTM198405-198601

sub31250-60140

main31250-60130iHJ61..5F198510-198601

sub31250-60140

main31250-60140iHJ6#..MTM198601-198707

sub31250-60170

main31250-60170iHJ6#..MTM198707-198708

sub31250-60171

main31250-60180iBJ60198707-198708

sub31250-60181

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBJ60198008-198708

sub90363-12024

main90363-15004iFJ6#,HJ6#..MTM198008-198708

9010908081

main90109-08081

9011908134

main90119-08134

9017008197

main90170-08197

9020108567

main90201-08567

9451100800

main94511-00800

18 parts on this diagram · 2 diagrams in section
