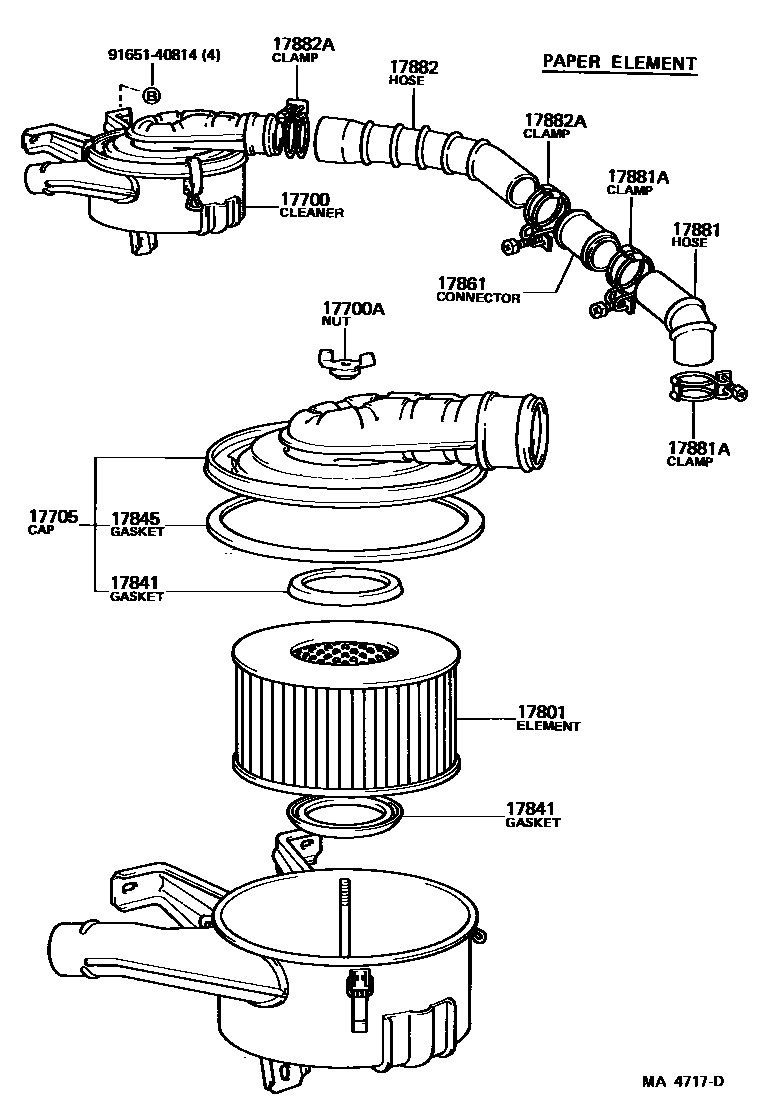

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0016 1 0017 1 0018 1 0019 1 0020 1

17700CLEANER ASSY, AIR

main17700-61023i2F..FJ60..RHD..GEN198008-198202

HONG KONG SPEC

main17700-61081i2F..FJ60..GEN198008-198210

main17700-61082i2F..FJ60..GEN198210-198411

main17700-61150i3F..FJ62..MTM..GEN198411-198608

main17700-61151i3F..FJ62..MTM..GEN198608-198708

main17700-61210i3F..FJ62..LHD..4F..LUB;3F..FJ62..LHD..SOB..GEN198510-198608

W/HOT AIR INTAKE & CYCLONE

main17700-61211i3F..FJ62..LHD..4F..LUB;3F..FJ62..LHD..SOB..GEN198608-198708

W/HOT AIR INTAKE & CYCLONE

main17700-68010i3B..BJ60198008-198210

main17700-68011i3B..BJ60198210-198411

sub90339-03005

main17700-68020i2F..FJ60..ARL,GEN198008-198210

CYCLONE

main17700-68021i2F..FJ60..ARL,GEN198210-198411

CYCLONE

sub90339-03005

main17700-68030i3B..BJ60198008-198411

OIL BATH

sub90339-03005

main17700-68140i3B..BJ60198411-198608

main17700-68150i3B..BJ60198411-198608

CYCLONE

main17700-68151i3B..BJ60198608-198708

CYCLONE

main17700-68160i3B..BJ60198411-198702

OIL BATH

main17700-68180i12HT..HJ61..EUR198608-198708

main17700-68210i2H..HJ60..EUR;2H..HJ60..5F..SRF..GEN198608-198701

main17700-68220i2H..HJ60..5F..SRF..GEN198608-198701

CYCLONE

main17700-68240i2H..HJ60..4F;2H..HJ60..HRF..GEN198608-198708

main17700-68250i2H..HJ60..5F..SRF..GEN198701-198708

CYCLONE

main17700-68260i12HT..HJ61..ARL198608-198708

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003×2i2F..FJ60..RHD..GEN198008-198202

HONG KONG SPEC

main90175-08008i2F,3F..FJ6#..ARL,GEN,ME198008-198708

CYCLONE OR OIL BATH

17705CAP SUB-ASSY, AIR CLEANER

main17705-61011i2F..FJ60..GEN198008-198411

main17705-61023i2F..FJ60..RHD..GEN198008-198202

HONG KONG SPEC

main17705-61080i3F..FJ62..MTM..GEN198411-198708

main17705-61120i3F..FJ62..4F;3F..FJ62..5F..SOB..GEN198411-198510

W/HOT AIR INTAKE

main17705-68010i3B..BJ60198008-198210

sub90339-03005

main17705-68020i3B..BJ60198008-198411

CYCLONE

sub90339-03005

main17705-68030i3B..BJ60198008-198411

OIL BATH

sub90339-03005

main17705-68100i3B..BJ60198411-198708

CYCLONE

main17705-68110i3B..BJ60..GEN198702-198708

OIL BATH

main17705-68120i12HT..HJ61198510-198708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-61010i2F..FJ60..EUR198008-198411

main17801-61030i3B..BJ60198608-198708

main17801-66020i3B..BJ60198008-198210

main17801-68010i3B..BJ60198008-198702

OIL BATH

main17801-68020i3B..BJ60198210-198608

main17801-68030i12HT..HJ61..EUR198608-198708

17841GASKET, FILTER ELEMENT

main17841-60011×2i2F,3F..FJ6#..MTM..GEN198008-198708

PAPER ELEMENT

main17841-61011×2i2F..FJ60..RHD..GEN198008-198202

HONG KONG SPEC

main17841-68010i2F..FJ60..ARL,GEN198008-198411

LWR CYCLONE

main17841-68030i2F..FJ60..ARL,GEN198008-198411

UPR CYCLONE

main17841-68040i3B..BJ60198008-198702

OIL BATH

17845GASKET, AIR CLEANER CAP

main17845-61011i3B..BJ60198210-198708

*G,L=933

main17845-68010i3B..BJ60198008-198210

17861CONNECTOR, INTAKE AIR

main17885-56010i3B..BJ60198008-198411

main17885-58070i3B..BJ60198411-198708

17881HOSE, AIR CLEANER, NO.1

main17881-58010i3B..BJ60198008-198411

main17881-58090i3B..BJ60198411-198708

main17881-61010i2F..FJ60..EUR198008-198411

main17881-61050i2F..FJ60..ARL,GEN198008-198411

OIL BATH OR CYCLONE

main17881-61080i3F..FJ62..LHD..4F..LUB;3F..FJ62..LHD..SOB..GEN198510-198708

W/HOT AIR INTAKE

main17881-68010i2H..HJ60198008-198708

main17881-68050i2H..HJ60..LHD..5F..LUB..EUR198608-198708

SWITZERLAND SPEC

main17881-68060i12HT..HJ61198510-198708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10460×2i3F..FJ62..LHD..4F..LUB;3F..FJ62..LHD..SOB..GEN198510-198708

W/HOT AIR INTAKE

main96111-10650i2F..FJ60..RHD..GEN198005-198202

HONG KONG SPEC

main96111-10690×2i3B..BJ60198008-198411

main96111-10710×2i3B..BJ60198411-198708

main96111-10750i2H..HJ60..LHD..5F..LUB..EUR198608-198708

SWITZERLAND SPEC,RESONATOR

main96111-10780i2H..HJ60198008-198708

VENTURI SIDE

main96111-10800×2i2F..FJ60..ARL,GEN198008-198411

OIL BATH OR CYCLONE

main96111-10830i12HT,2H..HJ6#198008-198708

AIR CLEANER SIDE

main96111-10900i12HT..HJ61198510-198708

PIPE SIDE

17882HOSE, AIR CLEANER, NO.2

main17342-68010i12HT..HJ61198510-198708

main17881-61060i3F..FJ62198411-198510

OIL BATH OR CYCLONE

main17881-61061i3F..FJ62198510-198708

OIL BATH OR CYCLONE

main17882-58010i3B..BJ60198008-198411

main17882-58070i3B..BJ60198411-198708

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10690i3B..BJ60198008-198411

CONNECTOR SIDE,ID=69

main96111-10710i3B..BJ60198411-198708

CONNECTOR SIDE,ID=71

main96111-10800i3F..FJ62198411-198708

OIL BATH OR CYCLONE

main96111-10830i3B..BJ60198008-198708

AIR CLEANER SIDE,ID=83

main96111-10900i12HT..HJ61198510-198708

PIPE SIDE

9165140814

main91651-40814

12 parts on this diagram · 19 diagrams in section
