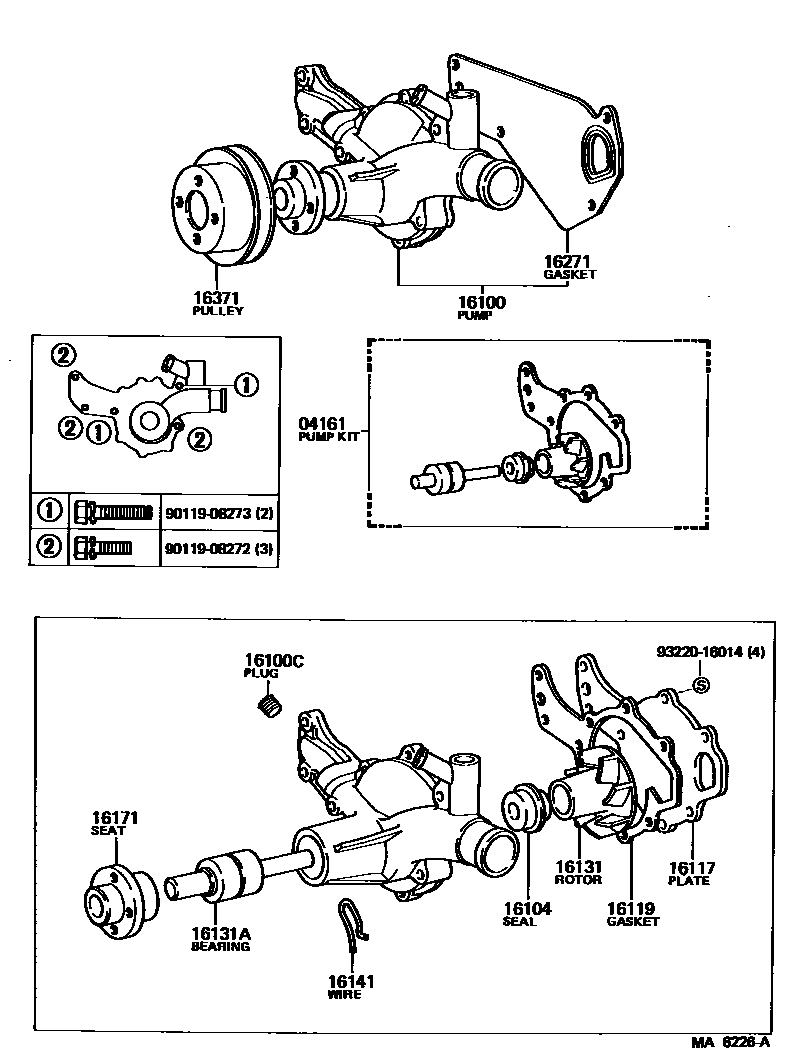

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04161PUMP KIT, WATER

main04161-56040i3B..BJ60198008-198708

sub04161-56041

main04161-68010i12HT,2H..HJ6#198008-198708

16100PUMP ASSY, ENGINE WATER

main16100-59075i3B..BJ60198008-198704

sub16100-59076

main16100-59076i3B..BJ60198704-198708

main16100-61012i2F..FJ60..WGV..GEN198008-198411

DIRECT TYPE

main16100-61041i2F..FJ60..WGV..GEN198008-198411

DIRECT TYPE,W/OIL COOLER

main16100-61071i2F..FJ60..EUR198008-198411

TEMPERED TYPE

main16100-61071i2F..FJ60..RHD..GEN198008-198202

HONG KONG SPEC

main16100-61120i2F..FJ60..WGG..GEN198008-198411

TEMPERED TYPE

main16100-61130i2F..FJ60..WGG..GEN198008-198411

TEMPERED,W/OIL COOLER

main16100-61140i2F..FJ60..SOB..GEN198103-198110

CAST IRON BODY

main16100-61150i2F..FJ60..SOB..GEN198103-198110

CAST IRON BODY,W/OIL COOLER

main16100-69035i12HT,2H..HJ6#198008-198708

sub16100-69036

main16100-69045i2H..HJ60..GEN198008-198110

W/O THERMOSTAT

sub16100-69046

main16100-69105i3F..FJ62..SOB..GEN198411-198510

DIRECT TYPE

sub16100-69106

sub90339-16007

sub96112-10250

main16100-69106i3F..FJ62..SOB..GEN198510-198708

DIRECT TYPE

sub16100-69235

main16100-69115i3F..FJ62..SOB..GEN198411-198708

DIRECT,W/OIL COOLER,HEATER

sub16100-69245

main16100-69145i3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN198411-198708

TEMPERED TYPE

sub16100-69146

main16100-69155i3F..FJ62..ME198411-198708

TEMPERED,W/OIL COOLER

sub16100-69156

main16100-69155i3F..FJ62..ME198411-198708

TEMPERED,W/OIL COOLER,HEATER

sub16100-69156

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010i3B..BJ60198008-198708

16104SEAL SET, WATER PUMP

main16104-15020i12HT,2H..HJ6#198507-198708

main16104-41111i2F..FJ60198008-198507

sub16104-15020

16117PLATE, WATER PUMP

main16117-56040i3B..BJ60198008-198708

main16117-61012i2F..FJ60198008-198411

main16117-61110i3F..FJ62198411-198708

16119GASKET, WATER PUMP BODY

main16119-56040i3B..BJ60198008-198708

sub16119-56041

16131ROTOR, WATER PUMP

main16131-56030i3B..BJ60198008-198708

main16131-61011i2F..FJ60..WGV..GEN198008-198411

DIRECT TYPE

main16131-61071i2F..FJ60..WGG;2F..FJ60..SOB..(ARL,EUR)198008-198411

TEMPERED TYPE

main16131-68010i12HT,2H..HJ6#198008-198708

16131ABEARING, WATER PUMP

main90369-30028i2F..FJ60..LHD..LUB..GEN198103-198110

CAST IRON BODY

main90369-30028i3B..BJ60198008-198704

main90369-30035i2F..FJ60..WGV..GEN198008-198411

DIRECT TYPE

main90369-30060i3B..BJ60198704-198708

sub90369-30061

main90369-35007i2F..FJ60..WGG;2F..FJ60..SOB..(ARL,EUR)198008-198411

TEMPERED TYPE

sub90029-36839

main90369-35016i12HT,2H..HJ6#198008-198708

sub90029-36842

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i2F..FJ60..LHD..LUB..GEN198103-198110

CAST IRON BODY

main16141-60010i3B..BJ60198008-198708

main16141-68010i12HT,2H..HJ6#198008-198708

16171SEAT, WATER PUMP PULLEY

main16171-41170i12HT,2H..HJ6#198008-198708

main16171-56010i2F,3F..FJ6#..WGV..GEN198008-198708

main16171-61071i3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN198008-198708

TEMPERED TYPE

16271GASKET, WATER PUMP

main16271-56020i3B..BJ60198008-198708

sub16271-56030

main16271-60011i2F..FJ60198008-198411

sub16271-60012

main16271-61010i3F..FJ62198411-198708

sub16271-61020

main16271-68010i12HT,2H..HJ6#198008-198708

sub16271-68020

16371PULLEY, FAN

main16173-61070i3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN198008-198708

TEMPERED TYPE

main16371-56020i3B..BJ60198008-198211

sub16371-56021

main16371-56021i3B..BJ60198211-198708

main16371-60090i2F..FJ60..WGV..GEN198008-198411

DIRECT,W/POWER STEERING

main16371-61010i2F..FJ60..WGV..GEN198008-198411

DIRECT TYPE

main16371-61020i3F..FJ62..SOB..GEN198411-198708

DIRECT TYPE

main16371-61030i3F..FJ62..SOB..GEN198411-198708

DIRECT TYPE,W/PS

main16371-68010i2H..HJ60..MTM..(EUR,GEN)198008-198708

NO.1

main16371-68040i12HT..HJ61198510-198708

24V-40A,12V-80A,COLD SPEC

main88452-60010i2H..HJ60..GEN;2H..HJ60..LHD..SRF..LUB..EUR198008-198510

W/COOLER,NO.2

main88452-60010i2H..HJ60..GEN;2H..HJ60..LHD..SRF..LUB..EUR198411-198510

NO.1

main88452-60011i2H..HJ60..GEN198510-198708

NO.2,W/COOLER

9011908272

main90119-08272

9011908273

main90119-08273

9322016014

main93220-16014

15 parts on this diagram · 6 diagrams in section
