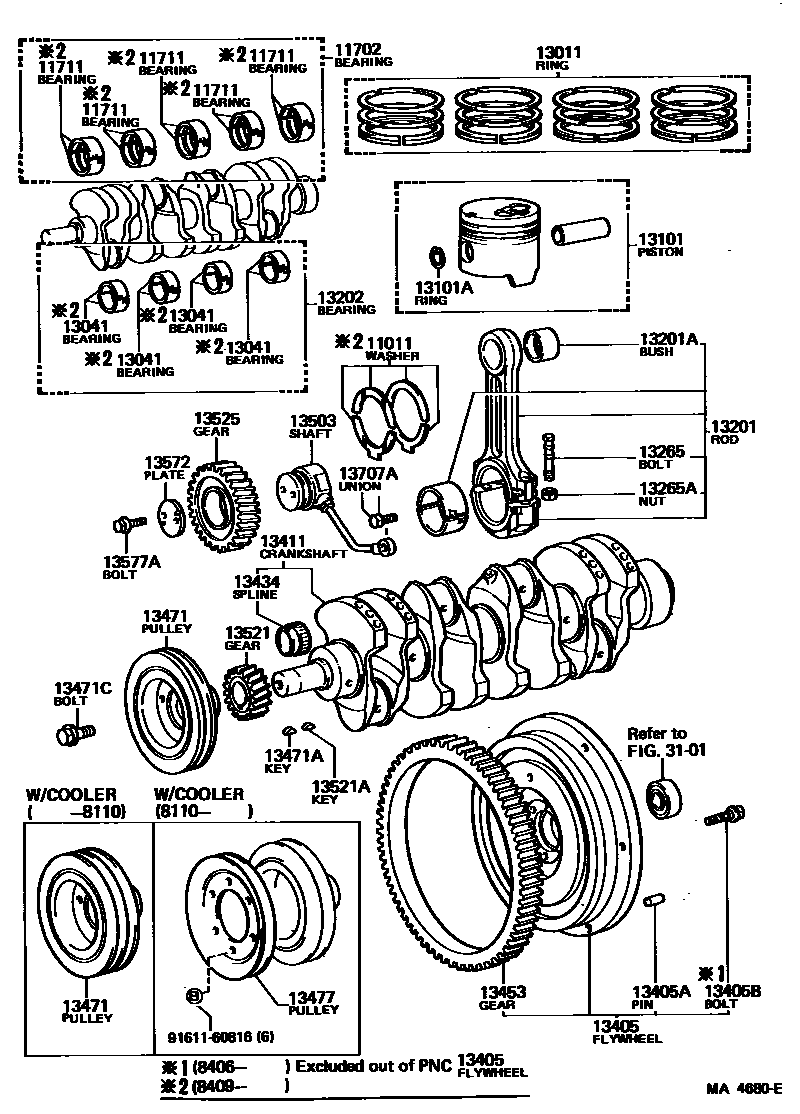

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD,STD
O/S 0.125
O/S 0.125,O/S 0.125
O/S 0.250
O/S 0.250,O/S 0.250
11702BEARING SET, CRANKSHAFT
STD,STD
STD
REP STD #1
U/S 0.05
REP STD #2
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.75
U/S 0.75,U/S 0.75
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
U/S 1.00
U/S 1.00,U/S 1.00
11711BEARING, CRANKSHAFT
NO.2,MARK"1",MARK 1
NO.2,MARK"2",MARK 2
NO.2,MARK"3",MARK 3
MARK"1",MARK 1
MARK"2",MARK 2
NO.1,MARK"1",MARK 1
NO.1,MARK"2",MARK 2
NO.1,MARK"3",MARK 3
13011RING SET, PISTON
STD,STD
STD,STD
STD,STD
STD
STD,STD
O/S 0.50,O/S 0.50
O/S 0.50
O/S 0.50,O/S 0.50
O/S 0.50,O/S 0.50
O/S 1.00,O/S 1.00
O/S 1.00
O/S 1.50,O/S 1.50
O/S 1.50
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
MARK"1",MARK 1
MARK"2",MARK 2
13101PISTON SUB-ASSY, W/PIN
STD,STD
STD,STD
STD,STD
STD,STD
STD,HONG KONG SPEC
STD
STD,STD
STD
STD,STD
STD,STD
O/S 0.50,O/S 0.50
O/S 0.05,HONG KONG SPEC
O/S 0.50
O/S 0.50,O/S 0.50
O/S 0.50
O/S 0.50,O/S 0.50
O/S 0.50,O/S 0.50
O/S 1.00,O/S 1.00
O/S 1.00,HONG KONG SPEC
O/S 1.00
O/S 1.00,O/S 1.00
O/S 1.50,O/S 1.50
O/S 1.50
O/S 1.50,HONG KONG SPEC
O/S 1.50,O/S 1.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13202BEARING SET, CONNECTING ROD
REP STD #1
STD,STD
STD,STD
REP STD #2
U/S 0.05,U/S 0.05
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.75
U/S 0.75
U/S 0.75,U/S 0.75
U/S 1.00
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
U/S 1.00
U/S 1.00,U/S 1.00
13265BOLT, CONNECTING ROD
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=22,OD=10,L=22,OD=10
13434SPLINE, OIL PUMP DRIVE
13453GEAR, FLYWHEEL RING
N=108
13471PULLEY, CRANKSHAFT
sub13470-56101
sub13470-56170
OD=155
W PULLEY,W/PS,OD=155
TRIPLE,W/PS&COOLER,OD=155&227
W PULLEY,W/COOLER,OD=155 & 227
12V-80A
24V-40A OR COLD SPEC
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
W/POWER STEERING
NO.2,W/POWER STEERING
NO.2,W/POWER STEERING
NO.1,W/COOLER
NO.1,W/COOLER
NO.1,W/COOLER
NO.1,W/COOLER,W/PS & COOLER
NO.1,W/COOLER
NO.1,W/*ODAC,ALTERNATOR 12V75A
NO.1,W/COOLER
NO.1,W/COOLER,12V 75A
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
N=51
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13707AUNION(FOR OIL PIPE, NO.1)
3101
9161160816
main91611-60816
31 parts on this diagram · 5 diagrams in section
