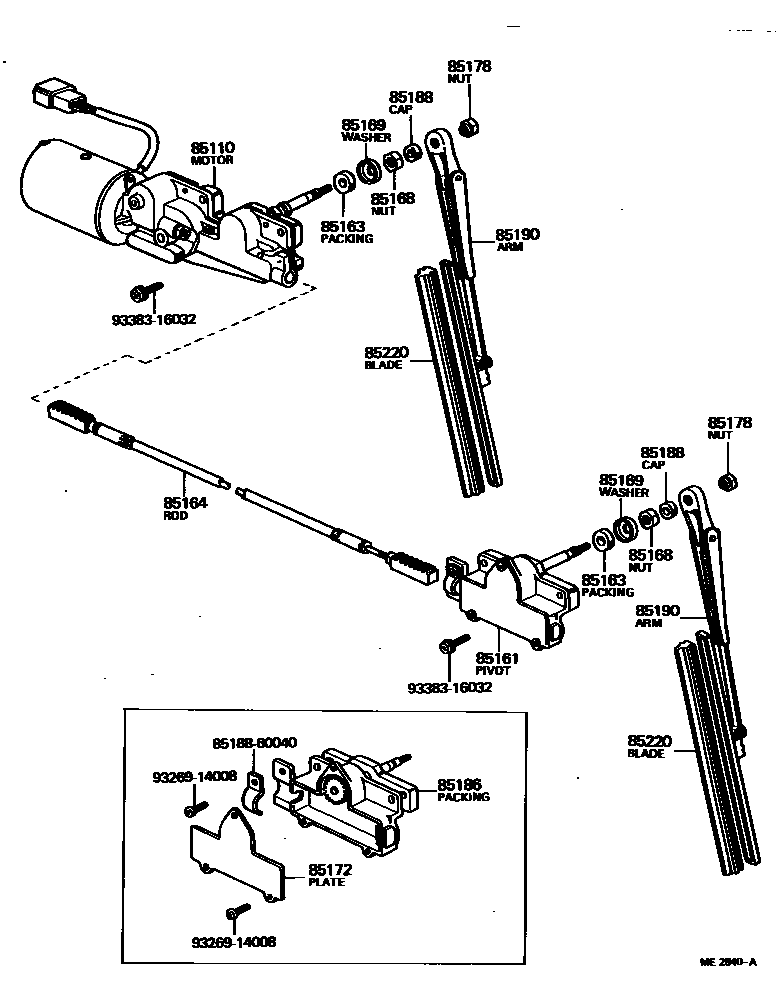

WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60010iBJ4#,FJ4#..RHD..TP..GEN197501-197709

FOR HINGED WINDSHIELD,12V

main85110-60010iFJ40,43..RHD..TP196903-197501

FOR HINGED WINDSHIELD

main85110-60030iBJ4#,FJ4#..LHD..TP..GEN197501-197709

FOR HINGED WINDSHIELD,12V

main85110-60030iFJ40,42,43..LHD..TP196903-197501

FOR HINGED WINDSHIELD

main85110-60050iFJ55..RHD196903-197109

main85110-60060iFJ55..LHD196903-197109

main85110-60070iFJ40,43,45,HJ45..RHD196903-197501

main85110-60080iFJ4#,HJ45..LHD196903-197501

main85110-90300iBJ4#..RHD197402-197501

main85110-90301iBJ4#..LHD197402-197501

main85110-90350iFJ55..RHD197109-197709

main85110-90351iFJ55..LHD197109-197709

main85110-90352iFJ55..RHD197709-198007

main85110-90353iFJ55..LHD197709-198007

85161PIVOT, WINDSHIELD WIPER LINK, NO.1

main85161-60020iFJ55196903-197109

main85161-60040iBJ4#,FJ40,43,45,HJ45..RHD196903-197501

main85161-60050iBJ4#,FJ4#,HJ45..LHD196903-197501

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-25040iBJ4#,FJ4#,HJ45196903-198007

main85185-60020iFJ55196903-197109

85164ROD, WINDSHIELD WIPER LINK, NO.1

main85164-60020iFJ55196903-197109

main85164-60040iBJ4#,FJ40,43,45,HJ45..RHD196903-197501

main85164-60050iBJ4#,FJ40,43,45,HJ45..LHD196903-197501

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-55010iBJ4#,FJ4#,HJ45197501-198007

main85168-60040iBJ4#,FJ4#,HJ45196903-197501

sub85168-55010

main85168-90300iBJ4#,FJ4#,HJ45..EUR197709-197805

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85169-55010iBJ4#,FJ4#,HJ45197501-197607

sub90209-12002

main85169-60040iBJ4#,FJ4#,HJ45196903-197501

main85169-90300iBJ4#,FJ4#,HJ45..EUR197709-197805

sub90209-12002

main90209-12002iBJ4#,FJ4#,HJ45197607-198007

85172PLATE, WINDSHIELD WIPER LINK PIVOT HOUSING END

main85172-60040iBJ4#,FJ4#,HJ45196903-197501

85178NUT (FOR FRONT WIPER ARM SETTING)

main85182-60040iBJ4#,FJ4#,HJ45196903-197501

main90176-06016iFJ55197309-197901

main90179-06158iBJ4#,FJ4#,55,HJ45..EUR..CBU197709-198007

W/WAVE WASHER

85186PACKING, WINDSHIELD WIPER LINK PIVOT, B

main85159-60070iFJ4#,HJ45196903-197501

MOTOR SIDE

main85185-60040iBJ4#,FJ4#,HJ45196903-197501

PIVOT SIDE

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85118-90352iFJ55197309-198007

main85135-55010iBJ4#,FJ4#,HJ45197501-197901

main85135-90300iBJ4#,FJ4#,HJ45..EUR197805-198007

main85177-60040iBJ4#,FJ4#,HJ45196903-197501

85190ARM ASSY, WINDSHIELD WIPER

main85190-60010iBJ4#,FJ4#..TP..GEN196903-197709

FOR HINGED WINDSHIELD

main85190-60040iFJ55..RHD196903-197309

main85190-60050iFJ55..LHD196903-197309

main85190-60061iFJ4#,HJ45..LHD196903-197209

main85190-60071iFJ40,43,45,HJ45..RHD196903-197209

main85190-90300iBJ4#,FJ4#,HJ45..RHD197209-197501

main85190-90301iBJ4#,FJ4#,HJ45..LHD197209-197501

main85190-90302iBJ4#,FJ4#,HJ45..RHD197501-197901

main85190-90303iBJ4#,FJ4#,HJ45..LHD197501-197709

main85190-90303iBJ4#,FJ4#,HJ45..LHD..GEN197709-197901

SILVER

main85190-90304iBJ4#,FJ4#,HJ45..EUR197709-197802

BLACK

sub85190-90305

sub85192-90300

main85190-90305iBJ4#,FJ4#,HJ45..EUR197802-198007

BLACK

main85190-90306iBJ4#,FJ4#,HJ45..RHD197901-198007

main85190-90350iFJ55..RHD197309-197901

main85190-90351iFJ55..LHD197309-197901

SILVER

main85190-90352iFJ55..EUR197709-197901

BLACK

sub85190-90353

sub85192-90300

main85190-90353iFJ55..LHD197901-198007

BLACK

main85190-90354iFJ55..RHD197901-198007

85220BLADE ASSY, WINDSHIELD WIPER

main85220-26010iFJ55196903-197901

SILVER TYPE

main85220-55010iFJ40,42,43..TP196903-197709

FOR HINGED WINDSHIELD

main85220-60030iFJ4#,HJ45196903-197209

main85220-90300iBJ4#,FJ4#,HJ45197209-197501

main85220-90304iBJ4#,FJ4#,HJ45197901-198007

sub85220-90A02

main85220-90304iBJ4#,FJ4#,HJ45..EUR197709-197901

BLACK

sub85220-90A02

main85220-90350iFJ55..EUR197709-197901

BLACK TYPE

main85220-90350iFJ55197901-198007

main85220-95402iBJ4#,FJ4#,HJ45197501-197901

8518860040CAP, WINDSHIELD WIPER PIVOT, NO.1

main85188-60040

9326914008

main93269-14008

9338316032

main93383-16032

15 parts on this diagram · 9 diagrams in section
