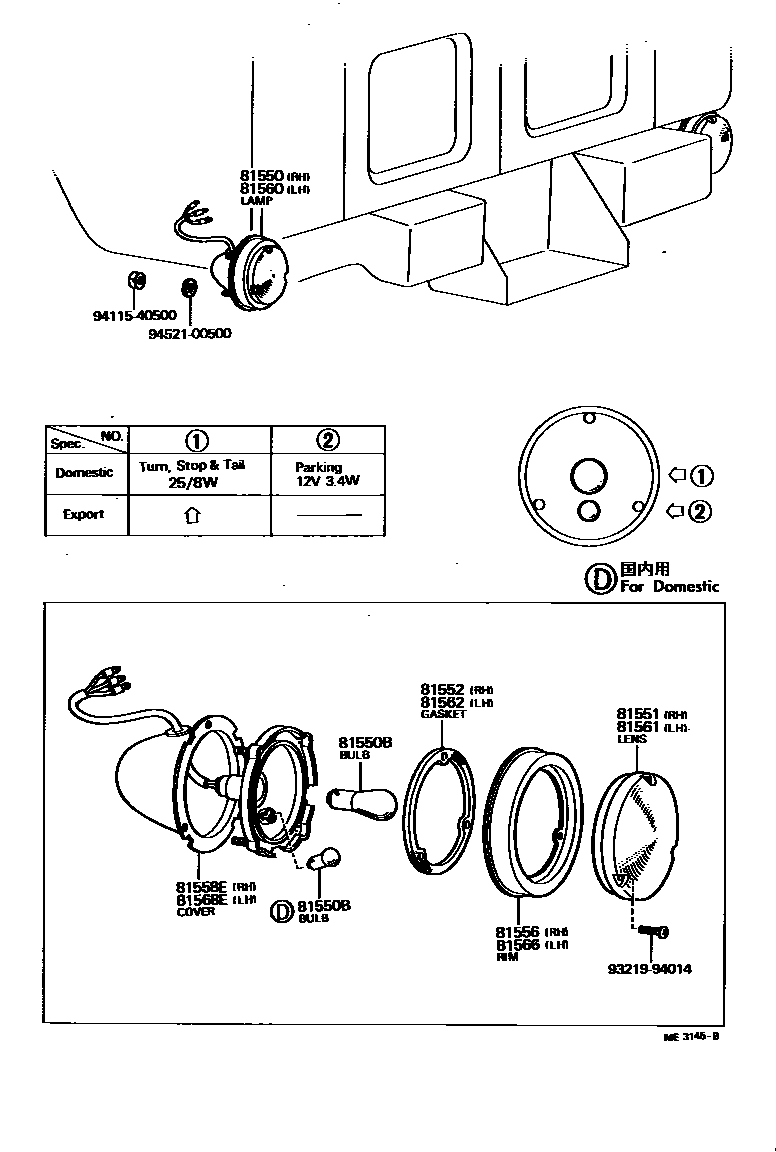

REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
AMBER-RED-CLEAR
AMBER-RED
AMBER-RED
RED
AMBER-RED
AMBER-RED,AUSTRALIA SPEC.
AMBER-RED,EUR.OR ARL.SPEC.
AMBER-RED,AUSTRALIA SPEC.
AMBER-RED-CLEAR,ARL.SPEC.
AMBER-RED-CLEAR
FOR 12V,AMBER-RED-CLEAR
FOR 12V,AMBER-RED-CLEAR
FOR 12V,AMBER-RED-CLEAR
FOR 24V,AMBER-RED-CLEAR
AMBER-RED-CLEAR,EUR.SPEC.
FOR 24V,AMBER-RED-CLEAR
FOR 24V,AMBER-RED-CLEAR
FOR 24V,AMBER-RED-CLEAR
AMBER-RED-CLEAR
AMBER-RED-CLEAR
AMBER-RED-CLEAR,ARL.SPEC.
AMBER-RED-CLEAR
AMBER-RED-CLEAR
AMBER-RED-CLEAR
81550BBULB(FOR REAR COMBINATION LAMP)
24V 21W,24V 21W
24V 21/5W,24V 21/5W
12V 21W,12V 21W
12V 23W,12V 23W
12V 21/5W,12V 21/5W
12V 23/8W,12V 23/8W
81551LENS, REAR COMBINATION LAMP, RH
AMBER-RED
RED-CLEAR
AMBER-RED
RED
AMBER-RED
AMBER-RED,EUR.OR ARL.SPEC.
AMBER-RED,AUSTRALIA SPEC.
AMBER-RED,AUSTRALIA SPEC.
AMBER-RED-CLEAR
AMBER
81552GASKET, REAR COMBINATION LAMP LENS, RH
81556RIM, REAR COMBINATION LAMP, RH
81558SHADE, REAR COMBINATION LAMP, NO.1 RH
81558ECOVER, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
RED
AMBER-RED-CLEAR
AMBER-RED
AMBER-RED
AMBER-RED
AMBER-RED,AUSTRALIA SPEC.
AMBER-RED,EUR.OR ARL.SPEC.
AMBER-RED,AUSTRALIA SPEC.
AMBER-RED-CLEAR,ARL.SPEC.
FOR 12V,AMBER-RED-CLEAR
AMBER-RED-CLEAR
FOR 12V,AMBER-RED-CLEAR
FOR 12V,AMBER-RED-CLEAR
AMBER-RED-CLEAR,EUR.SPEC.
FOR 24V,AMBER-RED-CLEAR
FOR 24V,AMBER-RED-CLEAR
FOR 24V,AMBER-RED-CLEAR
AMBER-RED-CLEAR
FOR 24V,AMBER-RED-CLEAR
AMBER-RED-CLEAR,ARL.SPEC.
AMBER-RED-CLEAR
AMBER-RED-CLEAR
AMBER-RED-CLEAR
AMBER-RED-CLEAR
81561LENS, REAR COMBINATION LAMP, LH
AMBER-RED
RED
AMBER-RED,AUSTRALIA SPEC.
RED-CLEAR
AMBER-RED
AMBER-RED,EUR.OR ARL.SPEC.
AMBER-RED,AUSTRALIA SPEC.
AMBER-RED
AMBER-RED-CLEAR
AMBER
81562GASKET, REAR COMBINATION LAMP LENS, LH
81566RIM, REAR COMBINATION LAMP, LH
81568SHADE, REAR COMBINATION LAMP, NO.1 LH
81568ECOVER, REAR COMBINATION LAMP, LH
9321994014
9411540500
9452100500
16 parts on this diagram · 6 diagrams in section
