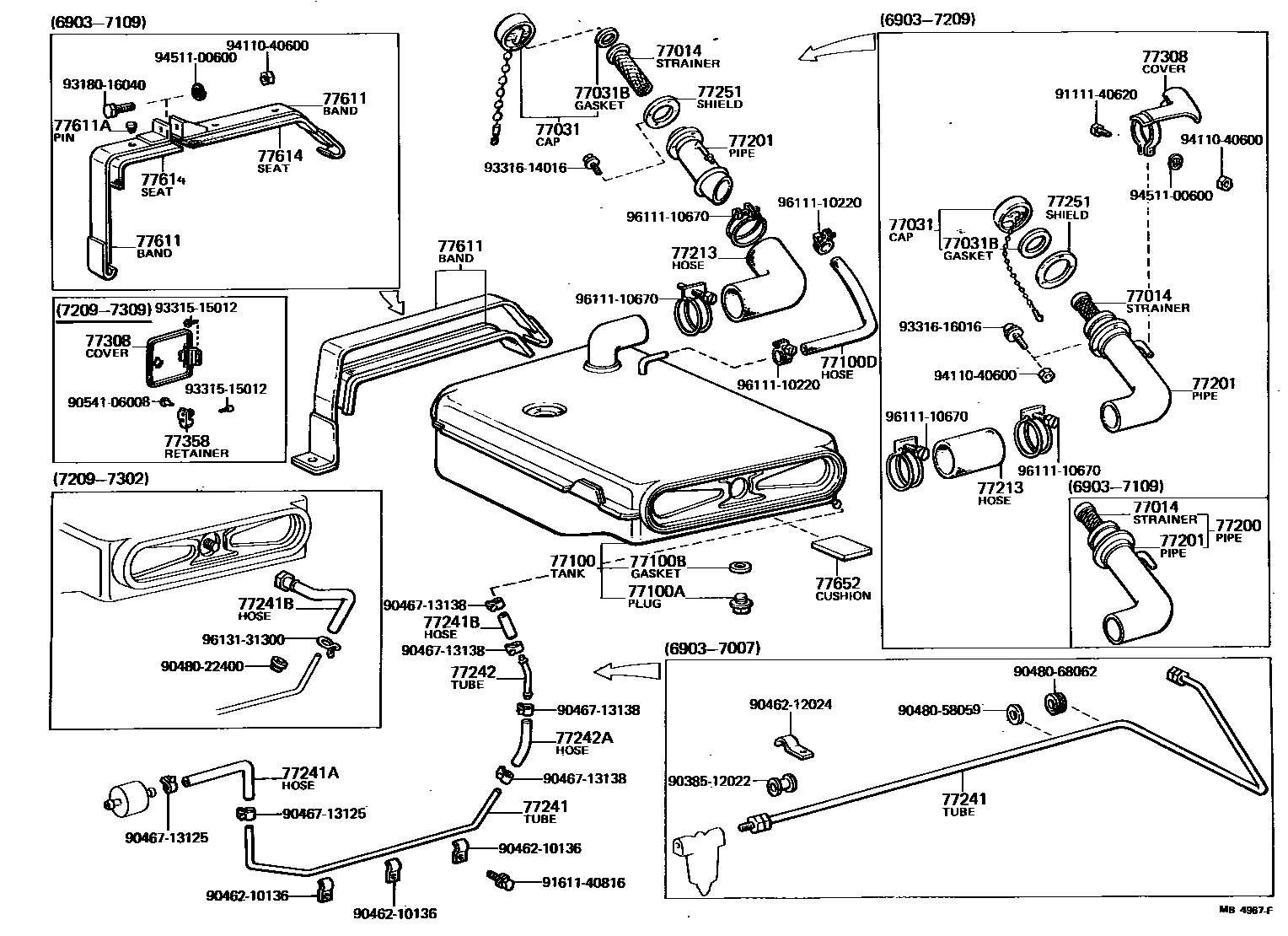

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

77014STRAINER SUB-ASSY, FUEL

main77014-60010iFJ4#,55196903-197109

main77014-60011iBJ4#,FJ4#,55,HJ45197109-198007

sub77672-60040

77031CAP ASSY, FUEL TANK

main77031-26023iFJ45,HJ45..PIC197801-198007

W/VALVE,W/KEY

sub69058-87403

main77031-60010iFJ4#,HJ45197109-197501

L/VALVE,W/KEY

main77031-60011iFJ45197501-197801

L/VALVE,W/KEY

main77310-14070iFJ4#,55197709-198007

W/VALVE,L/KEY

main77310-55080iBJ4#,HJ45197402-198007

W/VALVE,L/KEY

sub77310-60100

main77310-55090iHJ45197302-197709

L/VALVE,L/KEY

sub77310-60100

main77310-60010iFJ4#196903-197109

L/VALVE,L/KEY

sub77310-35010

main77310-60011iFJ43;FJ40,45,55..GEN197109-197709

L/VALVE,L/KEY

main77310-60041iFJ4#196903-197109

L/VALVE,W/KEY

sub77310-60021

main77310-60051iFJ45..PIC197109-198007

W/VALVE,L/KEY

sub77310-60090

main77310-90351iFJ55197012-197109

W/VALVE,L/KEY

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iFJ4#,55..TPC,TPS,VKC,VLS,VTG197709-198007

main77316-27010iFJ45..PIC197109-198007

main90430-40059iFJ4#,55196903-197109

77100TANK ASSY, FUEL

main77001-60012iFJ40,42,43196903-196908

sub77001-60013

sub90105-12018

main77001-60013iFJ40,42,43196908-197203

sub77100-60012

main77001-90333iFJ45196903-196904

main77001-90353iFJ55196903-196909

sub77100-90365

sub77201-90360

sub77264-90352

sub90480-24098

main77001-90355iFJ55196909-197006

sub77001-90357

main77100-60012iFJ40,43197204-197209

main77100-60013iFJ40,43197209-197302

main77100-60014iFJ40,43197302-197309

main77100-60015iFJ40,43197309-197501

sub77100-60014

main77100-60031iFJ45,HJ45196904-197211

main77100-60032iFJ45,HJ45197302-197608

main77100-60033iHJ45197608-197901

main77100-60043iFJ4#..TP,V197501-197901

sub77100-60042

main77100-60044iFJ4#197901-197905

sub77100-60045

sub77203-60020

main77100-60045iBJ4#,FJ4#,HJ45197905-198007

main77100-60051iBJ4#197402-197901

sub77100-60050

main77100-60052iBJ4#,HJ45197901-197905

sub77100-60045

sub77203-60030

main77100-60060iFJ45..PIC197501-197608

main77100-60070iFJ45..ARL197510-197608

W/CANISTER

main77100-60070iFJ45..PIC197608-197901

main77100-60080iFJ55197608-197709

sub77100-60082

sub77213-60022

main77100-60081iFJ55197709-197901

sub77100-60082

main77100-60082iFJ55197901-198007

main77100-60100iFJ45,HJ45197211-197302

main77100-90357iFJ55197006-197209

sub77100-90365

main77100-90359iFJ55197209-197302

sub77100-90361

sub90467-13125

sub95331-08040

main77100-90361iFJ55197302-197501

main77100-90363iFJ55197501-197605

sub77100-90371

main77100-90371iFJ55197605-197608

77100APLUG(FOR FUEL TANK)

main90105-12005iFJ4#,55196903-196908

main90105-12018iFJ55196908-198007

main90341-24036iBJ4#,FJ4#,HJ45197901-198007

77100BGASKET(FOR FUEL TANK)

main90430-12038iBJ4#,FJ4#,55,HJ45196903-197901

main90430-12245iFJ55197706-198007

main90430-24047iBJ4#,FJ4#,HJ45197901-198007

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77221-90332iFJ45196903-197006

sub90445-20631

main77264-90351iFJ55196903-196905

main77264-90352iFJ55196905-196909

main77271-90351iFJ55196909-197005

L=500

sub77271-90352

main77271-90352iFJ55197005-197209

L=550

sub77272-90352

main77272-90351iFJ55196909-197005

L=600

sub77272-90352

main77272-90352iFJ55197005-197608

L=600

main90445-20506iFJ40,42,43196909-197209

L=260

main90445-20631iFJ45,HJ45..PIC197006-197901

main90445-21888iFJ45..ARL197510-197901

W/CANISTER

main90445-22002iBJ4#,FJ4#..TP,V197901-197903

L=200

main90445-22014iFJ45,HJ45..PIC197901-197903

sub90445-22913

main90445-22016iBJ4#,FJ4#..TP,V197903-198007

L=220

sub90445-22024

main90445-22907iBJ4#,FJ4#..TP,V197209-197901

sub90445-22009

main90445-22913iHJ45;FJ45..PIC197903-198007

L=300

sub90445-22024

main90445-24014iFJ55197608-198007

L=160

main90445-24015iFJ55197608-198007

L=270

main90446-16097iFJ40,42,43196903-196909

77200PIPE ASSY, FUEL STRAINER AND OUTER INLET

main77200-60010iFJ40,42,43196903-197109

W/STRAINER

sub77201-60041

main77200-90333iFJ45196903-197109

sub77201-90333

sub77014-60010

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60011iFJ40,42,43196903-196909

sub77201-60041

main77201-60012iFJ40,42,43196909-197109

sub77201-60041

main77201-60013iFJ45,HJ45..PIC197109-197608

main77201-60040iFJ40,42,43196903-196909

W/STRAINER

main77201-60041iFJ40,42,43196909-197109

W/STRAINER

main77201-60042iFJ4#,HJ45197109-197608

W/STRAINER

main77201-60050iBJ4#,FJ4#..TP,V197209-197901

main77201-60051iBJ4#,FJ4#..TP,V197901-198007

main77201-60060iBJ4#,FJ4#..TP,V197209-197901

W/STRAINER

main77201-60061iBJ4#,FJ4#..TP,V197901-198007

W/STRAINER

main77201-60070iFJ45,HJ45..PIC197608-197901

main77201-60070iFJ45..ARL197510-197608

W/CANISTER

main77201-60072iHJ45;FJ45..PIC197901-198007

main77201-60080iFJ45,HJ45..PIC197608-197901

W/STRAINER

main77201-60080iFJ45..ARL197510-197608

W/CANISTER & STRAINER

main77201-60082iHJ45;FJ45..PIC197901-198007

W/STRAINER

main77201-60100iFJ55197608-197709

main77201-60101iFJ55197709-197901

main77201-60102iFJ55197901-198007

main77201-60110iFJ55197608-197709

W/STRAINER

main77201-60111iFJ55197709-197901

W/STRAINER

main77201-60112iFJ55197901-198007

W/STRAINER

main77201-90332iFJ45196903-197109

sub77201-90333

main77201-90333iFJ45196903-197109

W/STRAINER

main77201-90353iFJ55196903-196909

main77201-90354iFJ55196903-196909

W/STRAINER

main77201-90355iFJ55196909-197012

sub77201-90360

main77201-90356iFJ55197012-197109

sub77201-90359

main77201-90357iFJ55196909-197012

W/STRAINER

main77201-90358iFJ55197012-197109

W/STRAINER

sub77201-90361

main77201-90359iFJ55197109-197209

sub77201-90361

main77201-90361iFJ55197109-197209

W/STRAINER

main77201-90363iFJ55197209-197501

main77201-90364iFJ55197501-197608

main77201-90365iFJ55197209-197501

W/STRAINER

main77201-90366iFJ55197501-197608

W/STRAINER

77213HOSE, FUEL TANK SUB INLET

main77212-90352iFJ55196903-197209

sub77212-90353

main77212-90353iFJ55197209-197608

main77213-60020iFJ55197608-197709

main77213-60022iFJ55197709-197901

main77213-60023iFJ55197901-198007

main77217-60010iFJ40,42,43196903-197109

main77217-60011iFJ40,42,43197109-197208

sub77217-60013

main77217-60013iFJ40,43197208-197209

main77217-60014iBJ4#,FJ4#..TP,V197209-197901

main77217-60015iBJ4#,FJ4#..TP,V197901-198007

main77217-60020iFJ45,HJ45197109-197208

sub77217-60021

main77217-60021iFJ45,HJ45..PIC197208-197901

main77217-60022iHJ45;FJ45..PIC197901-198007

main77217-90332iFJ45196903-197109

77241TUBE, FUEL MAIN, NO.1

main77251-60030iFJ40,42,43197007-197501

main77251-60040iFJ45,HJ45197007-197501

main77251-60050iFJ4#..TP,V197501-197709

main77251-60051iFJ40,43197709-197901

main77251-60060iBJ4#..RHD197402-197709

main77251-60061iBJ4#..RHD197709-197901

main77251-60062iBJ4#..RHD197901-198007

main77251-60070iBJ4#..LHD197402-197901

main77251-60080iFJ45,HJ45..PIC197501-197709

main77251-60090iFJ55197608-197709

main77251-60100iFJ45,HJ45197709-197901

main77251-60130iBJ4#..LHD197901-198007

main77251-60140iFJ55197709-198007

main77251-60150iFJ40,43197901-198007

main77251-60160iFJ45197901-198007

main77251-60170iHJ45197909-198007

FOR W/SEGIMENTA

main77255-60090iHJ45197901-198007

main77256-90351iFJ55196903-197006

sub77256-90352

sub90461-10627

main77256-90352iFJ55197006-197209

main77256-90353iFJ55197209-197211

sub77256-90354

main77256-90354iFJ55197211-197302

sub77256-90355

sub90462-12212

sub91651-40616

main77256-90355iFJ55197302-197608

main90923-01042iFJ4#196903-197007

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main77202-90351iFJ55196903-197006

L=400

main77211-90352iFJ55197006-197207

L=440

sub95331-08044

main77259-60040iFJ4#197709-197901

main77260-60011iFJ4#197901-198007

main90445-12089iFJ4#197012-197108

sub90445-12627

main90445-12096iFJ4#197007-197012

sub90445-12628

main95311-07015iFJ4#197108-197207

main95331-08005iFJ55197608-197709

*H,L=50

sub95332-08005

main95331-08013iFJ4#197207-197209

*H,L=130

sub95332-08013

main95331-08015iFJ4#197209-197706

*H,L=150

sub95332-08015

main95331-08030iFJ55197211-197302

*H,L=300

sub95332-08030

main95331-08032iBJ4#..LHD197402-197709

*H,L=320

sub95332-08032

main95331-08036iHJ45197204-197709

*H,L=360

sub95332-08036

main95331-08040iBJ4#..RHD197402-197706

*H,L=400

sub95332-08040

main95331-08044iFJ55197207-197211

*H,L=440

sub95332-08044

main95331-08050iFJ55197302-197608

*H,L=500

sub95332-08050

main95332-08015iFJ4#197706-197709

L=200(*H,L=150)

sub95332-08020

main95332-08018iFJ55197709-197901

L=200(*H,L=180)

sub95332-08020

main95332-08020iFJ55197901-198007

L=200

sub95333-08020

main95332-08028iBJ4#..RHD197709-197904

L=300(*H,L=220)

sub95332-08030

main95332-08030iHJ45197909-198007

L=300(*H,L=220),W/SEDIMENTER

sub95333-08030

main95332-08030iHJ45197909-198007

L=300(*H,L=260),W/SEDIMENTER

sub95333-08030

main95332-08030iBJ4#..RHD197904-198007

L=300(*H,L=220)

sub95333-08030

main95332-08032iBJ4#..LHD197709-197907

L=400(*H,L=320)

sub95332-08040

main95332-08036iHJ45197709-197901

L=400(*H,L=360)

sub95332-08040

main95332-08040iHJ45197901-198007

L=400(*H,L=360)

sub95333-08040

main95332-08040iBJ4#..LHD197907-198007

L=400(*H,L=380)

sub95333-08040

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main77203-90351iFJ55196903-197006

L=300

main77260-60030iFJ4#,HJ45197901-198007

main77260-60050iHJ45197909-198007

FOR W/SEGIMENTA

main90445-14030iFJ55197608-198007

L=410

main90923-01121iFJ4#197007-197012

sub90923-01163

main90923-01163iFJ4#197012-197108

main90923-01175iFJ55197006-197209

L=300

main90923-01182iFJ4#,HJ45197108-197302

main90923-01194iFJ55197209-197302

main95331-08024iBJ4#,FJ4#..TP,V197302-197706

*H,L=240

sub95332-08024

main95331-08032iFJ45,HJ45..PIC197302-197706

*H,L=320

sub95332-08032

main95331-08036iFJ55197302-197608

*H,L=360

sub95332-08036

main95332-08024iBJ4#,FJ40,43197706-197901

L=300(*H,L=240)

sub95332-08030

main95332-08032iFJ45,HJ45197706-197901

L=400(*H,L=320)

sub95332-08040

main95332-08034iBJ4#197901-197904

L=400(*H,L=340)

sub95332-08040

main95332-08040iBJ4#197909-198007

L=400,W/SEDIMENTER

sub95333-08040

main95332-08040iBJ4#197904-198007

L=400

sub95333-08040

77242TUBE, FUEL MAIN, NO.2

main77253-60010iBJ4#,FJ4#,HJ45197302-197901

77242AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)

main95331-08055iBJ4#,FJ4#,HJ45197302-197705

*H,L=550

sub95332-08055

main95332-08055iBJ4#,FJ40,43197705-197901

L=600(*H,L=550)

sub95332-08060

main95332-08065iFJ45,HJ45197705-197901

L=1000(*H,L=650)

sub95332-08080

77251SHIELD, FUEL TANK, INLET, NO.1

main77262-90351iFJ55196903-197012

main77262-90352iFJ55197012-197608

main77293-60010iFJ45,HJ45..PIC196903-197901

main77293-60020iBJ4#,FJ4#..TP,V197209-197901

main77293-60030iBJ4#,FJ4#,55,HJ45197608-198007

77308COVER SUB-ASSY, FUEL INLET BOX

main61802-90300iBJ4#,FJ4#..TP,V197209-197901

main61802-90301iBJ4#,FJ4#..TP,V197901-197904

main61802-90302iBJ4#,FJ4#,HJ45..TP,V197904-198007

main61803-90351iFJ55197208-197805

main61803-90352iFJ55197805-198007

main61821-90903iFJ55196903-197208

main77011-60010iFJ40,42,43196903-196909

sub77011-60011

main77011-60011iFJ40,43196909-197209

77358RETAINER, FUEL INLET CUSHION

main61815-90351iFJ55196903-197208

main61815-90353iFJ55197208-198007

main61824-90300iBJ4#,FJ4#..TP,V197209-197608

main61824-90301iBJ4#,FJ4#..TP,V197608-197901

main61824-90302iBJ4#,FJ4#,HJ45..TP,V197901-198007

77611BAND, FUEL TANK

main77601-60010iFJ40,42,43196903-197109

FRONT

main77601-60041iBJ4#,FJ4#..TP,V197901-198007

RH.

main77601-60051iHJ45..VKC197901-198007

RH.

main77601-90902iFJ45,HJ45196903-197510

sub77610-90300

main77601-90903iFJ40,42,43197109-197309

main77602-60011iFJ40,42,43196903-197109

REAR

main77602-60021iBJ4#,FJ4#..TP,V197901-198007

LH.

main77602-60031iFJ45,HJ45..PIC197901-198007

LH.

main77610-90300iFJ45,HJ45..PIC197510-197901

77611APIN (FOR FUEL TANK BAND)

main77653-35010iFJ4#196903-197109

77614SEAT, FUEL TANK BAND

main77615-60010iFJ40,42,43196903-197109

FRONT

main77616-60010iFJ40,42,43196903-197109

REAR

77652CUSHION, FUEL TANK, NO.1

main77651-60020iBJ4#,FJ4#,HJ45197901-198007

750X100

main77651-60030iBJ4#,FJ4#,HJ45197810-197901

main77652-60010iBJ4#,FJ4#,HJ45196903-197810

sub77651-60030

main77652-60011iBJ4#,FJ4#,HJ45197901-198007

230X80

sub77653-60010

main77653-60010iBJ4#,FJ4#,HJ45197901-198007

350X80

main77654-60010iBJ4#,FJ4#,HJ45197901-198007

100X100

sub77653-60010

9038512022

main90385-12022

9046210136

main90462-10136

9046212024

main90462-12024

9046713125

main90467-13125

9046713138

main90467-13138

9048022400

main90480-22400

9048058059

main90480-58059

9048068062

main90480-68062

9054106008

main90541-06008

9111140620

main91111-40620

9161140816

main91611-40816

9318016040

main93180-16040

9331515012

main93315-15012

9331614016

main93316-14016

9331616016

main93316-16016

9411040600

main94110-40600

9451100600

main94511-00600

9611110220

main96111-10220

9611110670

main96111-10670

9613131300

main96131-31300

42 parts on this diagram · 12 diagrams in section
