EPC Data

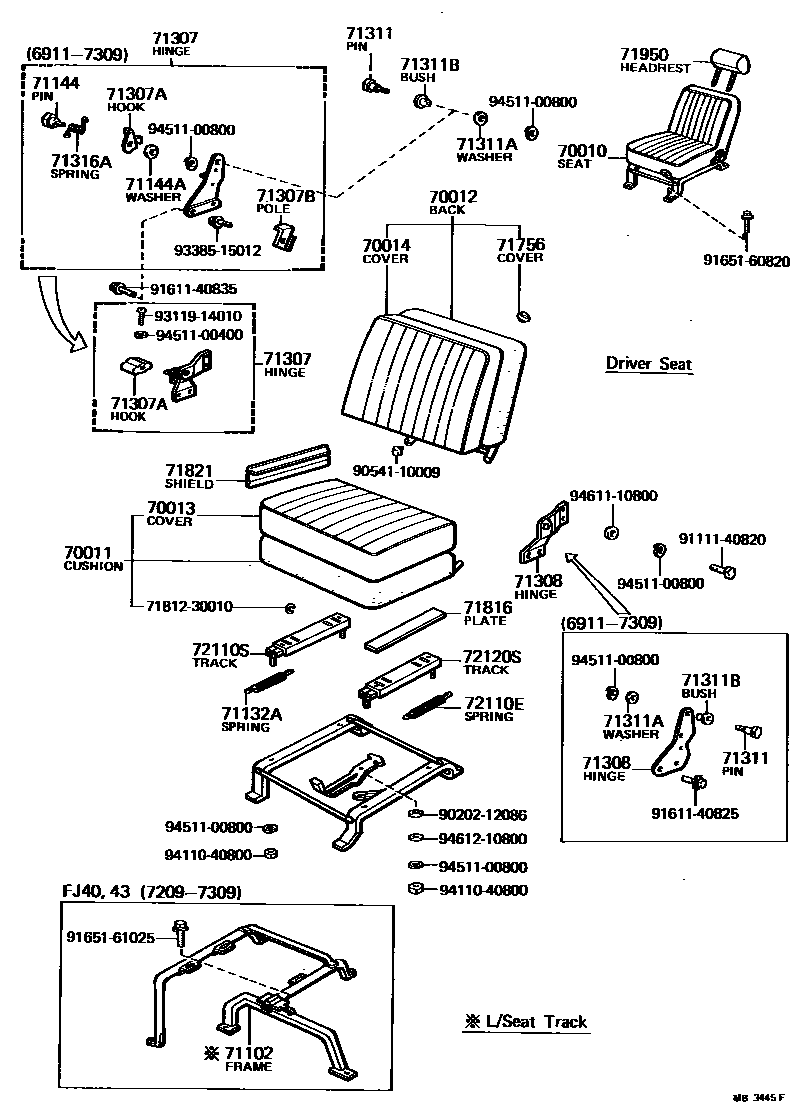

SEAT & SEAT TRACK

Parts diagram
70010SEAT ASSY, NO.1
main71100-60012-02i196903-196908
DRIVER SIDE,RED/MAROON
sub71100-60012
sub71100-60013
main71100-60013-02i196908-196911
DRIVER SIDE,RED/MAROON
sub71100-60014
main71100-60014i196911-197105
DRIVER SIDE
main71100-60015i197105-197109
DRIVER SIDE
main71100-60031-02i196903-196908
DRIVER SIDE,RED/MAROON
sub71100-60031
sub71100-60032
main71100-60032-02i196908-196911
DRIVER SIDE,RED/MAROON
sub71100-60033
main71100-60033i196911-197209
DRIVER SIDE
main71100-60051-02i196903-196908
DRIVER SIDE,W/SEAT TRACK,RED/MAROON
sub71100-60051
sub71100-60052
main71100-60052-02i196908-196911
DRIVER SIDE,W/SEAT TRACK,RED/MAROON
sub71100-60053
main71100-60053i196911-197209
DRIVER SIDE,W/SEAT TRACK
main71100-90071i197209-197309
DRIVER SIDE,W/SEAT TRACK
main71100-90304-02i196908-196911
DRIVER SIDE,RED/MAROON
sub71100-90312
main71100-90311i196908-196911
DRIVER SIDE
main71100-90312i196911-197110
DRIVER SIDE
main71100-90313i196911-197309
DRIVER SIDE
main71100-90316i197109-197209
DRIVER SIDE,W/SEAT TRACK
main71100-90318i197109-197209
DRIVER SIDE
main71100-90319i197110-197309
DRIVER SIDE
main71100-90334-02i196903-196908
DRIVER SIDE,RED/MAROON
sub71100-90334
sub71100-90304
main71100-90335-02i196903-196908
DRIVER SIDE,RED/MAROON
sub71100-90335
sub71100-90305
main71100-90336i197209-197309
DRIVER SIDE,W/SEAT TRACK
main71100-90337i197209-197309
DRIVER SIDE
main71100-90339i197209-197309
DRIVER SIDE
main71100-90351i196903-196910
VL.
main71100-90352i196903-196910
VL.
main71100-90356i196910-197107
VL.
sub71100-90361
main71100-90357i196910-197107
VL.
sub71100-90362
main71100-90361i197107-197509
VL.
main71100-90362i197107-197509
VL.
main71100-90363i197209-197509
PF.
main71100-90366i197209-197509
PF.
main71100-90369i197501-197509
VL.
main71200-60021-02i196903-196908
ASSISTANT SIDE,RED/MAROON
sub71200-60021
sub71200-60022
main71200-60022-02i196908-196911
ASSISTANT SIDE,RED/MAROON
sub71200-60023
main71200-60023i196911-197209
ASSISTANT SIDE
main71200-60032-02i196903-196908
ASSISTANT SIDE,RED/MAROON
sub71200-60032
sub71200-60033
main71200-60033-02i196908-196911
ASSISTANT SIDE,RED/MAROON
sub71200-60034
main71200-60034i196911-197105
ASSISTANT SIDE
main71200-60035i197105-197109
ASSISTANT SIDE
main71200-90301i196908-196911
ASSISTANT SIDE
main71200-90302i196908-196911
ASSISTANT SIDE
sub71200-90301
main71200-90306i196911-196912
ASSISTANT SIDE
main71200-90307i196911-197110
ASSISTANT SIDE
main71200-90309i196912-197110
ASSISTANT SIDE
main71200-90311i197110-197309
ASSISTANT SIDE
main71200-90312i197109-197209
ASSISTANT SIDE
main71200-90319i197110-197309
ASSISTANT SIDE
main71200-90334-02i196903-196908
ASSISTANT SIDE,RED/MAROON
sub71200-90334
sub71200-90302
main71200-90335-02i196903-196908
ASSISTANT SIDE,RED/MAROON
sub71200-90335
sub71200-90303
main71200-90336i197209-197309
ASSISTANT SIDE,W/HEAD REST
main71200-90337i197209-197309
ASSISTANT SIDE,L/HEAD REST
main71200-90338i197209-197309
ASSISTANT SIDE,W/HEAD REST
main71200-90339i197209-197309
ASSISTANT SIDE,L/HEAD REST
70011CUSHION ASSY, NO.1 SEAT
main71410-60010i197204-197209
DRIVER SIDE
main71410-90075i197703-197901
DRIVER SIDE,W/SEAT TRACK
sub71410-90076
main71410-90076i197703-197901
DRIVER SIDE
main71410-90077i197703-197901
DRIVER SIDE,W/SEAT TRACK
sub71410-90078
main71410-90081i197901-198007
DRIVER SIDE
sub71410-90800
sub90523-08001
main71410-90300i197204-197209
DRIVER SIDE
main71410-90302i197204-197309
DRIVER SIDE
main71410-90319i197204-197309
DRIVER SIDE,W/SEAT TRACK
main71410-90336i197209-197309
DRIVER SIDE,W/SEAT TRACK
main71410-90337i197209-197309
DRIVER SIDE
main71410-90338i197209-197309
DRIVER SIDE,W/SEAT TRACK
main71410-90339i197209-197309
DRIVER SIDE
main71410-90340i197309-197312
DRIVER SIDE,W/SEAT TRACK
sub71410-90344
main71410-90341i197309-197407
DRIVER SIDE
main71410-90342i197309-197312
DRIVER SIDE,W/SEAT TRACK
sub71410-90343
main71410-90343i197312-197407
DRIVER SIDE,W/SEAT TRACK
main71410-90344i197312-197407
DRIVER SIDE,W/SEAT TRACK
main71410-90345i197407-197703
DRIVER SIDE,W/SEAT TRACK
sub71410-90078
main71410-90346i197407-197501
DRIVER SIDE
main71410-90347i197407-197703
DRIVER SIDE,W/SEAT TRACK
sub71410-90349
main71410-90348i197407-197501
DRIVER SIDE
main71410-90349i197505-197703
DRIVE SIDE
sub71410-90076
main71410-90351i196903-196910
VL.
main71410-90356i196910-197107
VL.
sub71410-90358
main71410-90358i197107-197509
VL.
main71410-90359i197209-197509
PF.
main71410-90361i197509-197703
VL.
sub71410-90364
main71410-90363i197509-197703
PF.
sub71410-90366
main71410-90364i197703-197901
VL.
main71410-90366i197703-197901
PF.
main71410-90367i197707-197901
VL.
main71410-90369i197707-197901
PF.
main71410-90370i197901-198007
VL.
main71410-90371i197901-198007
PF.
main71410-90372i197901-198007
VL.
main71410-90374i197901-198007
PF.
main71420-60010i197204-197209
ASSISTANT SIDE
main71420-60020i197204-197209
ASSISTANT SIDE
main71420-90081i197901-198007
DRIVER SIDE
sub71420-90800
sub90523-08001
main71420-90084i197909-198007
DRIVER SIDE,PRINT LEATHER
sub71420-90803
sub90523-08001
main71420-90302i197204-197309
ASSISTANT SIDE
main71420-90319i197204-197309
ASSISTANT SIDE
main71450-90070i197505-197703
ASSISTANT SIDE
sub71450-90076
main71450-90072i197703-197901
ASSISTANT SIDE
main71450-90073i197703-197901
ASSISTANT SIDE
sub71450-90074
main71450-90074i197703-197901
ASSISTANT SIDE
main71450-90075i197703-197901
ASSISTANT SIDE
sub71450-90076
main71450-90076i197703-197901
ASSISTANT SIDE
main71450-90077i197703-197901
ASSISTANT SIDE
main71450-90079i197706-197901
ASSISTANT SIDE
main71450-90081i197901-198007
ASSISTANT SIDE
sub71410-90810
main71450-90083i197901-198007
ASSISTANT SIDE
sub71410-90811
main71450-90084i197909-198007
ASSISTANT SIDE,PRINT LEATHER
sub71410-90809
main71450-90336i197209-197309
ASSISTANT SIDE
main71450-90338i197209-197309
ASSISTANT SIDE
main71450-90339i197309-197407
ASSISTANT SIDE
main71450-90340i197309-197407
ASSISTANT SIDE
sub71450-90072
main71450-90342i197309-197407
ASSISTANT SIDE
main71450-90343i197309-197310
ASSISTANT SIDE
sub71450-90344
main71450-90344i197310-197407
ASSISTANT SIDE
sub71450-90078
main71450-90345i197407-197703
ASSISTANT SIDE
sub71450-90349
main71450-90346i197407-197703
ASSISTANT SIDE
sub71450-90070
main71450-90347i197407-197703
ASSISTANT SIDE
sub71450-90072
main71450-90348i197407-197703
ASSISTANT SIDE
sub71450-90078
main71450-90349i197505-197703
ASSISTANT SIDE
sub71450-90074
main71460-90081i197901-198007
ASSISTANT SIDE
70012BACK ASSY, NO.1 SEAT
main71430-90070i197407-197703
DRIVER SIDE,W/SEAT TRACK
sub71430-90078
main71430-90071i197407-197509
DRIVER SIDE
main71430-90072i197407-197703
DRIVER SIDE
sub71430-90080
main71430-90078i197703-197901
DRIVER SIDE,W/SEAT TRACK
main71430-90079i197703-197901
DRIVER SIDE
main71430-90080i197703-197901
DRIVER SIDE
main71430-90081i197703-197901
DRIVER SIDE
sub71430-90082
main71430-90084i197901-198007
DRIVER SIDE
main71430-90086i197901-198007
DRIVER SIDE
main71430-90300i197204-197209
DRIVER SIDE
main71430-90305i197204-197309
DRIVER SIDE
main71430-90306i197204-197309
DRIVER SIDE
main71430-90307i197204-197209
DRIVER SIDE,W/SEAT TRACK
main71430-90336i197209-197309
DRIVER SIDE,W/SEAT TRACK
main71430-90337i197209-197309
DRIVER SIDE
main71430-90338i197209-197309
DRIVER SIDE
main71430-90342i197309-197407
DRIVER SIDE
sub71430-90071
main71430-90343i197309-197407
DRIVER SIDE
main71430-90344i197309-197407
DRIVER SIDE
main71430-90346i197309-197407
DRIVER SIDE,W/SEAT TRACK
sub71430-90078
main71430-90347i197309-197407
DRIVER SIDE
sub71430-90080
main71430-90348i197407-197703
DRIVER SIDE
sub71430-90079
main71430-90349i197407-197703
DRIVER SIDE
sub71430-90082
main71430-90351i196903-196910
VL.
main71430-90356i196910-197509
VL.W/HEAD REST
main71430-90357i196910-197509
VL.L/HEAD REST
main71430-90358i197209-197509
PF.
main71430-90362i197509-197703
VL.
sub71430-90365
main71430-90364i197509-197703
PF.
sub71430-90366
main71430-90365i197703-197901
VL.
main71430-90367i197703-197901
PF.
main71430-90371i197901-198007
VL.
main71430-90372i197901-198007
PF.
main71440-60010i197204-197209
ASSISTANT SIDE
main71440-90084i197901-198007
DRIVER SIDE
sub71440-90816
main71440-90086i197901-198007
DRIVER SIDE
sub71440-90800
main71440-90088i197909-198007
DRIVER SIDE,PRINT LEATHER
sub71440-90814
main71440-90089i197909-198007
DRIVER SIDE,PRINT LEATHER
main71440-90304i197204-197309
ASSISTANT SIDE
main71440-90305i197204-197309
ASSISTANT SIDE
main71470-90070i197703-197901
ASSISTANT SIDE
main71470-90071i197703-197901
ASSISTANT SIDE
sub71470-90072
main71470-90084i197901-198007
ASSISTANT SIDE
sub71430-90818
main71470-90086i197901-198007
ASSISTANT SIDE
sub71430-90819
main71470-90088i197909-198007
ASSISTANT SIDE,PRINT LEATHER
main71470-90089i197909-198007
ASSISTANT SIDE,PRINT LEATHER
main71470-90336i197209-197309
ASSISTANT SIDE
main71470-90338i197209-197309
ASSISTANT SIDE
main71470-90339i197309-197407
ASSISTANT SIDE
main71470-90340i197309-197407
ASSISTANT SIDE
sub71470-90348
main71470-90341i197309-197407
ASSISTANT SIDE
main71470-90342i197407-197703
ASSISTANT SIDE
sub71470-90349
main71470-90343i197309-197407
ASSISTANT SIDE
sub71470-90072
main71470-90344i197407-197703
ASSISTANT SIDE
sub71470-90070
main71470-90345i197407-197703
ASSISTANT SIDE
sub71470-90348
main71470-90346i197407-197703
ASSISTANT SIDE
sub71470-90072
main71470-90348i197703-197901
ASSISTANT SIDE
main71470-90349i197703-197901
ASSISTANT SIDE
main71480-90084i197901-198007
ASSISTANT SIDE
70013COVER ASSY, NO.1 SEAT CUSHION
main71071-60010-02i196903-197309
DRIVER SIDE,RED/MAROON
main71071-60020-02i196903-197309
DRIVER SIDE,RED/MAROON
main71071-90300-02i197109-197309
DRIVER SIDE,W/SEAT TRACK,RED/MAROON
main71071-90300-02i196911-197108
DRIVER SIDE,RED/MAROON
main71071-90301i196911-197309
DRIVER SIDE
main71071-90318i197505-197703
DRIVER SIDE
sub71071-90339
main71071-90323i197309-197407
DRIVER SIDE,W/SEAT TRACK
main71071-90324i197309-197501
DRIVER SIDE
main71071-90325i197309-197703
DRIVER SIDE,W/SEAT TRACK
sub71071-90318
main71071-90326i197407-197501
DRIVER SIDE
main71071-90327i197407-197703
DRIVER SIDE,W/SEAT TRACK
sub71071-90341
main71071-90332-02i196903-196911
DRIVER SIDE,RED/MAROON
main71071-90333i196903-196911
DRIVER SIDE
main71071-90338i197703-197901
DRIVER SIDE,W/SEAT TRACK
sub71071-90339
main71071-90339i197703-197901
DRIVER SIDE
main71071-90340i197703-197901
DRIVER SIDE,W/SEAT TRACK
sub71071-90341
main71071-90344i197901-198007
DRIVER SIDE
sub71071-90345
main71071-90347i197909-198007
DRIVER SIDE,PRINT LEATHER
sub71071-90805
main71071-90351i196903-196910
VL.
main71071-90352i196910-197107
VL.
sub71071-90360
main71071-90360i197107-197509
VL.
main71071-90361i197209-197509
PF.
main71071-90363i197509-197703
VL.
sub71071-90366
main71071-90365i197509-197703
PF.
sub71071-90368
main71071-90366i197703-197901
VL.
sub71071-90369
main71071-90368i197703-197901
PF.
sub71071-90370
main71071-90369i197707-197901
VL.
main71071-90371i197707-197901
PF.
sub71071-90370
main71071-90372i197901-198007
VL.
sub71071-90374
main71071-90373i197901-198007
PF.
sub71071-90375
main71071-90374i197901-198007
VL.
main71071-90376i197901-198007
PF.
sub71071-90375
main71072-60010-02i196903-197309
ASSISTANT SIDE,RED/MAROON
main71072-60020-02i196903-197309
ASSISTANT SIDE,RED/MAROON
main71072-90301-02i196911-197309
ASSISTANT SIDE,RED/MAROON
main71072-90302i196911-197309
ASSISTANT SIDE
main71072-90309i197309-197407
ASSISTANT SIDE
main71072-90310i197309-197407
ASSISTANT SIDE
main71072-90311i197309-197407
ASSISTANT SIDE
main71072-90312i197309-197310
ASSISTANT SIDE
sub71072-90313
main71072-90313i197310-197407
ASSISTANT SIDE
main71072-90314i197407-197703
ASSISTANT SIDE
sub71072-90318
main71072-90315i197407-197703
ASSISTANT SIDE
sub71072-90319
main71072-90316i197407-197703
ASSISTANT SIDE
sub71072-90339
main71072-90317i197407-197703
ASSISTANT SIDE
sub71072-90340
main71072-90318i197505-197703
ASSISTANT SIDE
sub71072-90335
main71072-90319i197505-197703
ASSISTANT SIDE
sub71072-90337
main71072-90332-02i196903-196911
ASSISTANT SIDE,RED/MAROON
main71072-90334i197703-197901
ASSISTANT SIDE
main71072-90335i196903-197901
ASSISTANT SIDE
main71072-90336i197703-197901
ASSISTANT SIDE
sub71072-90337
main71072-90337i197703-197901
ASSISTANT SIDE
main71072-90338i197703-197901
ASSISTANT SIDE
sub71072-90340
main71072-90339i197703-197901
ASSISTANT SIDE
main71072-90341i197706-197901
ASSISTANT SIDE
main71072-90344i197901-198007
ASSISTANT SIDE
sub71071-90806
main71072-90346i197901-198007
ASSISTANT SIDE
sub71071-90807
main71072-90347i197909-198007
ASSISTANT SIDE,PRINT LEATHER
70014COVER ASSY, NO.1 SEATBACK
main71073-60010-02i196903-196908
DRIVER SIDE,RED/MAROON
main71073-90070i197703-197901
DRIVER SIDE,W/SEAT TRACK
main71073-90071i197703-197901
DRIVER SIDE
main71073-90072i197703-197901
DRIVER SIDE
main71073-90078i197901-198007
DRIVER SIDE
sub71073-90080
main71073-90080i197901-198007
DRIVER SIDE
main71073-90300-02i196908-197309
DRIVER SIDE,RED/MAROON
main71073-90303i196908-196911
DRIVER SIDE
main71073-90304i196908-196911
DRIVER SIDE
main71073-90308i196911-197309
DRIVER SIDE
main71073-90309i196911-197309
DRIVER SIDE
main71073-90310i197109-197309
DRIVER SIDE,W/SEAT TRACK
main71073-90323i197309-197703
DRIVER SIDE,W/SEAT TRACK
sub71073-90349
main71073-90324i197309-197501
DRIVER SIDE
main71073-90325i197501-197703
DRIVER SIDE,W/SEAT TRACK
sub71073-90070
main71073-90332-02i196903-196908
DRIVER SIDE,RED/MAROON
main71073-90342i197309-197703
DRIVER SIDE
sub71073-90071
main71073-90343i197309-197407
DRIVER SIDE
main71073-90344i197407-197703
DRIVER SIDE
sub71073-90073
main71073-90349i197703-197901
DRIVER SIDE,W/SEAT TRACK
main71073-90351i196903-196910
VL.
main71073-90352i196910-197509
VL.
main71073-90354i197209-197509
PF.
main71073-90357i197509-197703
VL.
sub71073-90360
main71073-90359i197509-197703
PF.
sub71073-90361
main71073-90360i197703-197901
VL.
main71073-90362i197703-197901
PF.
main71073-90366i197901-198007
VL.
main71073-90367i197901-198007
PF.
main71074-60010-02i196903-196908
ASSISTANT SIDE,RED/MAROON
main71074-90078i197901-198007
ASSISTANT SIDE
sub71073-90813
main71074-90080i197901-198007
ASSISTANT SIDE
sub71073-90815
main71074-90082i197901-198007
DRIVER SIDE
sub71074-90084
main71074-90084i197901-198007
DRIVER SIDE
main71074-90085i197909-198007
DRIVER SIDE,PRINT LEATHER
main71074-90086i197909-198007
DRIVER SIDE,PRINT LEATHER
main71074-90087i197909-198007
ASSISTANT SIDE,PRINT LEATHER
main71074-90088i197909-198007
ASSISTANT SIDE,PRINT LEATHER
main71074-90300-02i196908-197309
ASSISTANT SIDE,RED/MAROON
main71074-90302i196908-196911
ASSISTANT SIDE
main71074-90305i196911-197309
ASSISTANT SIDE
main71074-90309i196908-197309
ASSISTANT SIDE
main71074-90310i197309-197407
ASSISTANT SIDE
main71074-90311i197309-197703
ASSISTANT SIDE
sub71074-90320
main71074-90312i197309-197703
ASSISTANT SIDE
sub71074-90319
main71074-90313i197407-197703
ASSISTANT SIDE
sub71074-90316
main71074-90314i197407-197703
ASSISTANT SIDE
sub71074-90317
main71074-90316i197703-197901
ASSISTANT SIDE
main71074-90317i197703-197901
ASSISTANT SIDE
main71074-90318i197703-197901
ASSISTANT SIDE
main71074-90320i197703-197901
ASSISTANT SIDE
71102FRAME SUB-ASSY, FRONT SEAT SET INNER
main71101-90321i197209-197901
FOR SEPARATE SEAT
main71101-90322i197209-197901
FOR SEPARATE SEAT
main71103-90336i197209-197407
FOR BENCH SEAT
sub71103-90341
main71103-90338i197209-197407
FOR BENCH SEAT,W/SEAT TRACK
sub71103-90342
main71103-90339i197209-197407
FOR BENCH SEAT
sub71103-90343
main71103-90341i197407-197901
FOR BENCH SEAT
main71103-90342i197407-197901
FOR BENCH SEAT,W/SEAT TRACK
main71103-90343i197407-197501
71132BRACKET, FRONT SEAT SET, OUTER LH
main71105-90336i197209-197407
FOR BENCH SEAT
main71105-90339i197209-197407
FOR BENCH SEAT
main71105-90341i197209-197407
FOR BENCH SEAT,W/SEAT TRACK
main71105-90342i197407-197901
FOR BENCH SEAT
main71105-90343i197407-197501
FOR BENCH SEAT
main71134-90321i197209-197901
FOR SEPARATE SEAT
main71134-90342i197407-197901
FOR BENCH SEAT,W/SEAT TRACK
71132ASPRING, TENSION (FOR SEAT TRACK)
main90506-18010i196903-197008
main90506-18330i197008-197803
main90506-20183i196903-197608
71144PIN, SEAT HINGE HOOK
main71144-90301i196911-197408
main71312-90300i197408-197901
71144AWASHER, PLATE (FOR SEAT HINGE HOOK PIN)
main90202-16085i196911-197901
71307HINGE SUB-ASSY, DRIVER SEAT, RH
main71160-90310i196903-196911
main71160-90311i196911-197407
sub71160-90312
main71160-90312i197407-197901
main71306-90333i196903-196911
main71308-90301i196911-197407
sub71157-90303
main71308-90302i197407-197901
sub71157-90303
71307AHOOK, DRIVER SEAT HINGE, RH
main71142-90304i197408-197901
main71304-90300i196911-197408
main71316-90310i196903-196911
71307BPOLE, DRIVER SEAT HINGE HOOK, RH
main71147-90301i196911-197901
71308HINGE SUB-ASSY, DRIVER SEAT, LH
main71170-90310i196903-196911
main71190-90311i196911-197407
sub71190-90312
main71190-90312i197407-197901
main71307-90301i196911-197407
sub71159-90301
main71307-90302i197407-197901
sub71159-90301
main71307-90333i196903-196911
71311PIN, FRONT SEAT HINGE
main71311-90300i196911-197901
BENCH SEAT
main71311-90325i197307-197901
SEPARATE SEAT,OUTER
main71312-90325i197307-197901
SEPARATE SEAT,INNER
71311AWASHER, PLATE (FOR FRONT SEAT HINGE PIN)
main90074-30002i196911-197006
sub90202-16084
main90202-16084i197006-197901
71311BBUSH (FOR FRONT SEAT HINGE PIN)
main90074-69001i196911-197006
sub90386-12136
main90386-12136i197006-197901
71316ASPRING, TORSION, NO.1
main90508-18234i196911-197901
71756COVER, AIR HOLE
main71756-30020-01i196910-198007
FOR BENCH SEAT,BLACK
sub71756-30020
main71756-90321i197209-198007
FOR SEPARATE SEAT
71816PLATE, DRIVER SEAT LEATHER SET
main71823-60010i196903-197309
71821SHIELD, FRONT SEAT SIDE, RH
main71821-60010i196903-197004
main71821-60020i196903-197004
main71821-90300i197901-198007
main71821-90332i197004-197309
71950HEADREST ASSY, FRONT SEAT
main71950-22050-03i197209-197509
SEPARATE SEAT,GRAY
sub71950-22050
main71950-39026-03i196910-197509
GRAY
main71950-60010i196910-197901
main71950-90301i197901-198007
main71950-90351i197501-197509
main71950-90352i197509-197901
main71950-90353i197901-198007
72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)
main90506-12009i196903-197309
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
main72110-60010i196903-197309
BENCH SEAT
main72110-90321i197209-197307
SEPARATE SEAT
main72110-90322i197209-197307
SEPARATE SEAT
main72110-90325i197307-197901
SEPARATE SEAT
main72110-90326i197307-197709
SEPARATE SEAT
main72110-90329i197709-197901
SEPARATE SEAT
main72110-90330i197309-197901
BENCH SEAT
main72110-90333i197901-198007
SEPARATE SEAT
main72130-90331i197407-197901
BENCH SEAT
main72130-90332i197706-197901
BENCH SEAT
main72140-90330i197309-197407
BENCH SEAT
sub72130-90331
72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
main72110-60010i196903-197309
BENCH SEAT
main72110-90330i197706-197901
BENCH SEAT
main72120-90321i197209-197307
SEPARATE SEAT
main72120-90322i197209-197307
SEPARATE SEAT
main72120-90325i197307-197901
SEPARATE SEAT
main72120-90326i197307-197901
SEPARATE SEAT
main72120-90330i197309-197901
BENCH SEAT
main72120-90333i197901-198007
SEPARATE SEAT
main72130-90330i197309-197407
BENCH SEAT
sub72130-90331
main72130-90331i197407-197901
BENCH SEAT
7181230010CLIP (FOR FRONT SEAT CUSHION COVER)
main71812-30010
9020212086
main90202-12086
9054110009
main90541-10009
9111140820
main91111-40820
9161140825
main91611-40825
9161140835
main91611-40835
9165160820
main91651-60820
9165161025
main91651-61025
9311914010
main93119-14010
9338515012
main93385-15012
9411040800
main94110-40800
9451100400
main94511-00400
9451100800
main94511-00800
9461110800
main94611-10800
9461210800
main94612-10800

40 parts on this diagram · 22 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
