BACK DOOR PANEL & GLASS

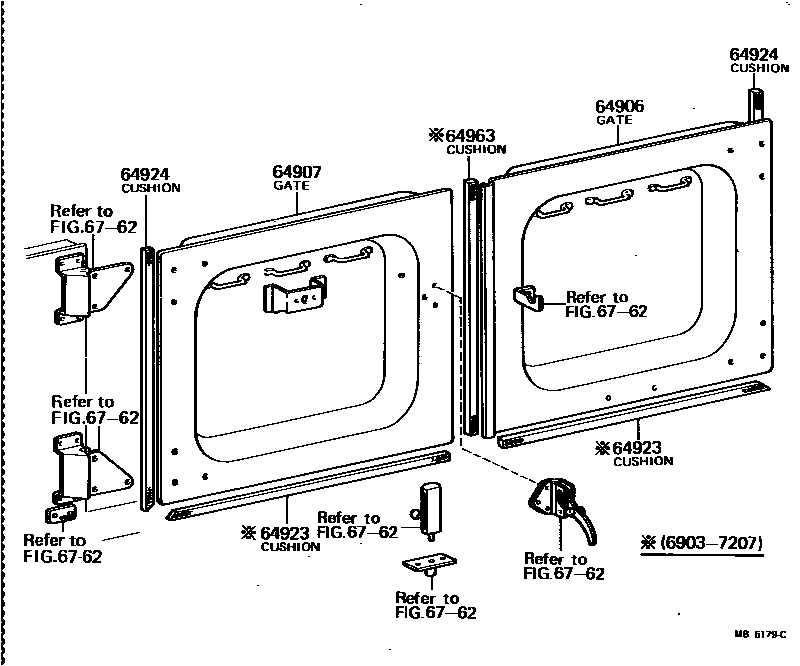

Parts diagram

64906GATE SUB-ASSY, REAR SWING, RH

main64905-60020i196903-197402

main64905-60030i197512-197608

FOR LARGE LICENSE PLATE

main64905-90301i197509-197608

main64905-90302i197402-197509

main64905-90303i197509-197608

main64905-90304i197402-197509

EUROPE SPEC.

main64905-90305i197608-198007

main64905-90306i197608-197901

main64905-90307i197901-198007

FOR LICENSE PLATE POSITION LH.

main64905-90308i197901-198007

FOR LICENSE PLATE POSITION LH.

main64905-90314i196903-197402

main64905-90315i196903-197509

64907GATE SUB-ASSY, REAR SWING, LH

main64906-60030i197509-197608

main64906-60040i196903-197402

main64906-90301i197402-197509

main64906-90302i197901-198007

FOR LICENSE PLATE POSITION LH.

main64906-90304i197512-197608

FOR LARGE LICENSE PLATE

main64906-90305i197512-197901

FOR LARGE LICENSE PLATE

main64906-90306i197901-198007

FOR LICENSE PLATE POSITION LH.

main64906-90307i197608-198007

FOR LARGE LICENSE PLATE

main64906-90308i197608-198007

main64906-90309i197901-198007

main64906-90314i197509-197901

main64906-90315i196903-197402

64923CUSHION, REAR DROP GATE, LOWER

main64923-60010i196903-197901

main64923-90300i197901-198007

main64962-90314×2i196903-198007

main64964-60010×2i196903-197207

64924CUSHION, REAR DROP GATE, SIDE

main64921-90300i197901-198007

RH.,LICENSE PLATE POSITION LH.

main64921-90301i197207-197901

RH.

main64922-60010i196903-197207

LH.

main64922-90300i197901-198007

LH.,LICENSE PLATE POSITION LH.

main64922-90301i197509-197901

LH.

main64922-90302×2i197901-198007

main64963-60010i196903-197207

RH.

main64963-90314×3i196903-198007

64963CUSHION, REAR SWING GATE, LOWER

main64962-60010i196903-197207

6762

6 parts on this diagram · 8 diagrams in section
