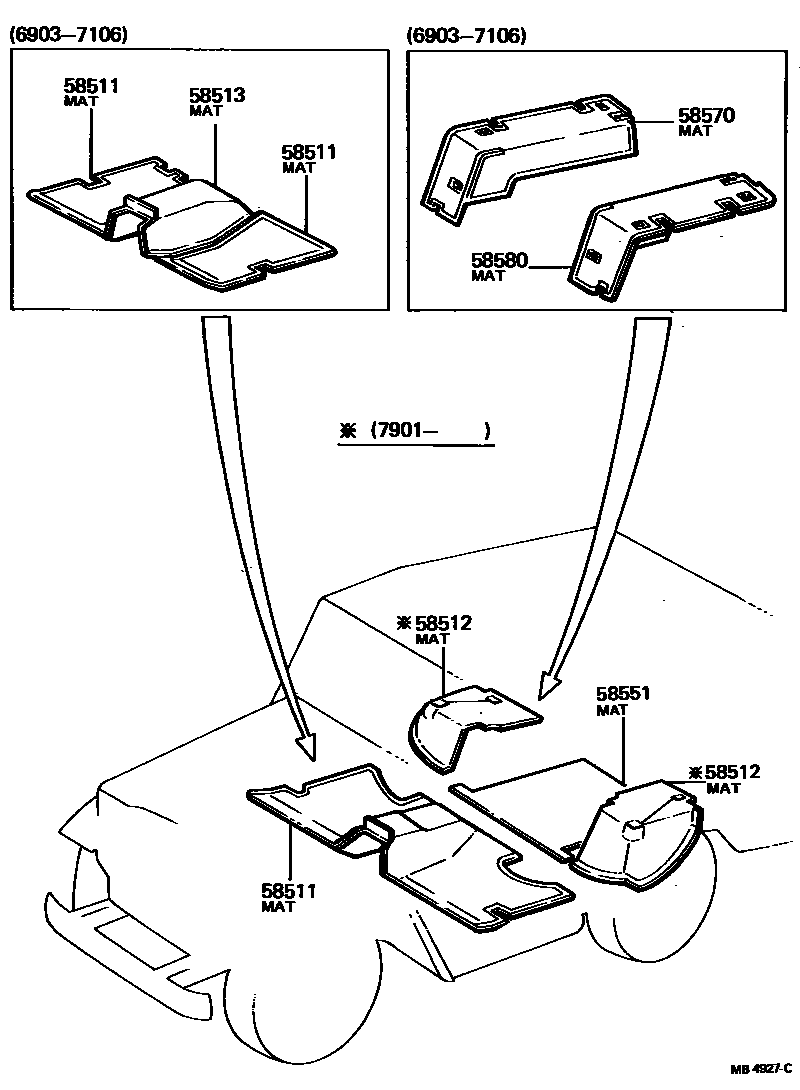

FLOOR MAT & SILENCER PAD

58511MAT, FLOOR, FRONT

main58510-60031i196903-197106

RH.

main58510-60040i196903-197106

RH.

main58510-60051i196903-197106

RH.

main58510-60060i196903-197106

RH.

main58510-90300i197901-198007

SWITZERLAND SPEC.

main58510-90301i197901-198007

W/WINCH,SWITZERLAND SPEC.

main58511-90070i197309-197501

3-SPEED

main58511-90072i197309-197501

4-SPEED

main58511-90074i197309-197407

3-SPEED

main58511-90076i197309-197407

4-SPEED

main58511-90078i197309-197407

4-SPEED

main58511-90082i197407-197501

3-SPEED

main58511-90084i197407-197501

4-SPEED

main58511-90086i197407-197501

4-SPEED

main58511-90088i197501-197901

main58511-90270i197501-197901

main58511-90272i197501-197901

main58511-90274i197501-197901

main58511-90276i197501-197901

4-SPEED

main58511-90278i197901-198007

main58511-90279i197901-198007

main58511-90280i197901-198007

main58511-90281i197901-198007

main58511-90282i197901-198007

W/WINCH

main58511-90283i197901-198007

W/WINCH

main58511-90300i197106-197209

3-SPEED

main58511-90301i197106-197209

3-SPEED,W/WINCH

main58511-90302i197106-197209

COLUMN SHIFT,FR.& RR. P.T.O.

main58511-90303i197106-197209

FLOOR SHIFT

main58511-90304i197106-197209

FLOOR SHIFT,W/WINCH

main58511-90305i197106-197209

FLOOR SHIFT,FR.& RR. P.T.O.

main58511-90306i197106-197109

main58511-90307i197106-197109

FR. P.T.O.

main58511-90308i197106-197109

FR.& RR. P.T.O.

main58511-90309i197106-197109

FLOOR SHIFT

main58511-90310i197106-197109

FLOOR SHIFT,FR. P.T.O.

main58511-90311i197106-197109

FLOOR SHIFT,FR.& RR. P.T.O.

main58511-90312i197109-197203

main58511-90313i197109-197203

FR. P.T.O.

main58511-90314i197109-197203

FR.& RR. P.T.O.

main58511-90315i197109-197203

FLOOR SHIFT

main58511-90316i197109-197203

FLOOR SHIFT,FR. P.T.O.

main58511-90317i197109-197203

FLOOR SHIFT,FR.& RR. P.T.O.

main58511-90322i197204-197209

main58511-90323i197204-197209

FR. P.T.O.

main58511-90324i197204-197209

FR.& RR. P.T.O.

main58511-90325i197204-197209

FLOOR SHIFT

main58511-90326i197204-197209

FLOOR SHIFT,FR. P.T.O.

main58511-90327i197204-197209

FLOOR SHIFT,FR.& RR. P.T.O.

main58511-90330i197209-197309

3-SPEED

main58511-90331i197209-197309

3-SPEED,W/WINCH

main58511-90332i197209-197306

4-SPEED

main58511-90333i197209-197306

4-SPEED,W/WINCH

main58511-90334i197209-197309

3-SPEED

main58511-90335i197209-197309

3-SPEED,W/WINCH

main58511-90336i197209-197306

4-SPEED

main58511-90337i197209-197306

4-SPEED,W/WINCH

main58511-90338i197204-197306

4-SPEED

main58511-90339i197204-197306

4-SPEED,W/WINCH

main58511-90340i197306-197309

4-SPEED

main58511-90341i197306-197309

4-SPEED,W/WINCH

main58511-90342i197306-197309

4-SPEED

main58511-90343i197306-197309

4-SPEED,W/WINCH

main58511-90344i197306-197309

4-SPEED

main58511-90345i197306-197309

4-SPEED,W/WINCH

main58511-90351i197105-197209

COLUMN SHIFT

main58511-90352i197105-197209

COLUMN SHIFT

main58511-90353i197105-197209

FLOOR SHIFT

main58511-90354i197105-197209

FLOOR SHIFT,W/WINCH

main58511-90355i197105-197209

4-SPEED

main58511-90356i197105-197209

4-SPEED,W/WINCH

main58511-90357i197209-197309

3-SPEED

main58511-90359i197209-197309

4-SPEED

main58511-90361i197309-197509

3-SPEED

main58511-90363i197309-197509

4-SPEED

main58511-90365i197509-197707

main58511-90366i197509-197707

main58511-90369i197707-197901

main58511-90370i197707-197901

main58511-90373i197901-198007

FOR HEAT COUNTERPLAN

main58511-90374i197901-198007

main58511-90375i197901-198007

main58511-90379i197901-198007

W/WINCH

main58520-60010i196903-197106

LH.

main58520-60020i196903-197106

LH.

main58520-60030i196903-197106

LH.

main58520-60040i196903-197106

LH.

main67830-90351i196903-197105

RH.

main67840-90351i196903-197105

LH.

58512MAT, SEAT FLOOR

main58512-90300i197901-198007

RH.

main58514-90300i197901-198007

LH.

58513MAT, TRANSMISSION COVER

main58530-60010i196903-197106

COLUMN SHIFT

main58530-60020i196903-197106

FLOOR SHIFT

main58530-60030i196903-197106

FLOOR SHIFT,W/WINCH

main58530-60040i196903-197106

COLUMN SHIFT,W/WINCH

main67820-90351i196903-197105

COLUMN SHIFT

main67820-90352i196903-197105

COLUMN SHIFT,W/WINCH

main67820-90353i196903-197105

FLOOR SHIFT

main67820-90354i196903-197105

FLOOR SHIFT,W/WINCH

main67820-90355i196903-197105

4-SPEED

main67820-90356i196903-197105

4-SPEED,W/WINCH

58551MAT, FLOOR, REAR

main58501-90302i197901-198007

main58501-90303i197901-198007

FOR W/REAR HEATER

main58550-60030i196903-197106

main58550-60040i196903-197106

FOR W/REAR HEATER

main58550-90312i196903-197009

main58550-90316i197009-197106

main58551-90300i197106-197901

sub58501-90300

main58551-90301i197106-197209

FOR W/REAR HEATER

main58551-90302i197209-197501

FOR W/REAR SEAT

main58551-90303i197106-197901

main58551-90304i197209-197901

FOR W/REAR HEATER

main58551-90305i197209-197501

FOR W/REAR SEAT

main58551-90306i197503-197901

FOR W/REAR HEATER

main58551-90308i197901-198007

main58551-90310i197901-198007

FOR W/REAR HEATER

main58551-90351i197105-197509

main58551-90352i197105-197509

FOR W/MIDDLE SEAT

main58551-90353i197105-197509

FOR W/MIDDLE SEAT

main58551-90354i197509-197707

main58551-90355i197509-197707

FOR W/MIDDLE SEAT

main58551-90356i197509-197707

FOR W/MIDDLE SEAT

main58551-90357i197707-197901

main58551-90358i197707-197901

FOR W/MIDDLE SEAT

main58551-90359i197707-197901

FOR W/MIDDLE SEAT

main58551-90360i197901-198007

FOR HEAT COUNTERPLAN

main58551-90361i197901-198007

main58551-90362i197901-198007

FOR W/MIDDLE SEAT

main58551-90363i197901-198007

FOR W/MIDDLE SEAT

main67850-90351i196903-197105

58570MAT ASSY, REAR FENDER APRON, RH

main58560-60010i196903-197106

58580MAT ASSY, REAR FENDER APRON, LH

main58570-60010i196903-197106

6 parts on this diagram · 2 diagrams in section
