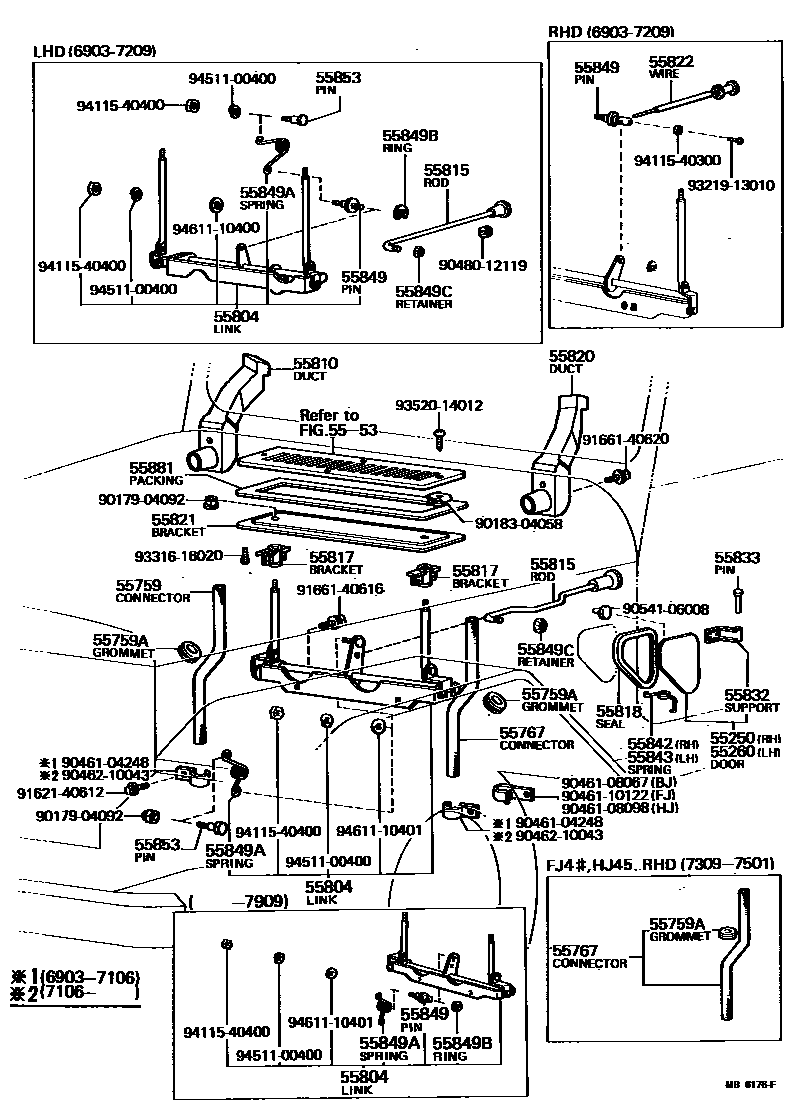

FRONT VENTILATOR

0001 1 0002 1 0003 1

55250DOOR ASSY, COWL SIDE VENTILATOR, RH

main55708-60011iBJ4#,FJ4#,HJ45¥4,600196903-198007

55260DOOR ASSY, COWL SIDE VENTILATOR, LH

main55709-60011iBJ4#,FJ4#,HJ45¥4,650196903-198007

5553

55759CONNECTOR, COWL VENTILATOR DRAIN HOSE

main55759-60011iFJ40,43,45,HJ45..RHD196903-197309

main55759-60020iFJ4#,HJ45..LHD¥2,520196903-197501

main55761-90300iFJ4#,HJ45¥2,560197402-198007

main55762-90301iBJ4#¥1,590197711-197901

sub55761-90300¥2,560

55759AGROMMET, COWL VENTILATOR DRAIN HOSE CONNECTOR

main90480-25125iFJ4#,HJ45¥250196903-197501

main90480-36481iBJ4#,FJ4#,HJ45197402-198007

55767CONNECTOR, COWL VENTILATOR DRAIN HOSE

main55705-90300iFJ4#,HJ45..RHD¥3,180197309-197501

main55761-90300iBJ4#¥2,560197711-197901

main55762-90300iBJ4#..RHD¥2,830197402-197711

sub55761-90300¥2,560

main55762-90301iFJ4#,HJ45¥1,590197501-198007

sub55761-90300¥2,560

main55767-60010iFJ40,43,45,HJ45..RHD196903-197309

main55767-60020iBJ4#,FJ4#,HJ45..LHD¥1,650196903-197501

55804LINK SUB-ASSY, COWL VENTILATOR DAMPER

main55802-60011iFJ40,43,45,HJ45..RHD196903-197209

main55802-60021iFJ4#,HJ45..LHD196903-197209

main55802-90300iBJ4#,FJ4#,HJ45197209-198007

55810DUCT ASSY, SIDE VENTILATOR, RH

main55810-20020iFJ55..RHD196903-197209

main61180-90351iFJ55197209-197901

main61180-90352iFJ55..ARL197805-198007

main87211-60110iFJ4#..LHD..EUR197608-198007

55815ROD, COWL VENTILATOR CONTROL

main55804-60010iFJ4#,HJ45..LHD196903-197209

main55804-90300iBJ4#,FJ4#,HJ45¥2,200197209-197901

sub55804-90301

main55804-90301iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN197901-198007

main55820-90351iFJ55..RHD196903-197209

main55820-90352iFJ55..LHD196903-197209

55817BRACKET, COWL VENTILATOR ROD

main55805-60010iBJ4#,FJ4#,HJ45196903-197610

sub55851-90300¥950

main55851-90300iBJ4#,FJ4#,HJ45¥950197610-198007

55818SEAL, SIDE VENTILATOR DUCT

main55786-60011iFJ4#¥990196903-197103

sub55786-90300¥990

sub55786-90310¥990

main55786-90300iBJ4#,FJ4#,HJ45¥990197103-197501

RH.

sub55786-90301¥950

main55786-90301iBJ4#,FJ4#,HJ45¥950197501-198007

main55786-90310iBJ4#,FJ4#,HJ45¥990197103-197501

LH.

sub55786-90301¥950

55820DUCT ASSY, SIDE VENTILATOR, LH

main55820-20010iFJ55..LHD196903-197209

main61190-90351iFJ55197209-197901

main61190-90352iFJ55..ARL197805-198007

main87211-60120iFJ4#..LHD..EUR197608-198007

55821BRACKET, COWL VENTILATOR

main55848-60010iBJ4#,FJ4#,HJ45¥1,010196903-197709

main55848-90300iBJ4#,FJ4#,HJ45¥850197709-198007

55822WIRE ASSY, COWL VENTILATOR

main55820-60010iFJ40,43,45,HJ45..RHD196903-197209

55832SUPPORT, FRONT VENTILATOR

main55784-60010iBJ4#,FJ4#,HJ45196903-198007

55833PIN, FRONT VENTILATOR SUPPORT

main90241-05002iBJ4#,FJ4#,HJ45¥640196903-198007

55842SPRING, FRONT VENTILATOR, RH

main55787-25010iBJ4#,FJ4#,HJ45¥370196903-197909

main90508-16028iBJ4#,FJ4#,HJ45¥260197909-198007

55843SPRING, FRONT VENTILATOR, LH

main55788-25010iBJ4#,FJ4#,HJ45¥370196903-197909

main90508-16029iBJ4#,FJ4#,HJ45¥260197909-198007

55849PIN, COWL VENTILATOR CONTROL WIRE

main55849-60011iFJ40,43,45,HJ45..RHD196903-197209

main55849-60021iFJ4#,HJ45..LHD196903-197909

55849ASPRING, TORSION(FOR COWL VENTILATOR CONTROL WIRE PIN)

main90508-18084iBJ4#,FJ4#,HJ45¥220196903-198007

55849BRING, E(FOR COWL VENTILATOR CONTROL WIRE PIN)

main90523-05006iFJ4#¥140196903-196911

main96160-00500iBJ4#,FJ4#,HJ45¥100196911-197909

55849CRETAINER, COWL VENTILATOR CONTROL WIRE PIN

main55925-30010iFJ4#,HJ45..LHD¥200196903-197901

sub90183-04072¥240

main90183-04072iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN¥240197901-198007

55853PIN,COWL VENTILATOR DAMPER SPRING

main55853-60011iBJ4#,FJ4#,HJ45196903-198007

55881PACKING, FRONT VENTILATOR

main55814-90351iFJ55196903-197209

main55881-60010iBJ4#,FJ4#,HJ45¥2,390196903-197709

main55881-90300iBJ4#,FJ4#,HJ45¥1,530197709-198007

9017904092

main90179-04092¥300

9018304058

main90183-04058¥160

9046104248

main90461-04248

9046108067

main90461-08067

9046108098

main90461-08098¥400

9046110122

main90461-10122

9046210043

main90462-10043¥600

9048012119

main90480-12119¥210

9054106008

main90541-06008¥230

9162140612

main91621-40612¥170

9166140616

main91661-40616¥80

9166140620

main91661-40620¥80

9321913010

main93219-13010¥80

9331616020

main93316-16020¥140

9352014012

main93520-14012¥170

9411540300

main94115-40300¥120

9411540400

main94115-40400¥240

9451100400

main94511-00400¥200

9461110400

main94611-10400¥110

9461110401

main94611-10401¥100

44 parts on this diagram · 3 diagrams in section
