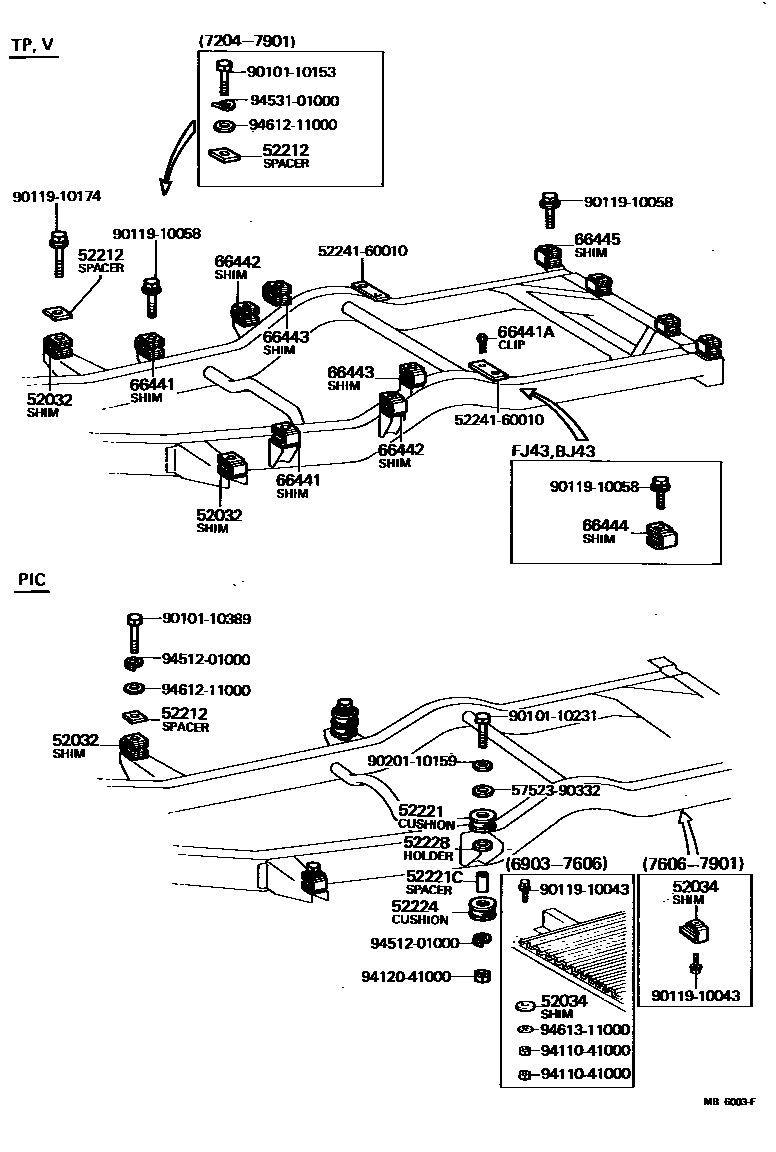

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1 0004 1

52032SHIM SUB-ASSY, COWL BODY MOUNTING

main52032-30010iBJ4#,FJ4#,HJ45196903-197612

sub52032-90300

main52032-90300iBJ4#,FJ4#,HJ45197612-197901

52034PLATE SUB-ASSY, DECK MOUNTING SHIM

main52034-90300iFJ45,HJ45..PIC197606-198007

sub52032-90801

sub90119-10242

sub90179-10015

sub94110-51000

main66441-90301iFJ45,HJ45196903-197606

sub90564-15142

52212SPACER, BODY MOUNTING

main52211-90351iFJ55197501-197606

main52211-90351iFJ55196903-197501

NO.1

main52211-90354iFJ55197606-198007

main52212-90310iBJ4#,FJ4#,HJ45197204-197901

T=10

main52212-90351iFJ55196903-197501

NO.2

main52216-90310iBJ4#,FJ40,43197204-197901

T=5.0

main52217-90310iBJ4#,FJ40,43197204-197901

T=15

main52231-90300iBJ4#,FJ4#,HJ45197901-198007

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52202-30010iFJ55196903-198007

main52203-35010iFJ45,HJ45..PIC196903-197901

main52203-90300iBJ4#,FJ4#,HJ45197901-198007

52221CSPACER(FOR BODY MOUNT NO.2 CUSHION)

main90440-16014iFJ45,HJ45..PIC196903-197901

main90560-12009iBJ4#,FJ4#,HJ45197901-198007

main90560-12231iFJ55196903-198007

52224CUSHION, BODY MOUNT, NO.2 LOWER

main52022-60010iFJ55196903-198007

main52204-35010iFJ45,HJ45..PIC196903-197901

main52204-90300iBJ4#,FJ4#,HJ45197901-198007

52228HOLDER, BODY MOUNT BOLT SPACER, NO.2

main52228-22010iFJ55197901-198007

main52228-30010iFJ55196903-197901

sub52228-22010

main52311-35010iFJ45,HJ45..PIC196903-197901

66441SHIM, MOUNTING, NO.1

main52033-30010iFJ40,42,43196903-197109

sub52033-90302

main52033-90301iBJ4#,FJ4#..TP,V197606-197901

main52033-90302iBJ4#,FJ40,42,43197109-197606

66441ACLIP, MOUNTING SHIM SET

main90467-11003iBJ40,FJ4#..TP,V196903-197901

66442SHIM, MOUNTING, NO.2

main52033-30010iFJ40,42,43196903-197109

sub52033-90302

main52033-90301iBJ4#,FJ4#..TP,V197606-197901

T=22.8

main52033-90302iBJ4#,FJ40,42,43197109-197606

T=22.8

main52033-90304iBJ4#,FJ4#..TP,V197305-197901

T=27.8

66443SHIM, MOUNTING, NO.3

main52033-30010iFJ40,42,43196903-197109

sub52033-90302

main52033-90301iBJ4#,FJ4#..TP,V197109-197901

main66443-95010iFJ45,HJ45..PIC197901-198007

sub66443-95020

66444SHIM, MOUNTING, NO.4

main52033-30010iFJ43196903-197109

sub52033-90302

main52033-90301iBJ43,FJ43197606-197901

main52033-90302iBJ43,FJ43197109-197606

66445SHIM, MOUNTING, REAR

main52033-30010iFJ40,42,43196903-197109

sub52033-90302

main52033-90301iBJ4#,FJ40,42,43..TPB,TPC,TPS,VLS197109-197612

main52033-90302iBJ40,FJ40..VKC197204-197606

main52033-90305iBJ40,FJ40,45..TP,V197612-197901

main52033-90306iBJ43,FJ43197612-197901

5224160010CUSHION, BODY MOUNT, NO.4 UPPER

main52241-60010

5752390332BRACE, CENTER FLOOR CROSSMEMBER

main57523-90332

9010110153

main90101-10153

9010110231

main90101-10231

9010110389

main90101-10389

9011910043

main90119-10043

9011910058

main90119-10058

9011910174

main90119-10174

9020110159

main90201-10159

9411041000

main94110-41000

9412041000

main94120-41000

9451201000

main94512-01000

9453101000

main94531-01000

9461211000

main94612-11000

9461311000

main94613-11000

28 parts on this diagram · 4 diagrams in section
