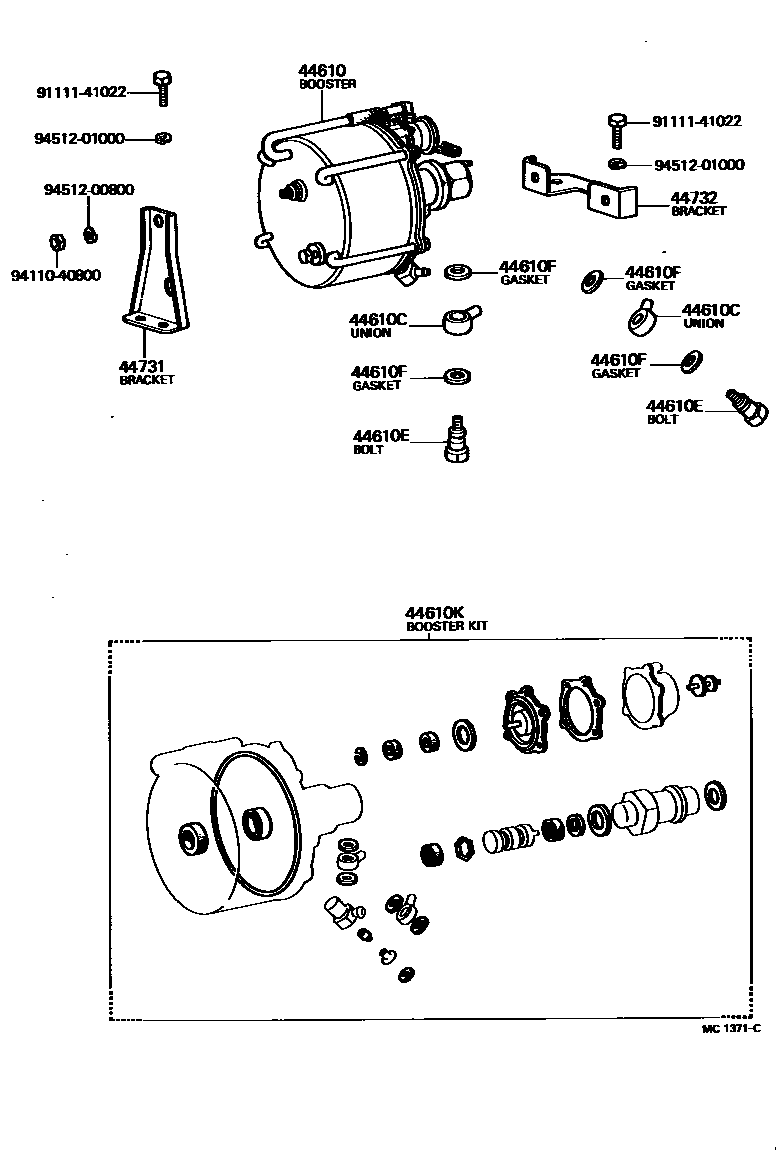

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0005 1 0007 1 0008 1 0009 1 0010 1 0012 1 0013 1 0014 1 0016 1 0017 1

44610BOOSTER ASSY, BRAKE

main44610-60010iFJ40,55..LHD197101-197109

main44610-60011iFJ40,55197109-197501

main44610-60020iFJ45197309-197501

main44610-60030iBJ4#,FJ4#,55,HJ45197501-198007

FOR FRONT DRUM BRAKE

main44610-60050iBJ4#,FJ40,43..LHD..GEN197909-198007

FOR FRONT DISC BRAKE

main44620-35010iFJ55..RHD196903-197109

44610CUNION, BOOSTER

main90405-10066iFJ55196903-197109

44610EBOLT, UNION(FOR BRAKE BOOSTER)

main90401-12032iFJ55..RHD196903-197109

44610FGASKET(FOR BRAKE BOOSTER)

main90430-12110iFJ55..RHD196903-197109

ID=12.1,OD=20.5

main90430-15112iFJ55196903-197109

ID=15.1,OD=20.5

44610KBOOSTER KIT, BRAKE

main04441-36011iFJ55196903-197109

main04441-60010iFJ40,43,55197101-197501

MINOR KIT

sub04443-60010

main04443-60010iFJ40,55..LHD197101-197109

MAJOR KIT

main04443-60011iFJ40,55197109-197501

MAJOR KIT

main04443-60020iFJ45197309-197501

MAJOR KIT

main04443-60030iBJ4#,FJ4#,55,HJ45197501-198007

FOR FRONT DRUM BRAKE

main04443-60040iBJ4#,FJ40,43..LHD..GEN197909-198007

FOR FRONT DISC BRAKE

44731BRACKET, BRAKE BOOSTER, FRONT

main44732-60010iFJ55196903-197109

44732BRACKET, BRAKE BOOSTER, REAR

main44731-60010iFJ55196903-197109

9111141022

main91111-41022

9411040800

main94110-40800

9451200800

main94512-00800

9451201000

main94512-01000

11 parts on this diagram · 12 diagrams in section
