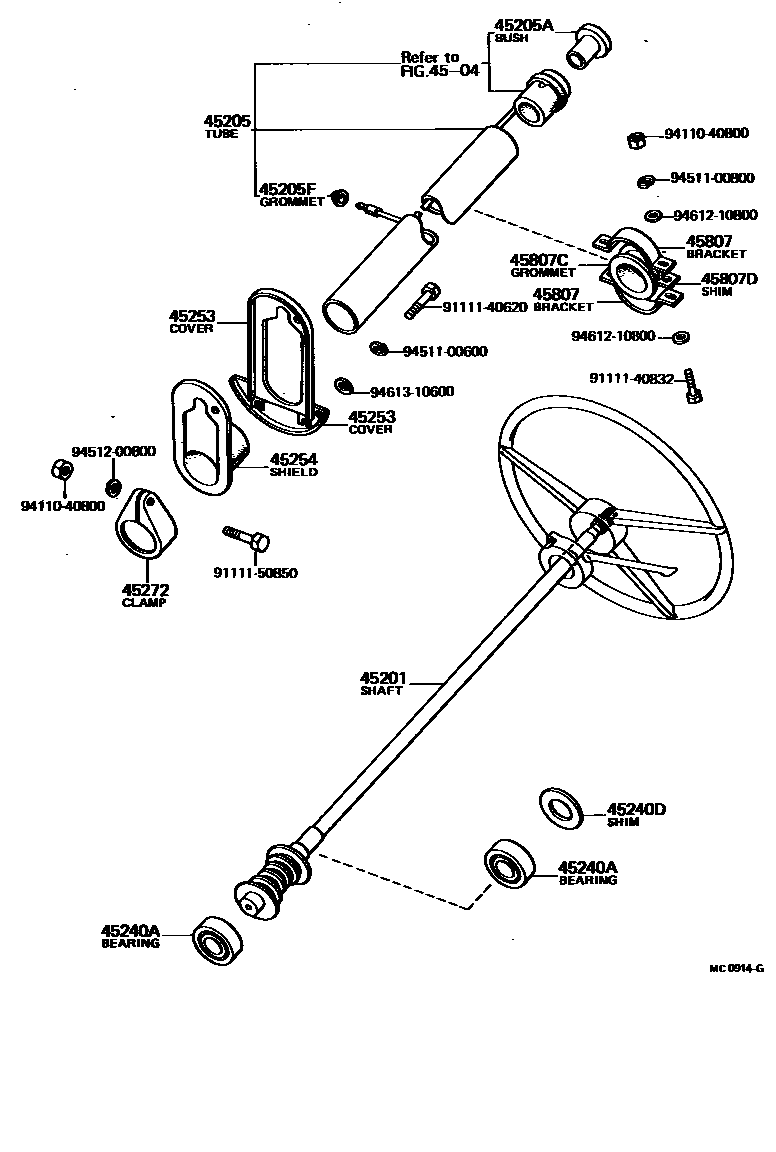

STEERING COLUMN & SHAFT
4504
45201SHAFT SUB-ASSY, STEERING MAIN
SPLINE N=36
SPLINE N=33
SPLINE N=36
SPLINE N=33
SPLINE N=36
SPLINE N=33
sub45201-60034
FOR COLAPSIBUL STEERING
FOR COLAPSIBUL STEERING
45205TUBE SUB-ASSY, STEERING COLUMN
FOR COLAPSIBUL STEERING
FOR COLAPSIBUL STEERING
45205ABUSH(FOR STEERING COLUMN TUBE)
45205FGROMMET, STEERING COLUMN
45240DSHIM(FOR STEERING WORM BEARING ADJUST)
T=0.5
T=0.2
T=0.1
45253COVER, STEERING COLUMN HOLE
FOR COLUMN SHIFT
FOR COLUMN SHIFT
FOR FLOOR SHIFT
FOR FLOOR SHIFT
UPPER
LOWER
45254SHIELD, STEERING COLUMN HOLE
FOR COLUMN SHIFT
FOR FLOOR SHIFT
45272CLAMP, STEERING COLUMN, LOWER
FOR COLAPSIBUL STEERING
45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
FOR COLAPSIBUL STEERING
FOR COLAPSIBUL STEERING
UPPER.FOR SINGLE M/C
UPPER.FOR TANDEM M/C
UPPER
UPPER,FOR SINGLE M/C
UPPER
UPPER,FOR TANDEM M/C
LOWER,FOR SINGLE M/C
LOWER,FOR TANDEM M/C
LOWER
LOWER,FOR SINGLE M/C
LOWER,FOR TANDEM M/C
LOWER
45807CGROMMET(FOR STEERING COLUMN CLAMP)
45807DSHIM, STEERING COLUMN CLAMP
9111140620
main91111-40620
9111140832
main91111-40832
9111150850
main91111-50850
9411040800
main94110-40800
9451100600
main94511-00600
9451100800
main94511-00800
9451200800
main94512-00800
9461210800
main94612-10800
9461310600
main94613-10600
23 parts on this diagram · 14 diagrams in section
